Chapter 1 1-17
Installing Your Analyzer
STEP 4. Configure the Analyzer
To Attach Front Handles to the Analyzer (Standard)
1. Ensure that the front handle kit is complete.
NOTE: If any items are damaged or missing
from the kit, contact the nearest Agilent
Technologies sales or service office to order a
replacement kit. Items within the kit (handles,
flanges, screws, etc.) are not individually
available.
2. Remove the side trim strips.
• (2) front handles
• (6) screws
• (2) trim strips

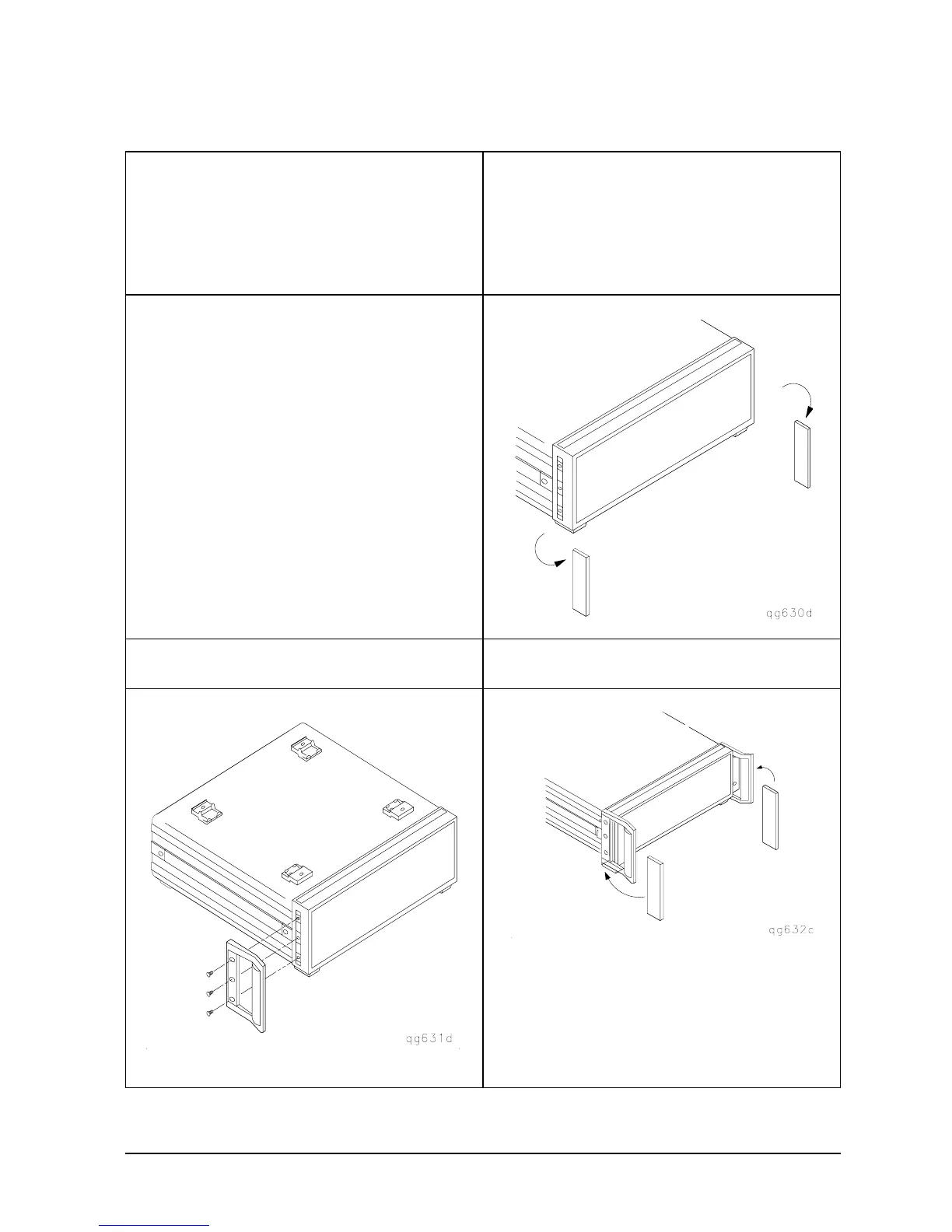

3. Attach the handles to the sides of the front
panel, using three screws for each handle.
4. Place the new trim strip over the screws on
the handles.
WARNING: If an instrument handle is
damaged, you should replace it
immediately. Damaged handles can break
while you are moving or lifting the
instrument and cause personal injury or
damage to the instrument.
To Next Page
