Agilent Technologies E3614A User Manual

1-10-7

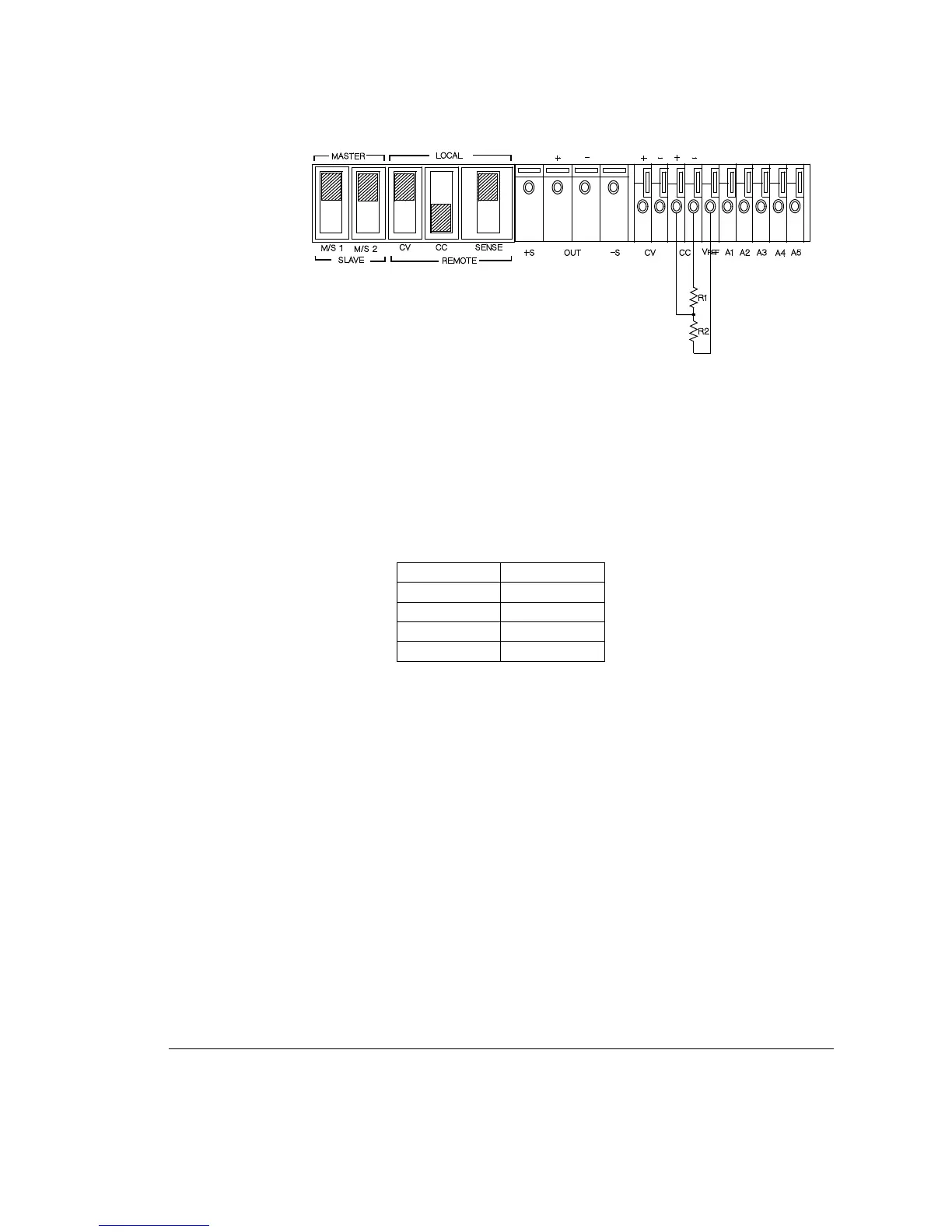

Remote Resistor Programming, Constant Current
Figure 8
Set the CC switch down on the rear panel, and all others up.
I
out
= A x [V
REF
x {R/(R + R2 + 100)}]
Where I
out
is the power supply output current.
A is the gain factor and the values of each model are as below.
V
REF
is between 10.11 V and 11.40 V.
R = (92800 x R1)/(92800 + R1)
R1 + R2>> 40 kohm
Model A
E3614A 0.6
E3515A 0.3
E3616A 0.17
E3617A 0.1
