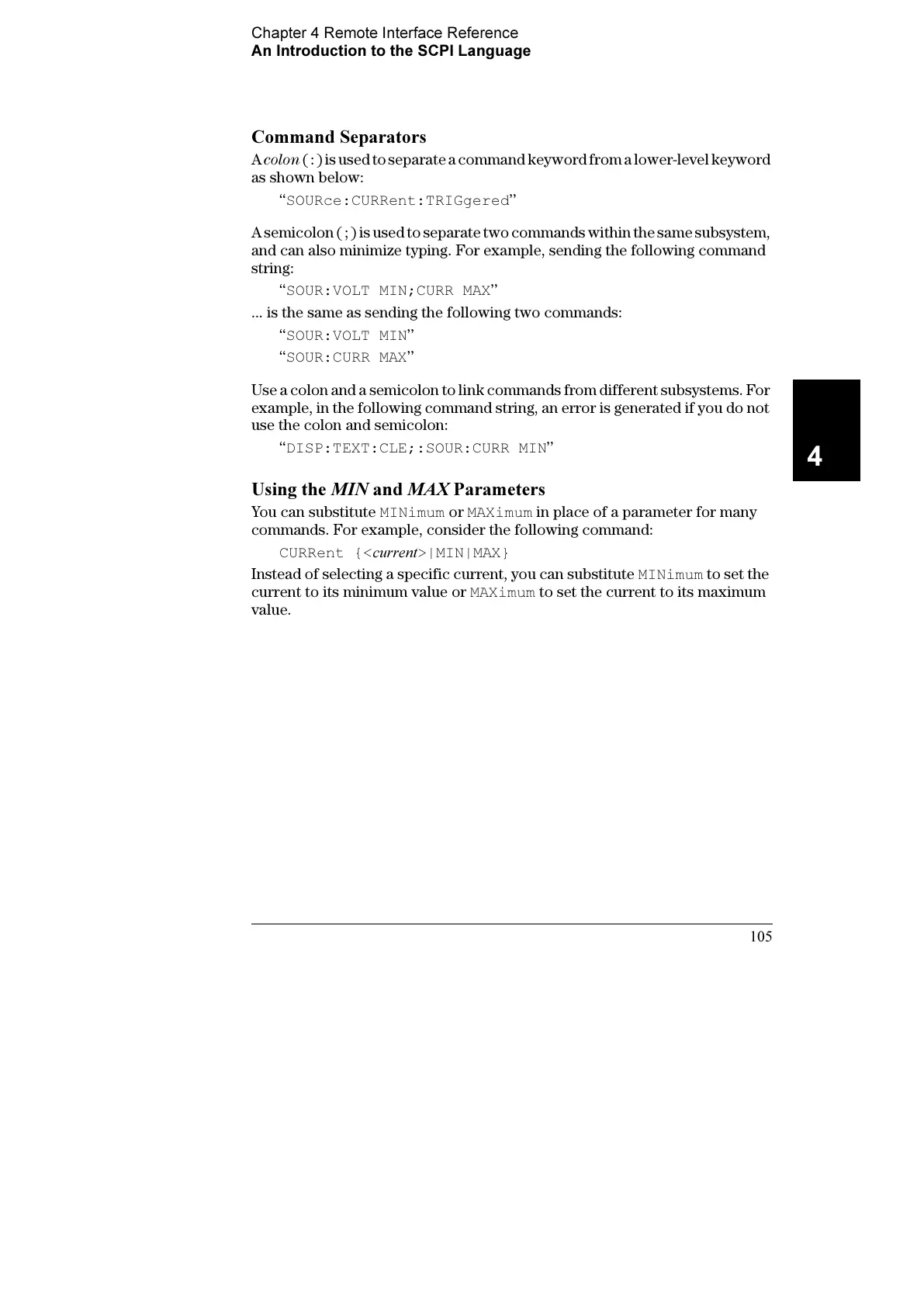

Chapter 4 Remote Interface Reference
An Introduction to the SCPI Language
105
4
Command Separators
A colon ( : ) is used to separate a command keyword from a lower-level keyword
as shown below:
ā€˜ā€˜
SOURce:CURRent:TRIGgered
’’
A semicolon ( ; ) is used to separate two commands within the same subsystem,
and can also minimize typing. For example, sending the following command
string:
ā€˜ā€˜
SOUR:VOLT MIN;CURR MAX
’’
... is the same as sending the following two commands:
ā€˜ā€˜
SOUR:VOLT MIN
’’
ā€˜ā€˜
SOUR:CURR MAX
’’
Use a colon and a semicolon to link commands from different subsystems. For
example, in the following command string, an error is generated if you do not
use the colon and semicolon:
ā€˜ā€˜
DISP:TEXT:CLE;:SOUR:CURR MIN
’’
Using the MIN and MAX Parameters
You can substitute
MINimum
or
MAXimum
in place of a parameter for many
commands. For example, consider the following command:
CURRent {<current>|MIN|MAX}
Instead of selecting a specific current, you can substitute
MINimum
to set the
current to its minimum value or
MAXimum
to set the current to its maximum
value.
