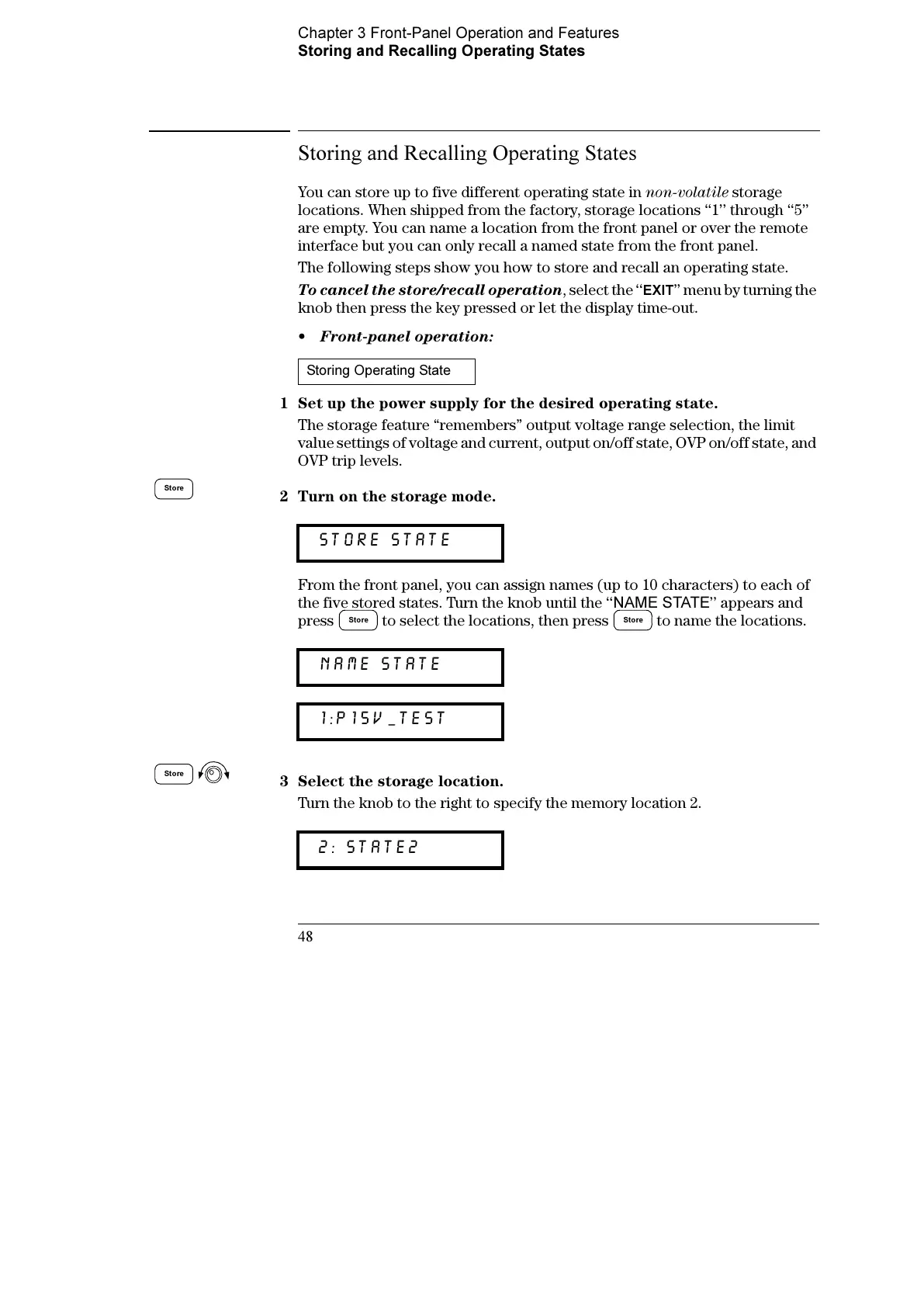

Chapter 3 Front-Panel Operation and Features
Storing and Recalling Operating States
48
Storing and Recalling Operating States
You can store up to five different operating state in non-volatile storage
locations. When shipped from the factory, storage locations ‘‘1’’ through ‘‘5’’
are empty. You can name a location from the front panel or over the remote
interface but you can only recall a named state from the front panel.
The following steps show you how to store and recall an operating state.
To cancel the store/recall operation, select the ‘‘
EXIT’’ menu by turning the
knob then press the key pressed or let the display time-out.
• Front-panel operation:
1 Set up the power supply for the desired operating state.
The storage feature “remembers” output voltage range selection, the limit
value settings of voltage and current, output on/off state, OVP on/off state, and
OVP trip levels.
2 Turn on the storage mode.
From the front panel, you can assign names (up to 10 characters) to each of
the five stored states. Turn the knob until the ‘‘
NAME STATE
’’ appears and
press to select the locations, then press to name the locations.
3 Select the storage location.
Turn the knob to the right to specify the memory location 2.
Storing Operating State
STORE STATE
Name STATE
1:p15v_test
2: STatE2
Store
Store Store
Store
