Appendix Service Information
General Calibration/Adjustment Procedure
184

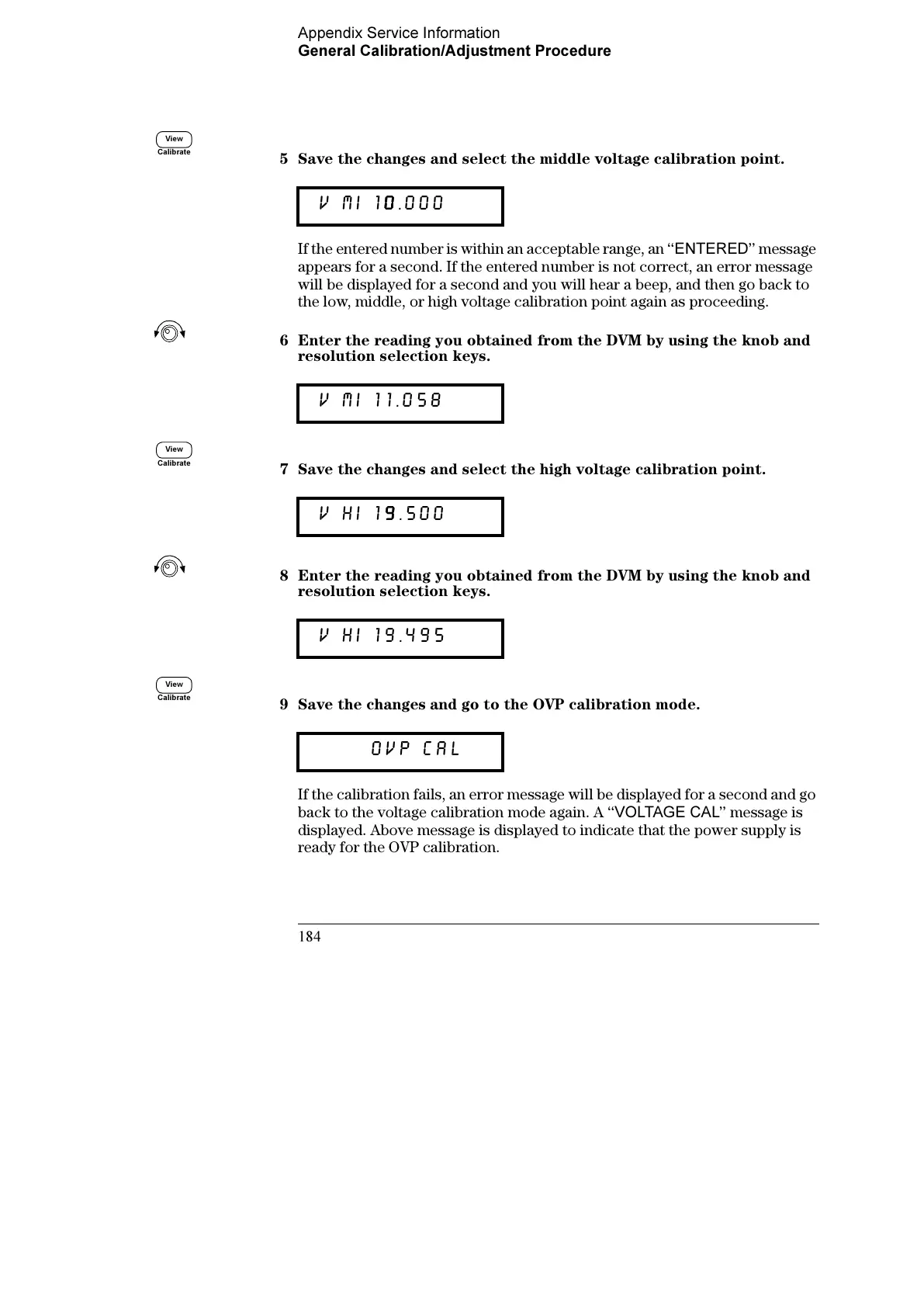

5 Save the changes and select the middle voltage calibration point.
If the entered number is within an acceptable range, an ‘‘
ENTERED
’’ message
appears for a second. If the entered number is not correct, an error message
will be displayed for a second and you will hear a beep, and then go back to
the low, middle, or high voltage calibration point again as proceeding.
6 Enter the reading you obtained from the DVM by using the knob and
resolution selection keys.
7 Save the changes and select the high voltage calibration point.
8 Enter the reading you obtained from the DVM by using the knob and
resolution selection keys.
9 Save the changes and go to the OVP calibration mode.
If the calibration fails, an error message will be displayed for a second and go
back to the voltage calibration mode again. A ‘‘
VOLTAGE CAL
’’ message is
displayed. Above message is displayed to indicate that the power supply is
ready for the OVP calibration.
V MI 10
00
0.000
V MI 11.058
V HI 19
99
9.500
V HI 19.495
ovp cal
Calibrate
View
Calibrate
View
Calibrate
View
