Appendix Service Information
Replaceable Parts
190

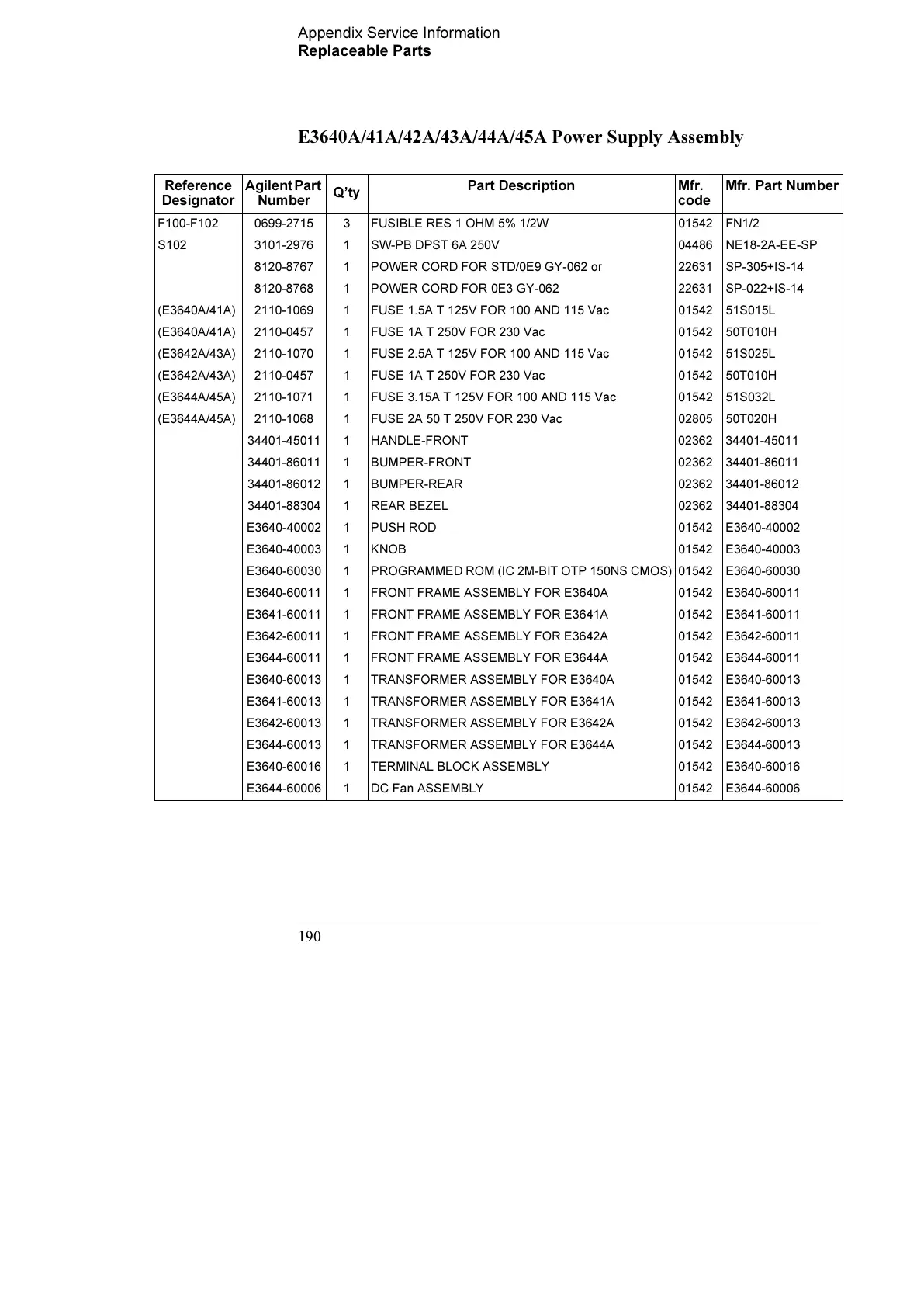

E3640A/41A/42A/43A/44A/45A Power Supply Assembly
Reference
Designator
Agilent Part
Number
Q’ty
Part Description Mfr.
code
Mfr. Part Number
F100-F102 0699-2715 3 FUSIBLE RES 1 OHM 5% 1/2W 01542 FN1/2
S102 3101-2976 1 SW-PB DPST 6A 250V 04486 NE18-2A-EE-SP
8120-8767 1 POWER CORD FOR STD/0E9 GY-062 or 22631 SP-305+IS-14
8120-8768 1 POWER CORD FOR 0E3 GY-062 22631 SP-022+IS-14
(E3640A/41A) 2110-1069 1 FUSE 1.5A T 125V FOR 100 AND 115 Vac 01542 51S015L
(E3640A/41A) 2110-0457 1 FUSE 1A T 250V FOR 230 Vac 01542 50T010H
(E3642A/43A) 2110-1070 1 FUSE 2.5A T 125V FOR 100 AND 115 Vac 01542 51S025L
(E3642A/43A) 2110-0457 1 FUSE 1A T 250V FOR 230 Vac 01542 50T010H
(E3644A/45A) 2110-1071 1 FUSE 3.15A T 125V FOR 100 AND 115 Vac 01542 51S032L
(E3644A/45A) 2110-1068 1 FUSE 2A 50 T 250V FOR 230 Vac 02805 50T020H
34401-45011 1 HANDLE-FRONT 02362 34401-45011
34401-86011 1 BUMPER-FRONT 02362 34401-86011
34401-86012 1 BUMPER-REAR 02362 34401-86012
34401-88304 1 REAR BEZEL 02362 34401-88304
E3640-40002 1 PUSH ROD 01542 E3640-40002
E3640-40003 1 KNOB 01542 E3640-40003
E3640-60030 1 PROGRAMMED ROM (IC 2M-BIT OTP 150NS CMOS) 01542 E3640-60030
E3640-60011 1 FRONT FRAME ASSEMBLY FOR E3640A 01542 E3640-60011
E3641-60011 1 FRONT FRAME ASSEMBLY FOR E3641A 01542 E3641-60011
E3642-60011 1 FRONT FRAME ASSEMBLY FOR E3642A 01542 E3642-60011
E3644-60011 1 FRONT FRAME ASSEMBLY FOR E3644A 01542 E3644-60011
E3640-60013 1 TRANSFORMER ASSEMBLY FOR E3640A 01542 E3640-60013
E3641-60013 1 TRANSFORMER ASSEMBLY FOR E3641A 01542 E3641-60013
E3642-60013 1 TRANSFORMER ASSEMBLY FOR E3642A 01542 E3642-60013
E3644-60013 1 TRANSFORMER ASSEMBLY FOR E3644A 01542 E3644-60013
E3640-60016 1 TERMINAL BLOCK ASSEMBLY 01542 E3640-60016
E3644-60006 1 DC Fan ASSEMBLY 01542 E3644-60006
