Getting Started Rear Panel Connections
26 EPM-P Installation Guide

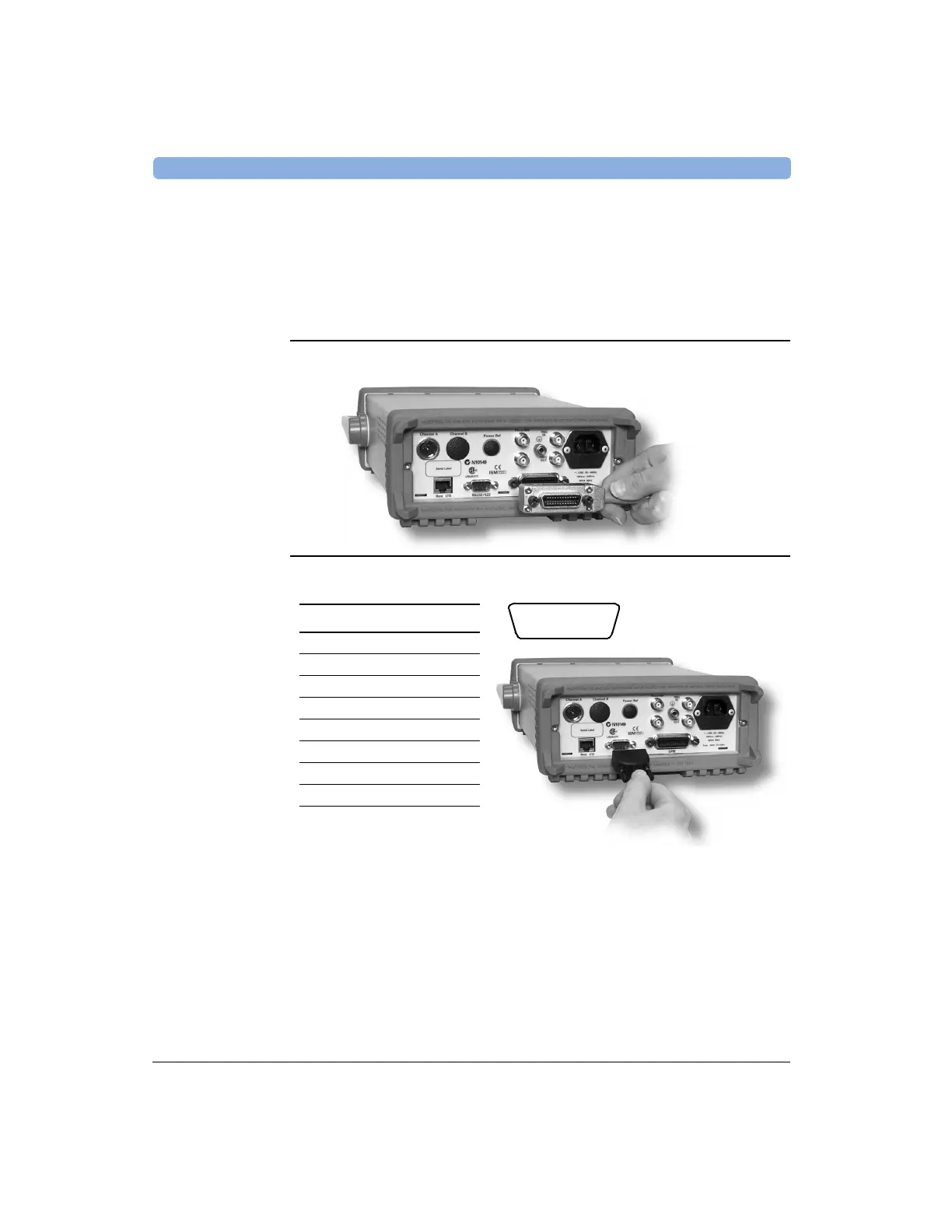

Rear Panel Connections
The following connections are available on the rear panel. To setup the remote
interfaces, refer to
Remote Interface Configurations on page 28.
1. GPIB
2. RS232 and RS422
Pin RS232 RS422
1 DCD CTS-
2Rx Rx-
3Tx Tx+
4DTR Tx-
5 GND GND
6DSR Rx+
7RTS RTS+
8CTS CTS+
9RI RTS-
1 2 3 4 5
6 7 8 9
