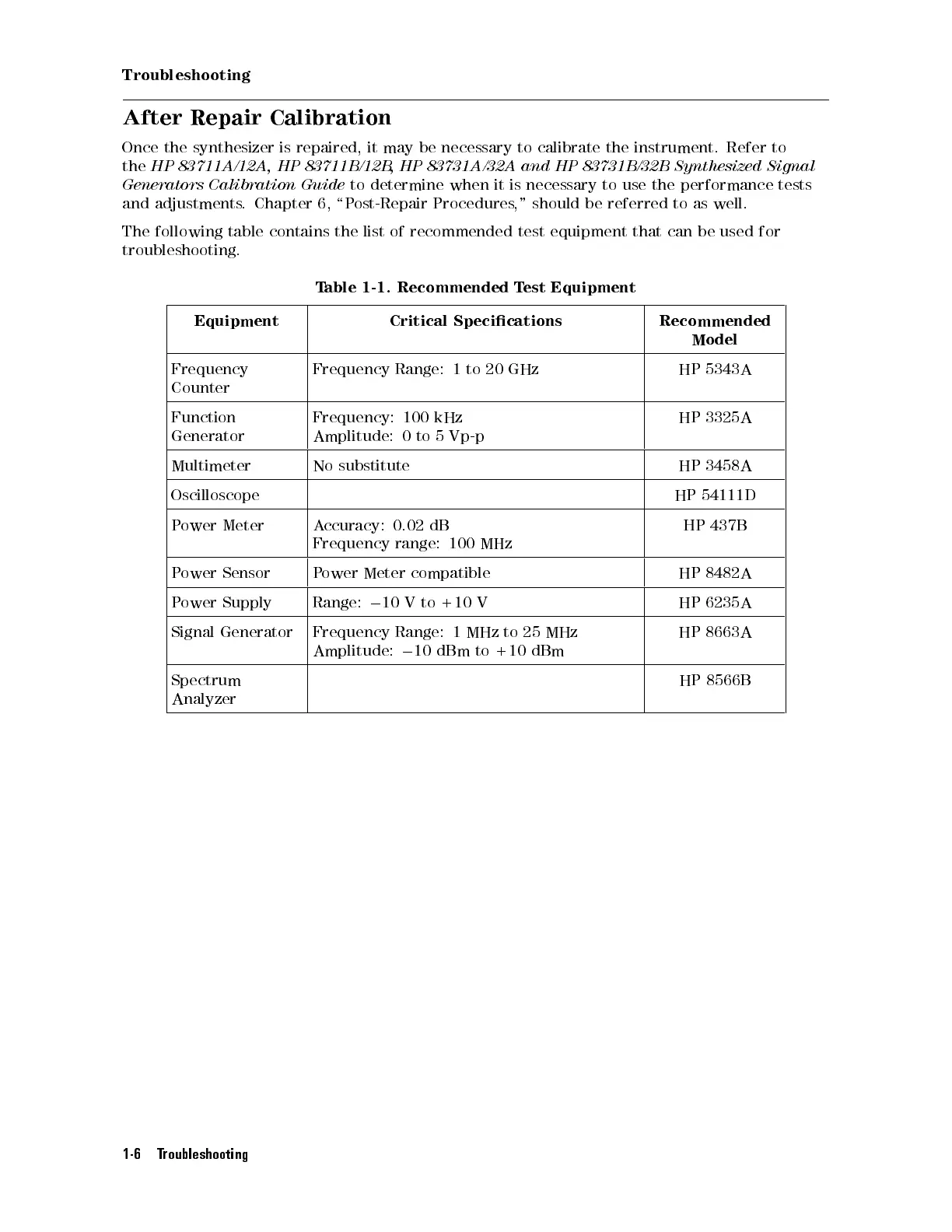

Troubleshooting
After
Repair
Calibration
Once
the
synthesizer
is
repaired,
it
may be
necessary to
calibrate the
instrument. Refer
to
the
HP
83711A/12A,
HP
83711B/12B
,
HP
83731A/32A
and HP
83731B/32B Synthesized
Signal
Generators
Calibration
Guide
to
determine
when
it
is
necessary to
use the
performance tests
and
adjustments
.
Chapter
6,
\P
ost-Repair
Procedures
," should
be referred
to as
well.
The
following
table
contains
the
list
of recommended
test equipment
that can
be used
for
troubleshooting.
T
able
1-1.
Recommended
T
est
Equipment
Equipment Critical
Specications
Recommended
Model
Frequency
Counter
Frequency
Range:
1
to
20
GHz
HP
5343A
Function
Generator
Frequency:
100
kHz
Amplitude:
0
to
5
Vp-p
HP
3325A
Multimeter No
substitute
HP
3458A
Oscilloscope HP
54111D
P
ower
Meter
A
ccuracy:
0.02
dB
Frequency
range: 100
MHz
HP
437B
P
ower
Sensor
P
ower
Meter
compatible
HP
8482A
P
ower Supply
Range:
0 10
V
to
+10
V
HP
6235A
Signal
Generator
Frequency
Range:
1
MHz
to
25
MHz
Amplitude:
0
10
dBm
to
+10
dBm
HP
8663A
Spectrum
Analyzer
HP
8566B
1-6 Troubleshooting
