Page 3 of 14 MSO8104A-05A

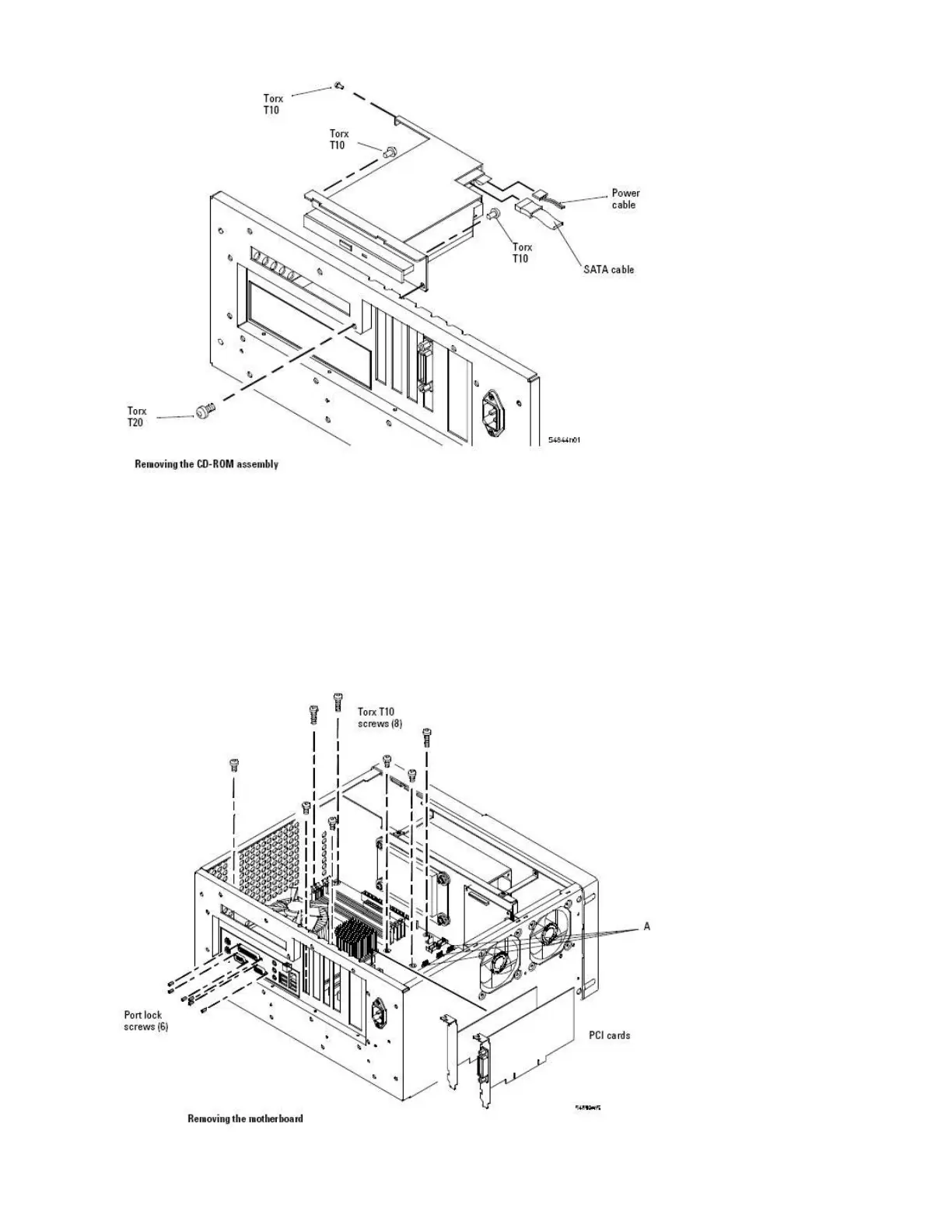

Figure 1
7 Remove all cables from the PCI cards.
8 Remove all PCI cards from the motherboard.
9 Disconnect all cables from the motherboard.
10 Remove the six 5 mm port lock screws from the rear panel connectors.
11 Remove the 5 short and 3 long Torx T10 screws holding the motherboard to the ATX tray.
12 Remove the 8 T20 screws holding the tray to the rear panel.
13 Remove the 3 T10 screws holding the filler plate to rear panel and tray.
Figure 2
