Page 6 of 14 MSO8104A-05A

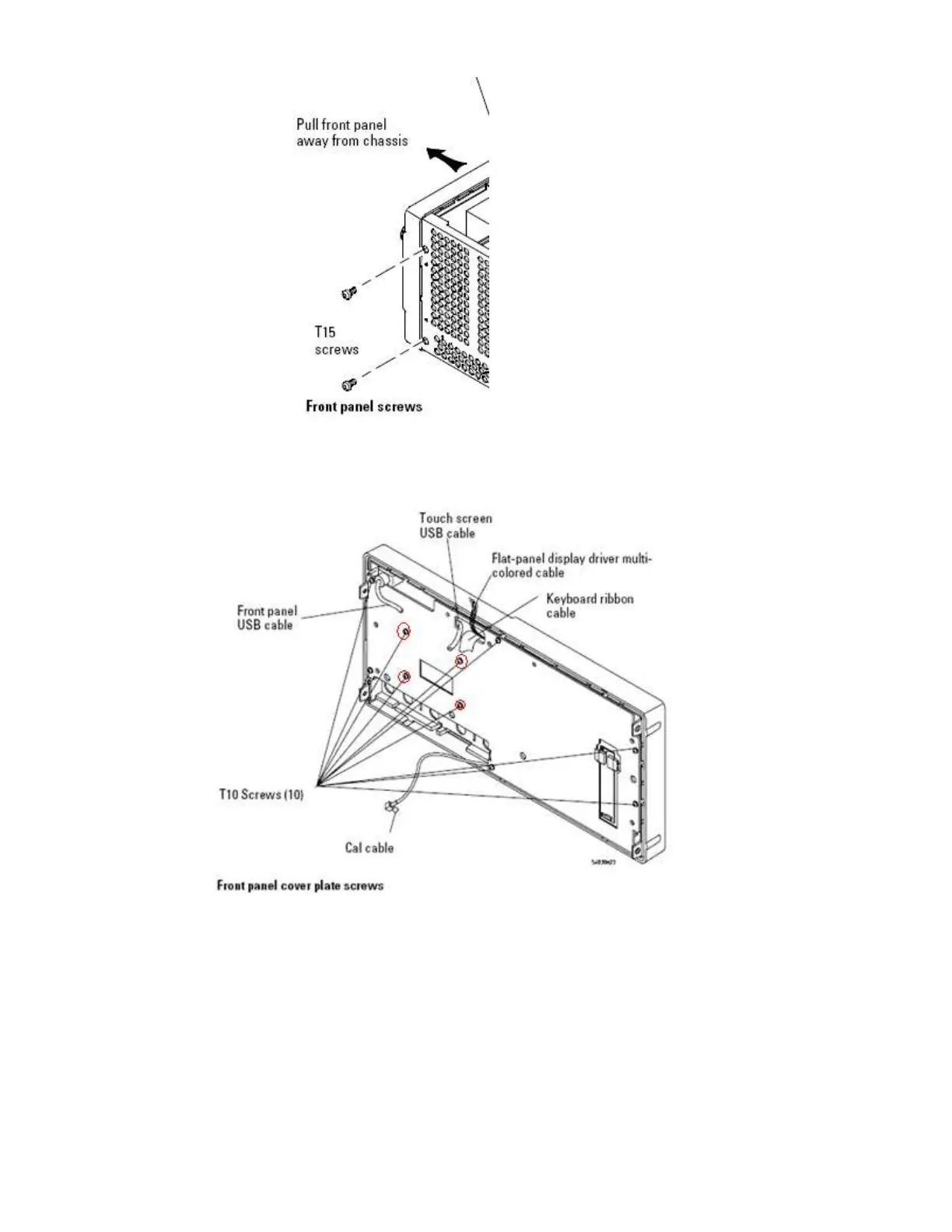

Figure 8

20 Remove the ten Torx T10 screws that secure the front panel cover plate to the front casting.

The four screws in circled in red are longer be sure to re-assemble correctly.

Figure 9

21 Turn front panel cover plate over and Remove the Touch Screen cable D8104-61604 and

replace with D8104-61609. Route new cable though the hole. Secure with tape (see figure 10)
