Page 7 of 14 MSO8104A-05A
Figure 10
22 Turn front panel cover plate back over and re-assemble. When re-assembling, torque the ten
Torx T10 screws to 5 in-lb.

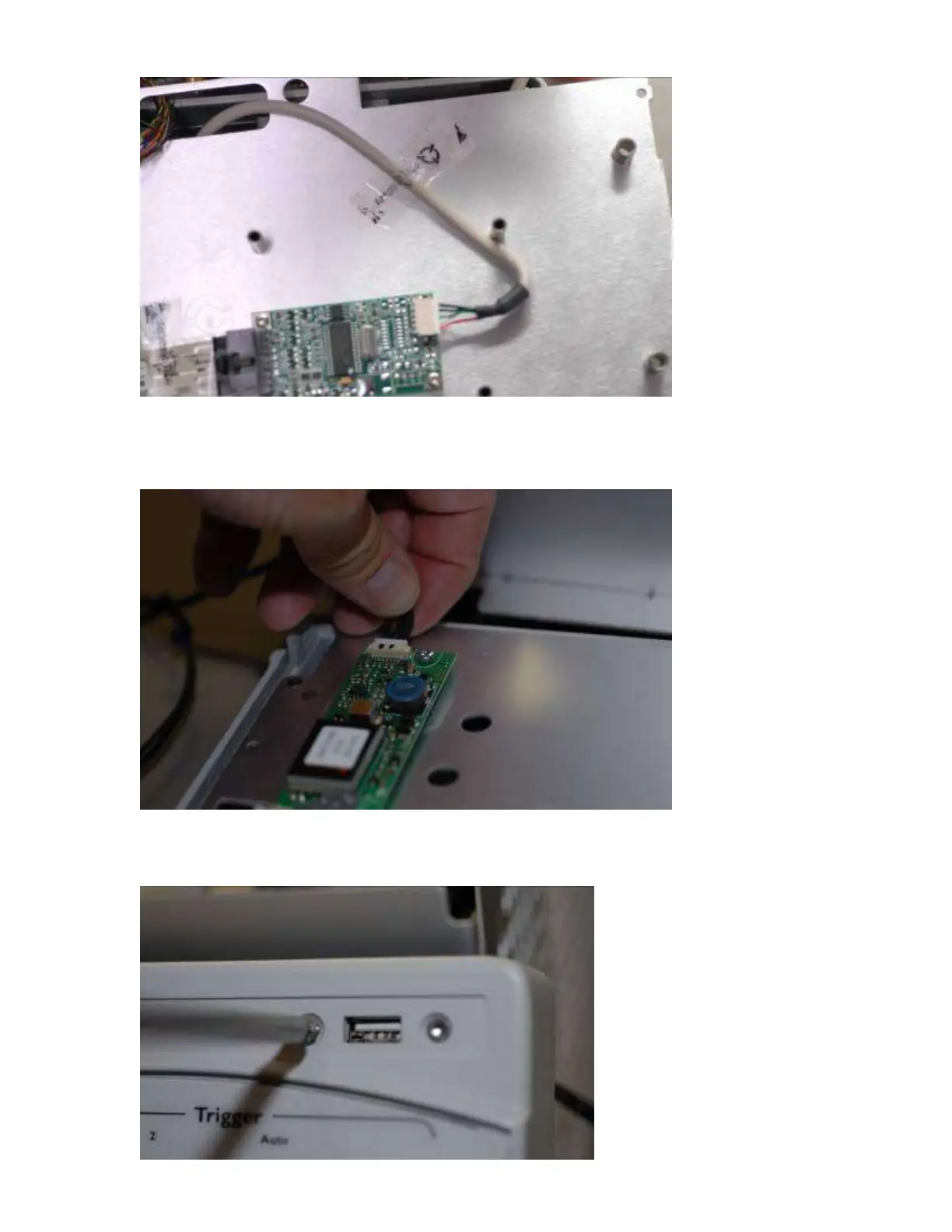

23 Remove old Back Light cable D8104-61605 and replace with D8104-61607.
See Figure 11
Figure 11
24 Remove the Front Panel USB cover label remove two T10 screws and replace the old USB
cable D8104-61602 with new D8104-61608. Install New USB Cover Label D8104-94302 (See
figure12)
