Getting Started 1
N1913/1914A Installation Guide 15

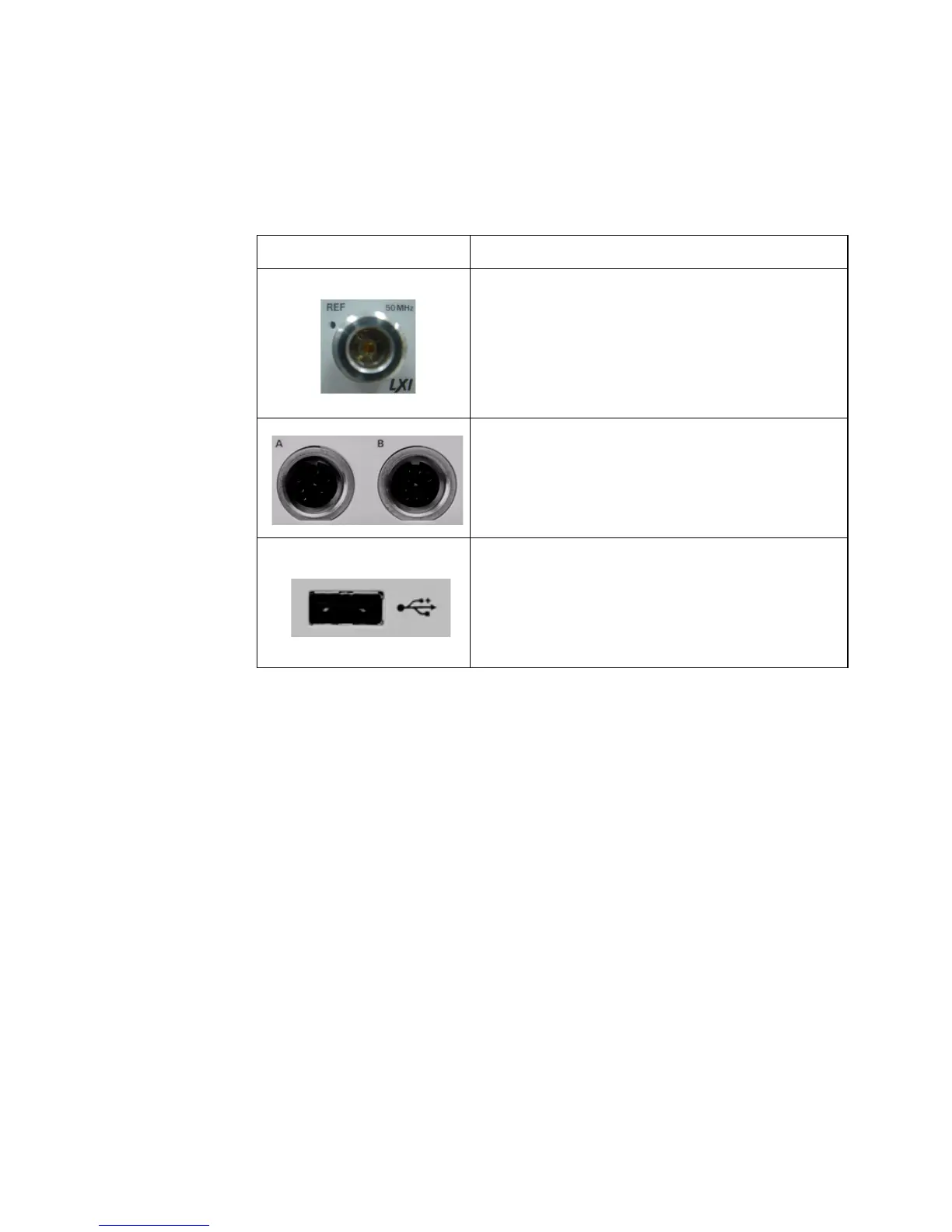

Connector Function
The power reference is a 1mW (0dBm) 50MHz signal
available from a 50 W type-N connector. It is used for
calibrating an 8480 or E-Series Power Sensor and Meter
system. If the meter is configured with Option 003, the
connector is fitted to the rear panel. The green LED
beside the connector is lit when the calibrator is turned
on.
The sensor input connectors (N1914A shown, the
N1913A has one input). If the meter is configured with
Option 003, the connectors are fitted to the rear panel
and the front panel connectors are retained.
The USB Type A port is solely for U2000 Series power
sensors usage only. If the meter is configured with
Option 008, one USB Type A port is fitted to the front
panel and another Type A port to the rear panel. If the
meter is configured with Option 009, two USB Type A
ports are fitted to the rear panel.
