260 Agilent N518xA, E8663B, E44x8C, and E82x7D Signal Generators Programming Guide
Creating and Downloading Waveform Files
Programming Examples
[status, status_description] = agt_sendcommand(io, 'SOURce:FREQuency 20000000000');
[status, status_description] = agt_sendcommand(io, 'POWer 0');
% define the ARB sample clock for playback
sampclk = 40000000;
% download the iq waveform to the PSG baseband generator for playback
[status, status_description] = agt_waveformload(io, IQData, 'pulsepat', sampclk, 'play', 'no_normscale',
Markers);
% turn on RF output power
[status, status_description ] = agt_sendcommand( io, 'OUTPut:STATe ON' )
You can test your program by performing a simulated plot of the in-phase modulation signal in
Matlab (see Figure 5- 2 on page 260). To do this, enter plot (i) at the Matlab command prompt.

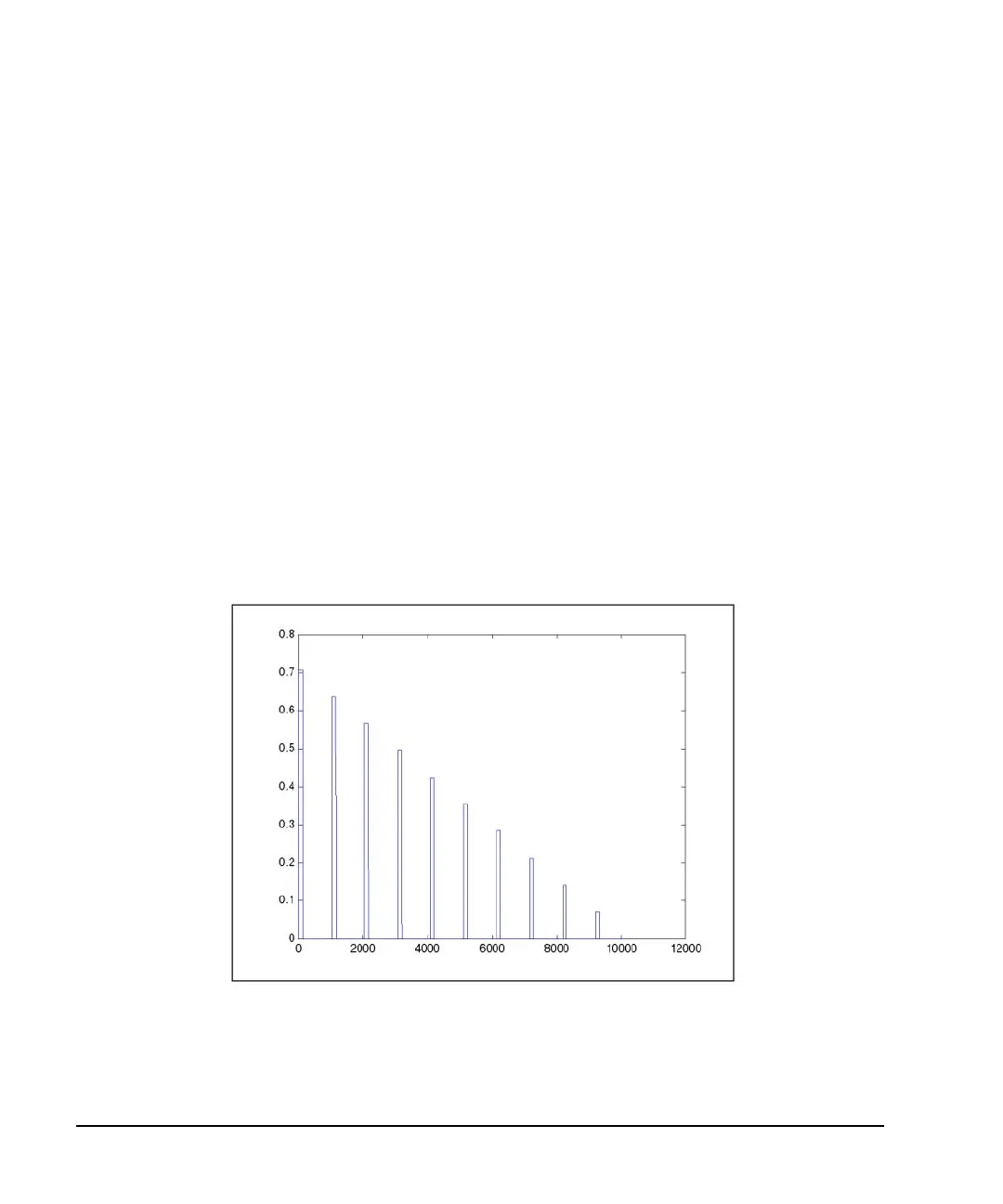

Figure 5-2 Simulated Plot of In-Phase Signal
The following additional Matlab M- file pulse programming examples are also available on the
Documentation CD- ROM for your Agilent MXG and PSG signal generator:
