Agilent Technologies PlateLoc Quick Guide

11
Getting started
G5585B PlateLocThermal Microplate Sealer Quick Guide
8 Hold the seal-loading card at the touchscreen level, keeping the tension on the
card.
9 On the touchscreen Home page , press Run. Continue to keep the tension on
the card as the seal feeds through the PlateLoc Sealer.
The purpose of this seal cycle is to cut the seal and prepare it for use. The seal is
not applied to the spare microplate.
10 If an error displays on the touchscreen, press Clear to clear the error. Press Run
again to make sure that the seal will apply to the spare microplate.
Unloading procedure
To unload a roll of seal:
1 Power cycle the PlateLoc Sealer by turning off and turning on the device.
Power cycling resets the components inside the device and removes the hold on
the seal.

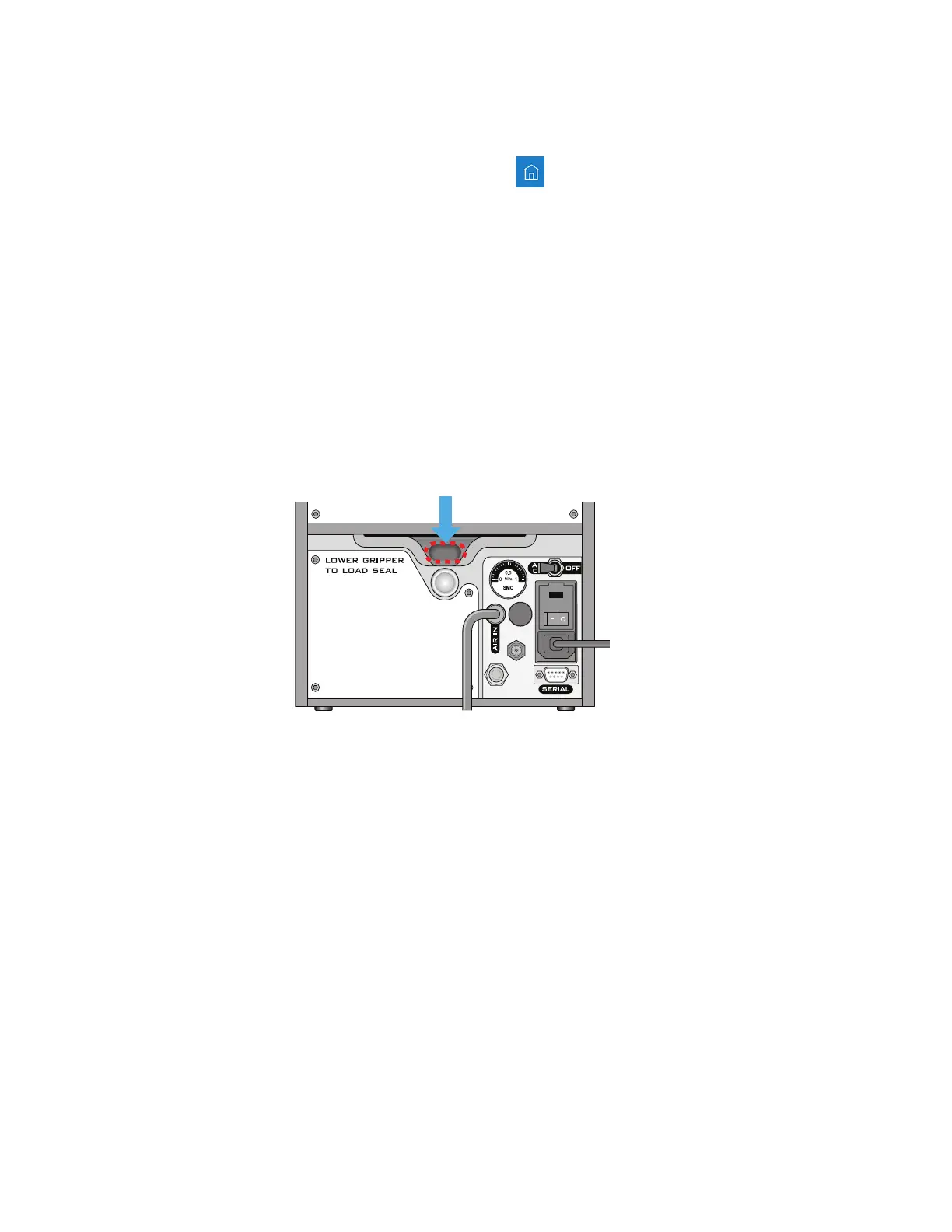

2 On the back of the PlateLoc Sealer, push down the red recessed gripper-release
button until it clicks.
Pressing the button opens the seal gripper inside the device.
3 Pull the seal out of the slot.
4 Lift the seal roll off of the seal-roll supports.
5 Unscrew one hub from the axle.
6 Remove the roll from the axle.
00191
PlateLoc
connections
00191
PlateLoc
connections
