10 Installation Note E4440-90318
Installation Procedure
3. Locate the Audio Input label (E4440-80100) from the kit. Remove the backing from
“Audio Input” label.

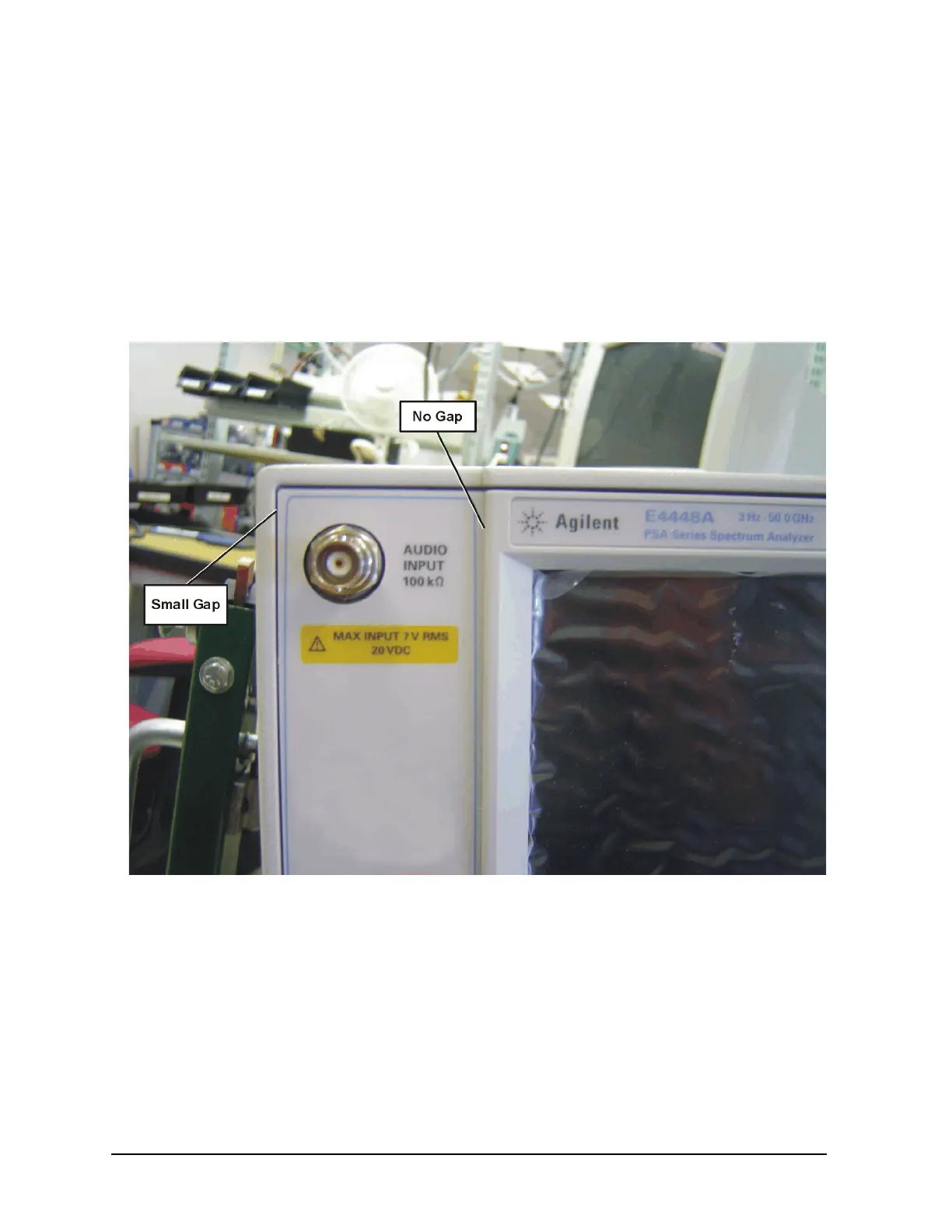

4. Place the bottom of the Audio Input label so that it lines up with the bottom of the
Display Bezel and so that the right edge of the label is flush with the Display Bezel.
(You should be able to see a small gap between the Audio In Label and the Front
Frame.) Apply the label in one motion.
5. Ensure that there is equal spacing between the Audio Input label and the Front
Frame and that there is no gap between the Audio In label and the Display Bezel on
the right side.
