Installation Note E4440-90318 15
Installation Procedure

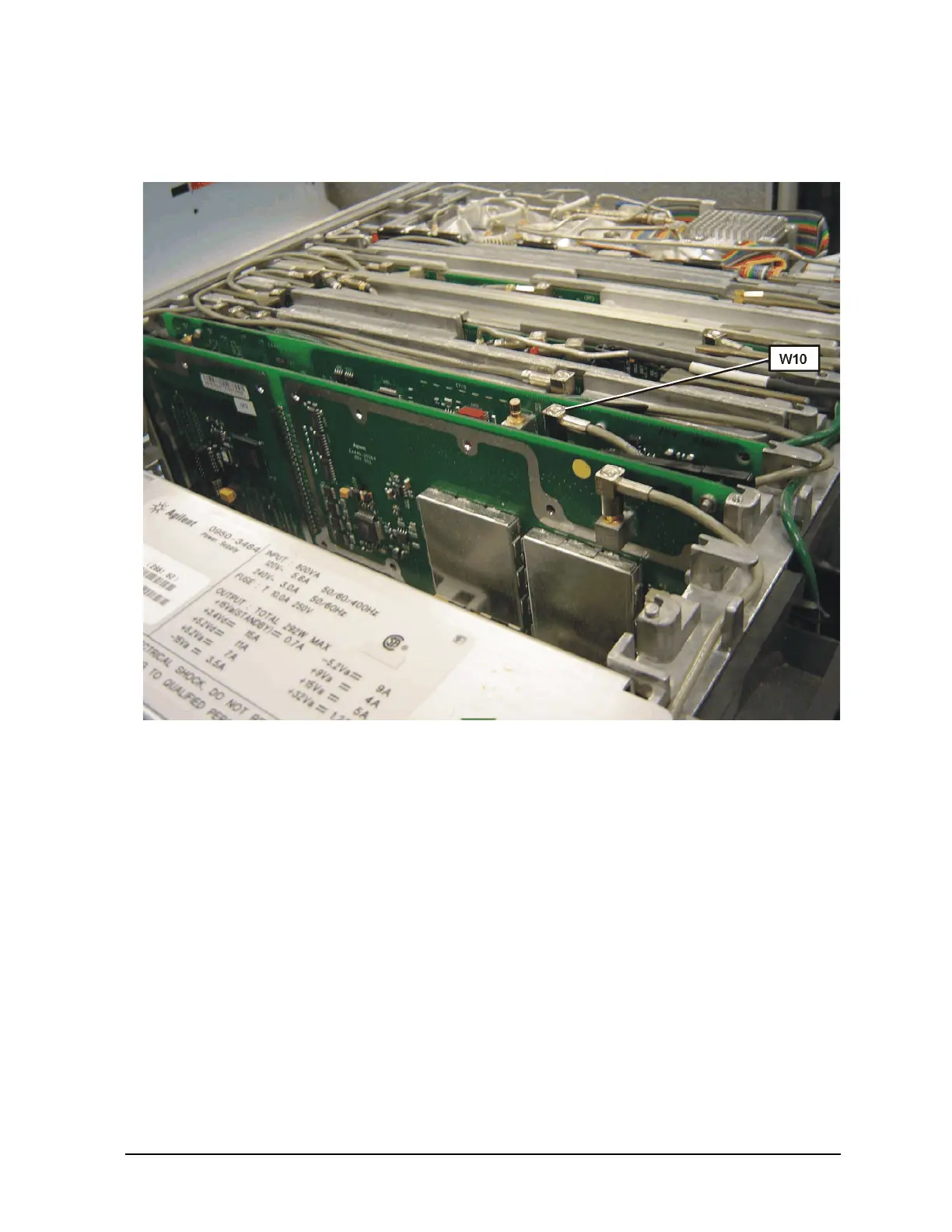

4. Connect the gray flexible coax cable W10 to A7 Digital IF assembly P3 as shown.
Cable designator “P3” and “GRAY (8)” are silk-screened on the PC board.
