395411000: Rev. 5 5 of 14 Pre-installation Instructions
212-LC and HTS PAL

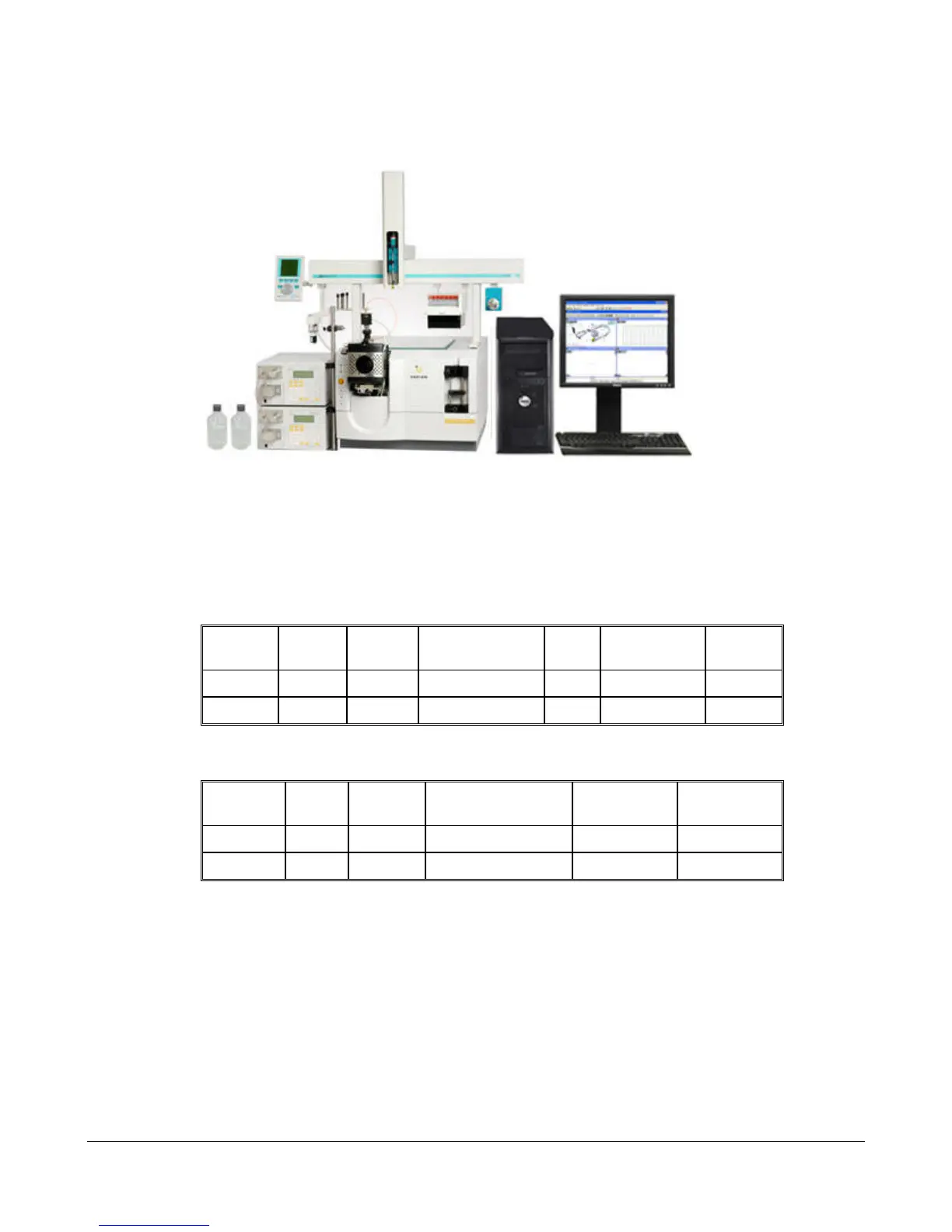

Figure 2 shows a possible layout for the LC/MS with 212-LC pumps and CTC HTS PAL
Autosampler.
Figure 2 Suggested Layout with 212-LC and HTS PAL
Table 3 and Table 4 give the dimensions and weights of the modules in Figure 2.
Table 3 Bench Space
Bench
Width
Solvents 212-LC
320-MS or 310-MS
with HTS PAL
CPU
Monitor and
Keyboard
Total
cm 30.5 26 53.5 18.6 43.8 172.4 cm
in. 12 10.5 21 7.4 17.25 68.15 in.
Table 4 Bench Load
Bench
Load
Solvents 212-LC
320-MS or 310-MS
with HTS PAL
Monitor, CPU,
and Keyboard
Total
kg 8 14.5 71 17.9 111.4 kg
lb 18 32 162 39.4 251.4 lb
The system requires a clean, flat bench. The bench must have enough space for the modules,
the mouse, solvent bottles, and such, see Table 5. The bench must be strong enough to
support the weight of the modules. The area under the bench must be large enough for the
foreline pump(s). If the bench is against a wall, drill a hole large enough for the vacuum tubing
of your pump(s) through the rear of the bench. See Table 8 for more information.
Refer to the Varian LC Systems Pre-installation Instructions, part number 391483100, for
information about LC modules.
Plan to put the monitor and keyboard on the same bench as the LC/MS. If the plan is to use a
separate bench, position them within 3 m (10 ft) of the rear of the LC/MS. The CPU can go on
or under the bench.
