6 AGM Global Vision
Manufactured for exceptional durability, the Asp has a lightweight and robust aluminum body.
A side Picatinny/ Weaver rail allows for the installation of an optional HD Video Recorder, WiFi
Attachment, Extended Battery Pack, or other equipment.
A standard NTSC/PAL video input/ output connector enables an external video display (monitor/
TV) or video recorder to be connected to the Asp.
The Asp is powered by two CR123A (2×3V) batteries. An external 6VDC/600mA power source and
USB power bank can also be connected to the Asp.
Figure 1-2 shows the Asp. The ITEM NO. column of Table 1-1 indicates the number used to identify
items in Figure 1-2.
NOTE:
Here and below, the example used is the Asp with a 50mm lens.
TABLE 1-1. SYSTEM DESCRIPTION
ITEM DESCRIPTION ITEM DESCRIPTION
1 Objective Lens Cap 8 Eyepiece
2 Objective Lens 9 Battery Cap
3 Objective Focus Ring 10 Micro-USB Connector with a Cap
4 Body 11 Universal Connector with a Cap
5 Button Control Panel 12 Operation Switch
6 Eyepiece Focus Ring 13 Side Picatinny/Weaver Rail
7 Eyecup 14 Tripod Socket

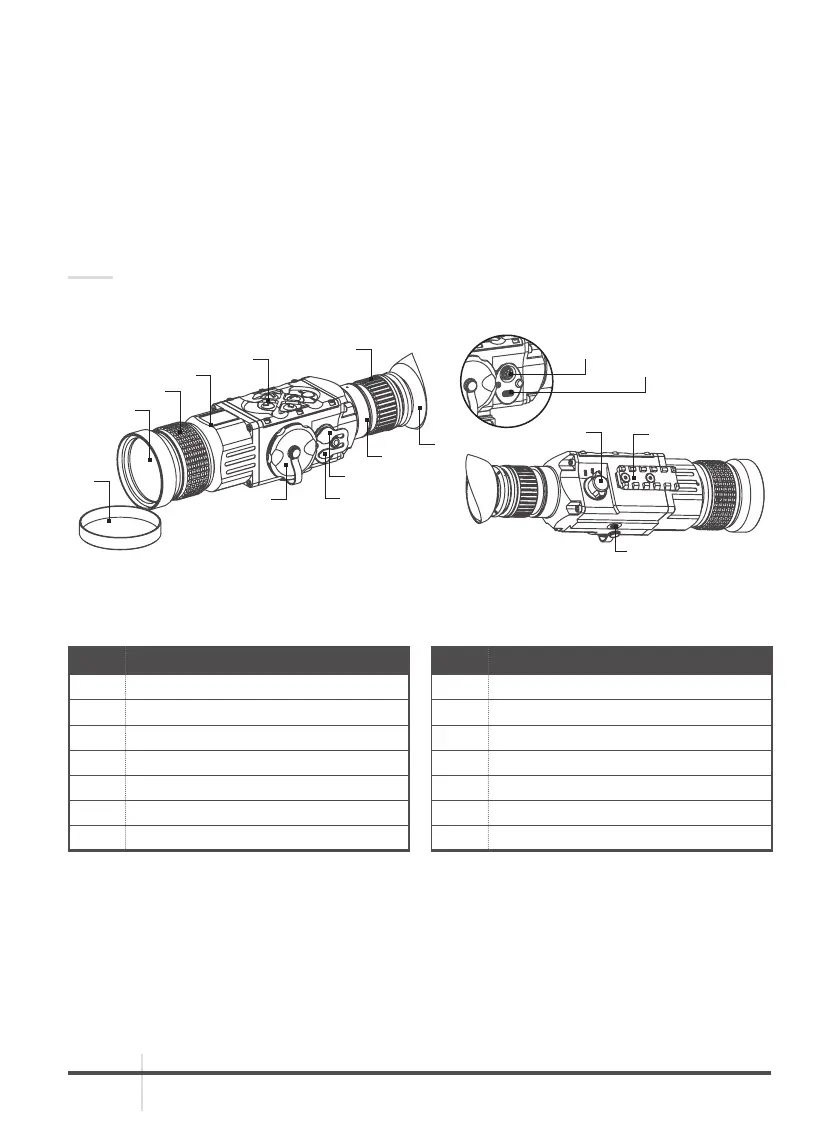

FIGURE 1-2. ASP THERMAL IMAGING MONOCULAR. SYSTEM DESCRIPTION
UNIVERSAL
CONNECTOR (S620)
MICRO-USB CONNECTOR
8
9
1
2
3
5
4
6
7
11
10
12
13
14
