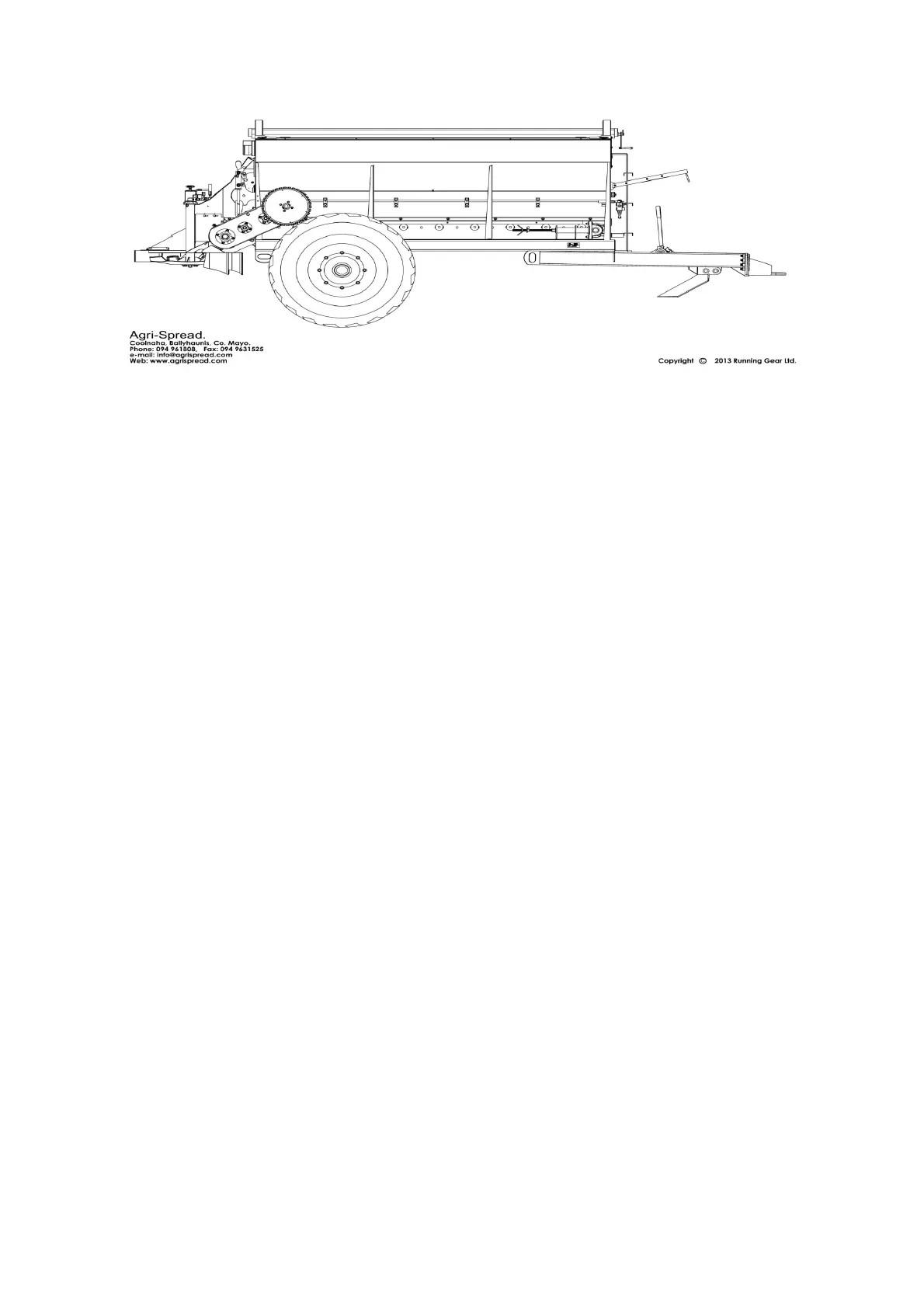

830 Belt Spreader
Connecting Up Hydraulics to Your Trailer
1. Connect the large diameter return hose to the return line breakaway coupling on your
tractor.
2. Connect the small diameter pressure hose to the pressure line breakaway coupling on your
tractor.
3. With the tractor at an idle, engage your hydraulic spinners. The right hand spinner should
rotate anticlockwise. The left hand spinner should rotate clockwise.
NOTE: If the spinners do not rotate or rotate the wrong direction then the delivery and return
hoses may have to be swapped over.
CAUTION!!
Spinners can be over accelerated.
Check Your Tachometer!! Max. for 675 mm spinners 1200 rpm, 575 mm spinners 1400
rpm. On any new set-up always shut Spinner Flow Control Valve before start up and open up
with tractor at Max. RPM until maximum spinner speed or flow control setting to keep Max.
Spinner speed within the above parameters.
