Agri-Spread AS35 - Page 8

6 ©Copyright Agrispread September 2014
830 Belt Spreader

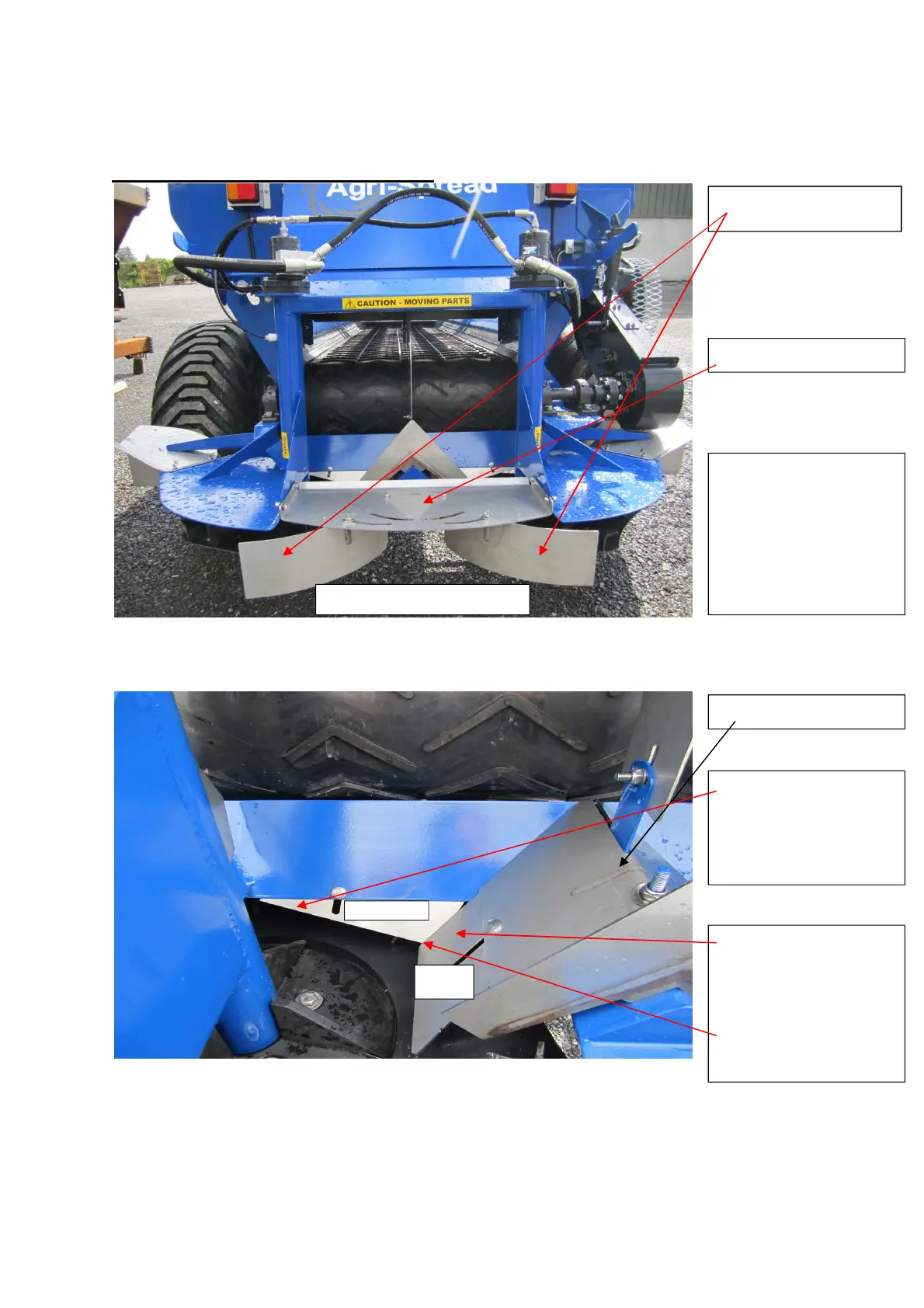

Feed Plate Adjustments
Vane Settings
When starting testing, have the rear cross bar pivoted up into the neutral position. If after
carrying out a test there is still an unacceptable amount of material behind the spreader, pivot
the rear cross bar to the active position with the centre deflectors set at centre. Repeat test.
Spread width m
odifiers
Extend this end of plate B
to reduce the amount of
material falling behind
the spreader.
Align ends of Contact
plates A and B
Centre V Insert
Centre deflectors
Extend this end of plate A
to reduce the amount of
material directly behind
the spreader
Contact Plate A
To spread less material
behind the spreader,
increase the angle of the
centre deflectors.
Contact
Plate B
Rear Cross Bar
