8
Two-wheel tractor agria 3600

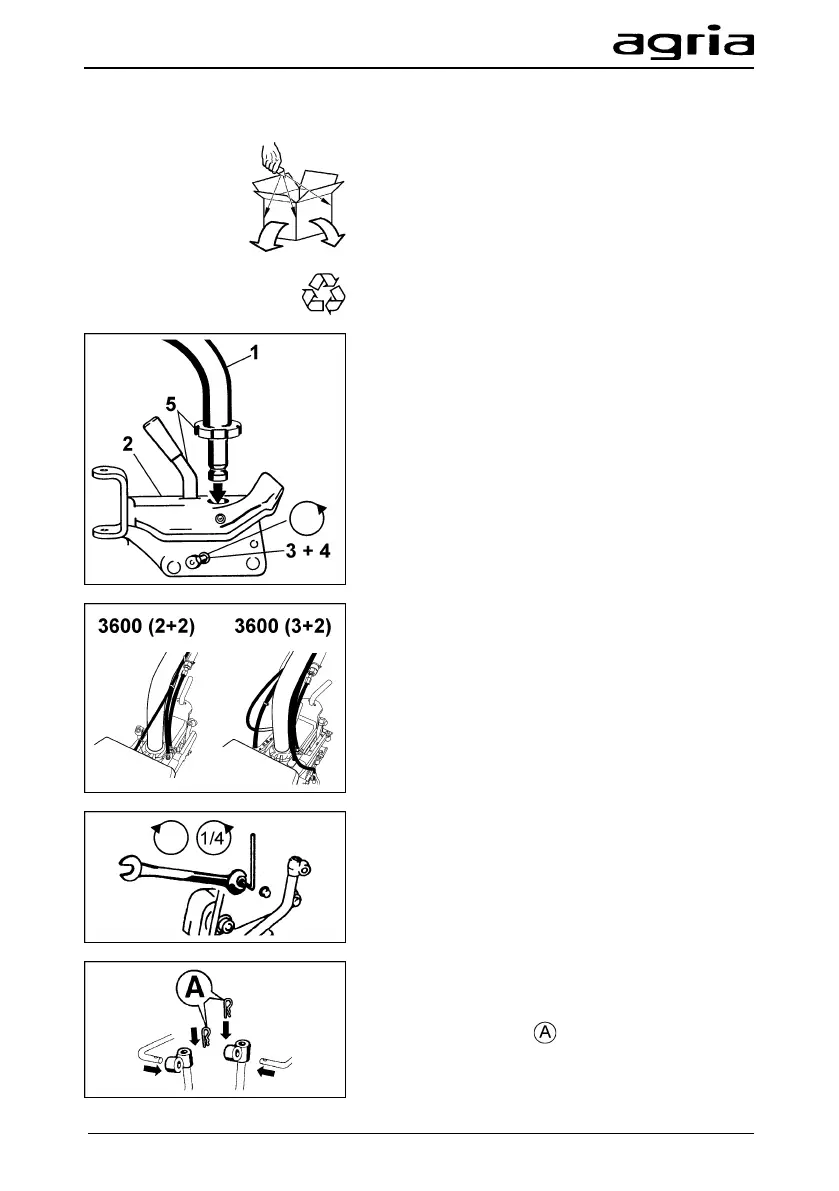

Unpacking and assembly instructions
Unpacking
Open the top lid of the cardboard box. Cut the
cardboard box at all four edges, and fold down
the cardboard walls.
Packaging should be recycled in an environmen-
tally friendly manner.
Assembly
Although handlebars with lower bar and base
engin
e are not assembled, they are connected
with each other via the Bowden cable.
Unpack both modules. Rotate the steering bar
through 180° (put it in two-
and install it into the steering tower:
Unscrew grub screw (3) and hexagonal nut
(locknut) until you can insert the steering bar (1)
into the steering tower (2).
Insert the steering bar.
Route the Bowden cable
s as shown in the figure
in accordance with the version 3600 (2+2) or
(3+2) (the Bowden cables for the clutch at the
left in driving direction).
Take note of the bar turning lock (5).
Screw in the grub screw until you can feel a
slight resistance. Turn the grub screw back by
1/4 revolution and lock it with the hexagonal nut.
• Swivelling the steering bar must be easy.
Install the shifting rods. Insert the shifting rods
for gear and PTO shifting into the joint elements
at the shift levers at the gear side, a
them with cotter pins .
Check the Bowden cables to ensure that they
are neither kinked nor pinched.
Install the front ballast at the engine safety bar.
