2 Remote control and remote control display.

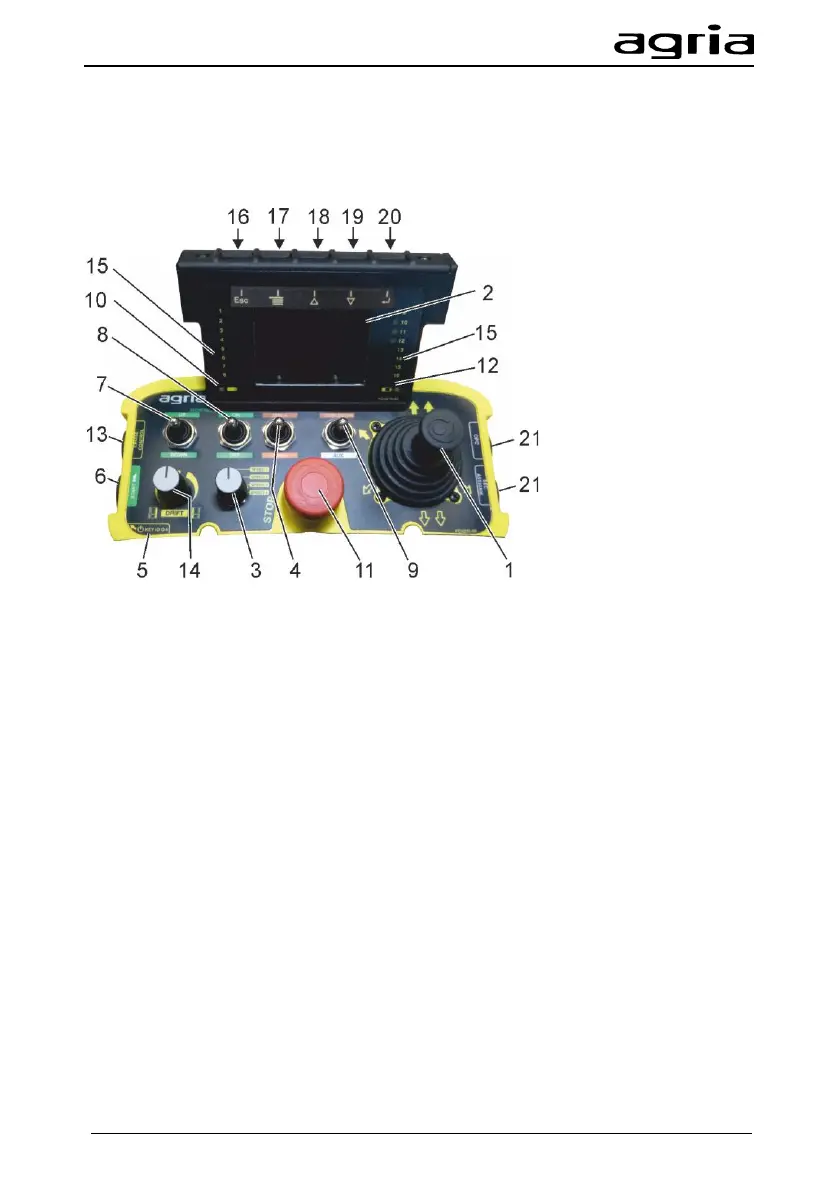

Remote control / Fig. B
The machine is controlled via the remote control.
(1) Joystick
The travel direction and travel speed are controlled with the joystick.
(2) Display
The machine settings and the strength of the radio signal are shown on the dis-
play.
(3) Travel speed range
The machine's top speed is adjusted in four levels with the travel speed selector
switch. Speed levels 1-2-3-4 correspond to 2.5-4-6-10 km/h. Levels 1, 2 and 3
are intended for working, level 4 for moving without mulching.
(4) Engine speed
The engine speed is adjusted from idle speed (min.) to operating speed (max.)
with the 'rpm' switch.
(5) Key switch
The remote control is switched on and off with the key switch.
(6) Release
The green 'release' button activates radio contact between the remote control
and the machine.
(7) Mowing deck up/down
The 'mowing deck' switch is used to adjust the cutting height.
(8) Mowing drive on/off
The mowing drive switch switches the mowing drive on and off via an electro-
magnetic clutch.
(9) Engine on
