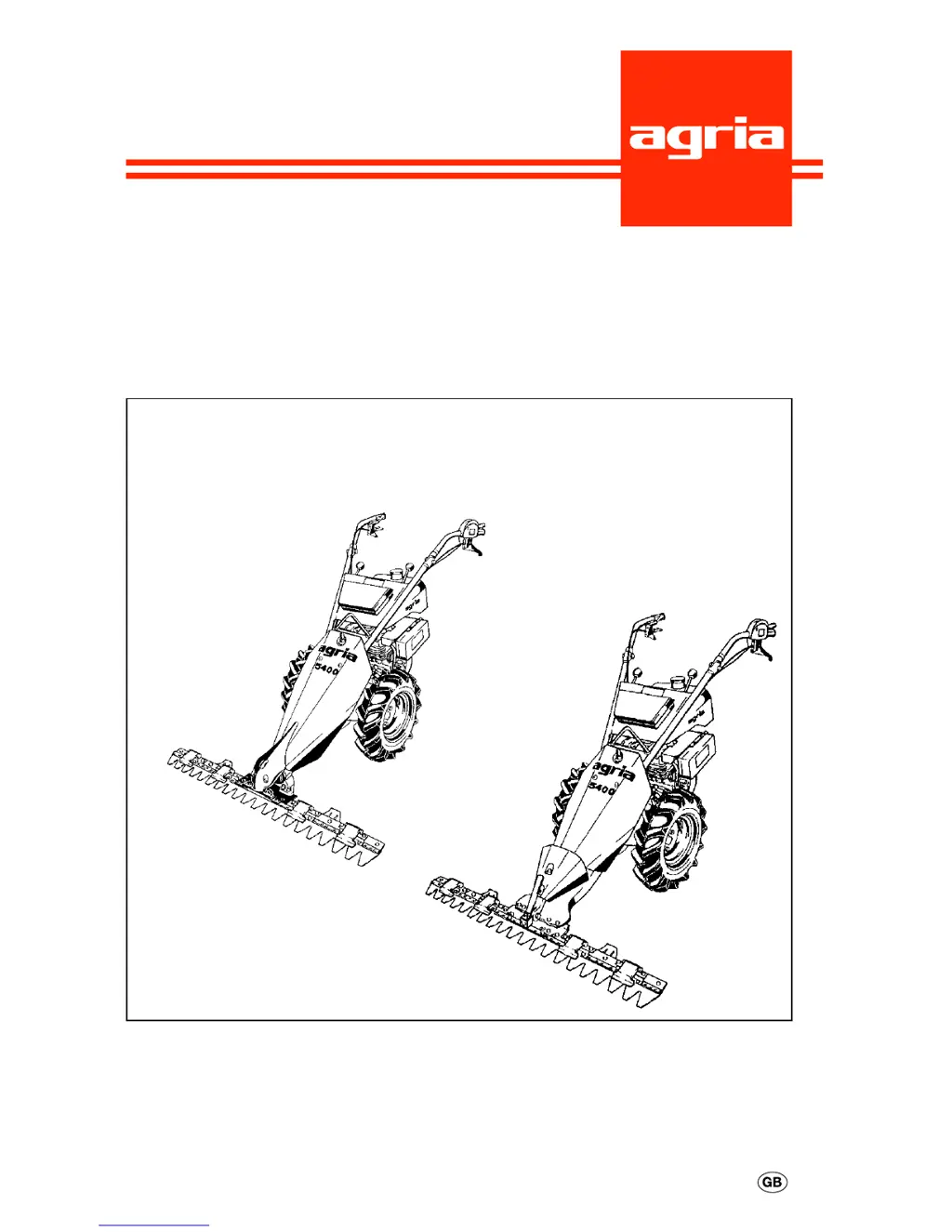

Agria 5400 - User Manual

Questions and Answers

M
Mikayla JacobsAug 18, 2025
What to do if Agria 5400 engine has misfirings?
- M
  mallorycookAug 18, 2025
  If your Agria Lawn Mower engine is misfiring, consider the following: * If the engine is running in the CHOKE range, set the CHOKE lever to the operating position “BETRIEB”. * A loose ignition cable can cause misfires; firmly connect the spark plug connector to the spark plug and fix the ignition cable retaining device. * A clogged fuel line or poor fuel quality can be the issue; clean the fuel line and fill with fresh fuel. * A clogged vent opening in the fuel tank cap may be the cause; exchange the fuel tank cap. * Water or dirt in the fuel system can lead to misfires; drain the fuel and fill with fresh fuel. * A clogged air filter can cause misfiring; clean or exchange the air filter. * A misadjusted carburetor can also be the reason; re-adjust the carburetor.
M
Matthew LaneAug 20, 2025
How to fix excessive vibration in Agria 5400?
- C
  carlosjohnsonAug 20, 2025
  Excessive vibration in your Agria Lawn Mower can be resolved by tightening any loosened attachment bolts.
I
Isaac CollinsAug 23, 2025
What to do if clutch does not decouple on Agria Lawn Mower?
- R
  ronalddavisAug 23, 2025
  If the clutch does not decouple on your Agria Lawn Mower, the clutch hand lever may be misadjusted. Adjust the clutch free play.
R
Ronald GonzalezAug 27, 2025
What to do if Agria Lawn Mower engine frequently stalls in idle?
- B
  Bridget Gonzalez DDSAug 27, 2025
  If your Agria Lawn Mower engine frequently stalls while idling: * The firing interval may be too long, or the spark plug may be defective; adjust or replace the spark plug. * The carburetor may be misadjusted; re-adjust the carburetor. * The air filter may be clogged; clean the air filter.
Q
qarmstrongAug 30, 2025
Why Agria 5400 engine temperature is excessive?
- C
  Christine GuzmanAug 30, 2025
  Excessive engine temperature in your Agria Lawn Mower can be due to: * Low engine oil level (for 4-stroke engines); refill oil immediately. * Impaired cooling; clean the cooling-air grille and internal cooling fins. * Clogged air filter; clean the air filter. * Misadjusted carburetor; re-adjust the carburetor.
M
Matthew JohnsonSep 1, 2025
What causes misfirings in Agria Lawn Mower engine at high speeds?
- D
  Dana BarronSep 2, 2025
  Misfiring in an Agria Lawn Mower engine at high speeds can be caused by: * Short firing intervals; adjust the spark plug. * Incorrect idle mixture; adjust the carburetor.
K
Keith CollinsSep 4, 2025
What to do if Agria Petrol Engine output is too low?
- A
  Alicia DavisSep 4, 2025
  If the output of your Agria Petrol Engine is too low: * Check for a loose cylinder head or damaged sealing; tighten the cylinder head and exchange the sealing if necessary. * Poor compression may be the cause; have the engine checked.
T
Tiffany CunninghamSep 7, 2025
What to do if Agria 5400 mowing output suddenly declines?
- H
  hendersonjohnSep 7, 2025
  If the mowing output of your Agria Lawn Mower suddenly declines, the knives may be dull. Exchange or re-grind the knives and remove any burr with a hand grinding stone.
M
Mark NicholsonSep 9, 2025
What to do if Agria Petrol Engine does not run smoothly?
- J
  James PowellSep 9, 2025
  If your Agria Petrol Engine is not running smoothly, the speed control linkages may be clogged or jammed; clean the speed control linkages.
J
joseph84Sep 12, 2025
What to do if Agria Petrol Engine does not stop when set to stop?
- K
  Kristen HooperSep 12, 2025
  If your Agria Petrol Engine does not stop when set to stop, the engine-stop-line may be defective, or earth may be missing; check the line and connection, and check the earth contact.

Summary

Designation of Parts

4-Stroke-Petrol-Engine, Robin EH 25 Figures

Diagrams identifying parts of the Robin EH 25 4-stroke engine.

2-Stroke-Petrol-Engine Rotax 232 Figures

Diagrams identifying parts of the Rotax 232 2-stroke engine.

1. Safety Instructions

Warning Symbol

General warning symbol and its meaning regarding safety.

Due Use Definition

Defines the intended use of the mower and manufacturer's liability.

General Safety and Accident Prevention

Guidelines for safe operation, maintenance, and accident prevention.

Working Area and Hazardous Area Safety

Safety precautions related to the operating environment and bystanders.

Operation and Safety Devices

Maintenance Safety Rules

Engine, Fuel, and Oil Safety

Explanation of Warning Signs

2. Specifications

4-Stroke-Engine Specifications

Manufacturer, type, dimensions, output, ignition, oil, fuel, carburetor, and noise specs.

2-Stroke-Engine Specifications

Manufacturer, type, dimensions, output, ignition, oil, fuel, carburetor, and noise specs.

3. Devices and Operating Elements

Engine System Description

Engine-off-switch Operation

Safety Circuit Function

Clutch Operation and Adjustment

Gearbox and FR-Change

Central Brake Operation

Planetary Mowing Attachment

Specifications and components of the planetary mowing drive.

Planetary Mowing Drive Maintenance

Instructions for mounting cutter bars and exchanging mowing knives.

Rocker Arm Mowing Attachment

Specifications and assembly procedures for the rocker arm attachment.

Cutter Bar Assembly

Cutter Bar Attachment Procedure

Mowing Knife Attachment;Removal

4. Commissioning and Operation

Commissioning Procedure

Important notes on engine break-in, fuel, and initial setup.

Pre-Operation Checks

Pre-operation checks for fuel, oil, and transmission grease levels.

Safety Warning: Protective Devices

Starting 4-Stroke Petrol Engine

Step-by-step guide for starting the 4-stroke engine.

Starting 2-Stroke Petrol Engine

Step-by-step guide for starting the 2-stroke engine.

Switching off Petrol Engine

Procedure for safely shutting down the petrol engine.

Mowing Operation

Detailed steps for operating the mower during mowing.

Mowing Operation Notes

Starting Engine on Slopes

Procedure for restarting the engine if it stops during operation on slopes.

5. Maintenance

Engine Maintenance

Procedures for checking and changing engine oil.

Air Filter Maintenance

Cooling System Cleaning

Spark Plug Maintenance

Idling Speed Adjustment

5. Maintenance: 2-Stroke-Engine

Maintenance tasks specific to the 2-stroke engine.

Machine Maintenance

Maintenance procedures for the gearbox and drive-wheels.

Hand Lever Adjustments

Safety Circuit Function Check

Planetary Mowing Drive Lubrication

Lubrication procedures for the planetary mowing drive.

Rocker Arm Mowing Drive Checks

Bolt tightness checks and lubrication for the rocker arm drive.

Cutter Bar Maintenance

Maintenance tasks for various cutter bar types.

Universal-SC Cutter Bar

Knife removal, attachment, and guide setting for Universal-SC cutter bar.

Finger Cutter Bar

Knife removal, attachment, and adjustment for finger cutter bar.

Municipal Cutter Bar

Knife removal, attachment, lubrication, and guide adjustment.

Cutter Bar Re-grinding Knives

Instructions and recommendations for re-grinding mowing knives.

General Maintenance

Storage Procedures

6. Troubleshooting

Engine Does Not Start

Troubleshooting steps for when the engine fails to start.

Engine Misfirings

Diagnosing and resolving engine misfirings.

Engine Overheating

Addressing overheating issues in the engine.

Engine Misfires at High Speeds

Troubleshooting engine misfires at higher speeds.

Engine Stalls at Idle

Resolving issues where the engine stalls during idle.

Petrol Engine Runs Rough

Diagnosing why the petrol engine is not running smoothly.

Engine Fails to Stop

Troubleshooting when the engine fails to stop.

Low Petrol Engine Output

Diagnosing low power output from the petrol engine.

Clutch Does Not Decouple

Resolving issues where the clutch fails to disengage.

Clutch Slips

Troubleshooting a slipping clutch.

Excessive Vibration

Addressing excessive vibration during operation.

Sudden Drop in Mowing Output

Diagnosing sudden drops in mowing output.

Plant Trash Between Knives

Clearing plant trash caught between the mower knives.

Knife Blade Interference

Correcting interference between top and bottom knife blades.

Knife Blade Alignment

Aligning mower blades correctly.

Inspection and Maintenance Chart

Agria 5400 Specifications

General

Brand	Agria
Model	5400
Category	Lawn Mower
Language	English
