Agria 5400 - Hand Lever Adjustments; Safety Circuit Function Check

48 Power Mower 5400 Edition 02.97

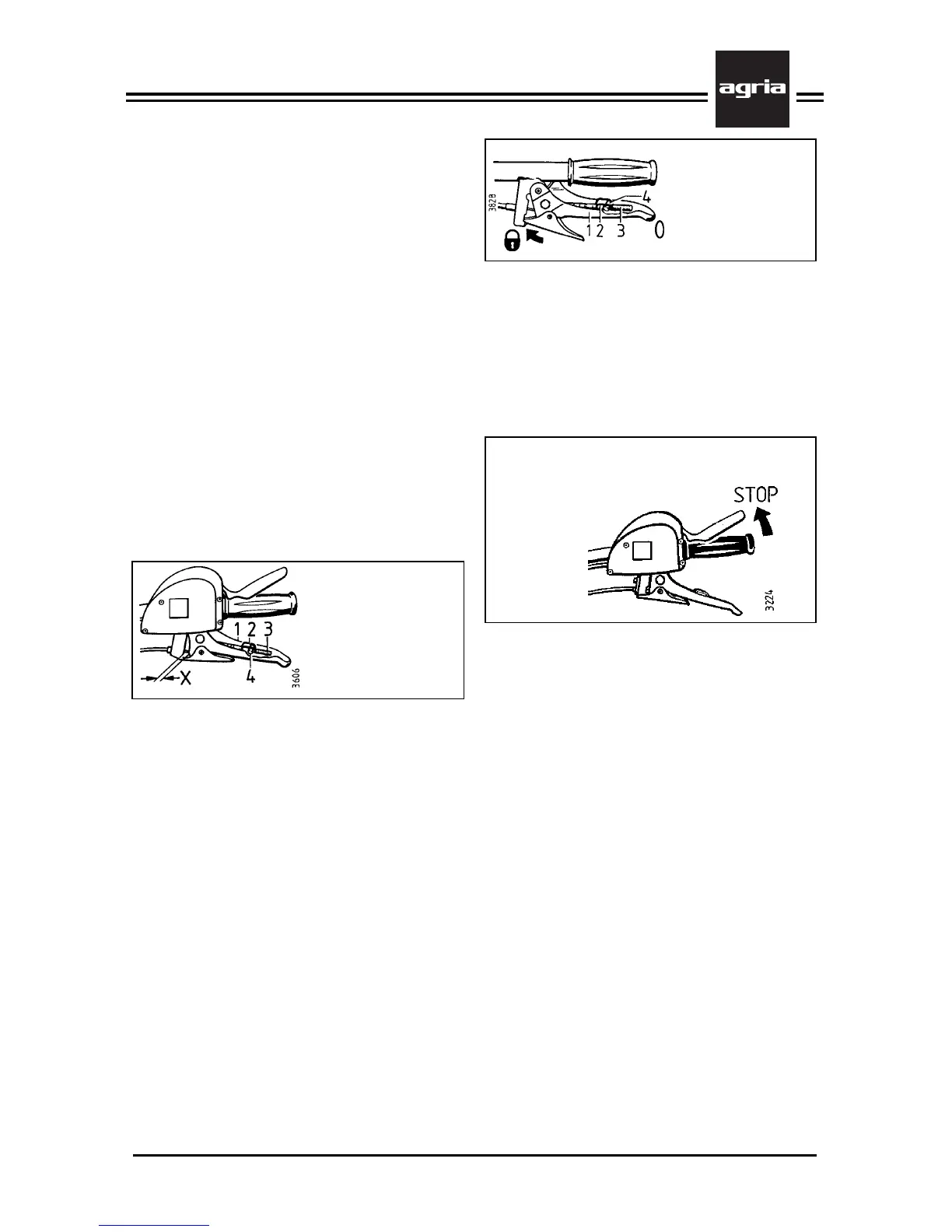

Adjustments on Hand Levers
Check clutch play or clutch settings
each time you operate the machine. If
necessary, re-adjust (especially after
commissioning the machine during
break-in period, and after exchanging
clutch linings and brake pads).
l Remove retaining spring (2) with
screw driver or similar tool.
l Use set pin (4) to press cable end
(3) out of bracket in hand lever.
l Adjust the set pin (4) to a play of X.
Screw set pin in to reduce play, screw
out to increase play.
l Use set pin to place cable end back
into bracket and check.
l Fit retaining spring (2).
Clutch hand lever:
x = 3–5 mm (clutch play)
5. Maintenance
Hand lever for forward/reverse change:
Adjust Bowden cable in such a way that
transmission is set to neutral when pawl
is locked (B/10) (play X does not have
to be adjusted).
Safety Circuit
Check safety circuit for proper function
each time you maintain the machine.
l With clutch engaged and upon re-
lease of safety lever (B/2) the engine
must automatically come to a stop.
l Check electric lines and connections
for proper condition and exchange, if
necessary.
For this purpose, contact your AGRIA
workshop.
Stop position
1 Hand lever for
clutch operation
2 Retaining spring
3 Cable end weight
4 Adjusting pin
1 Hand lever for
F/R operation
2 Retaining spring
3 Cable end weight
4 Adjusting pin
