Edition 02.97 Power Mower 5400 47

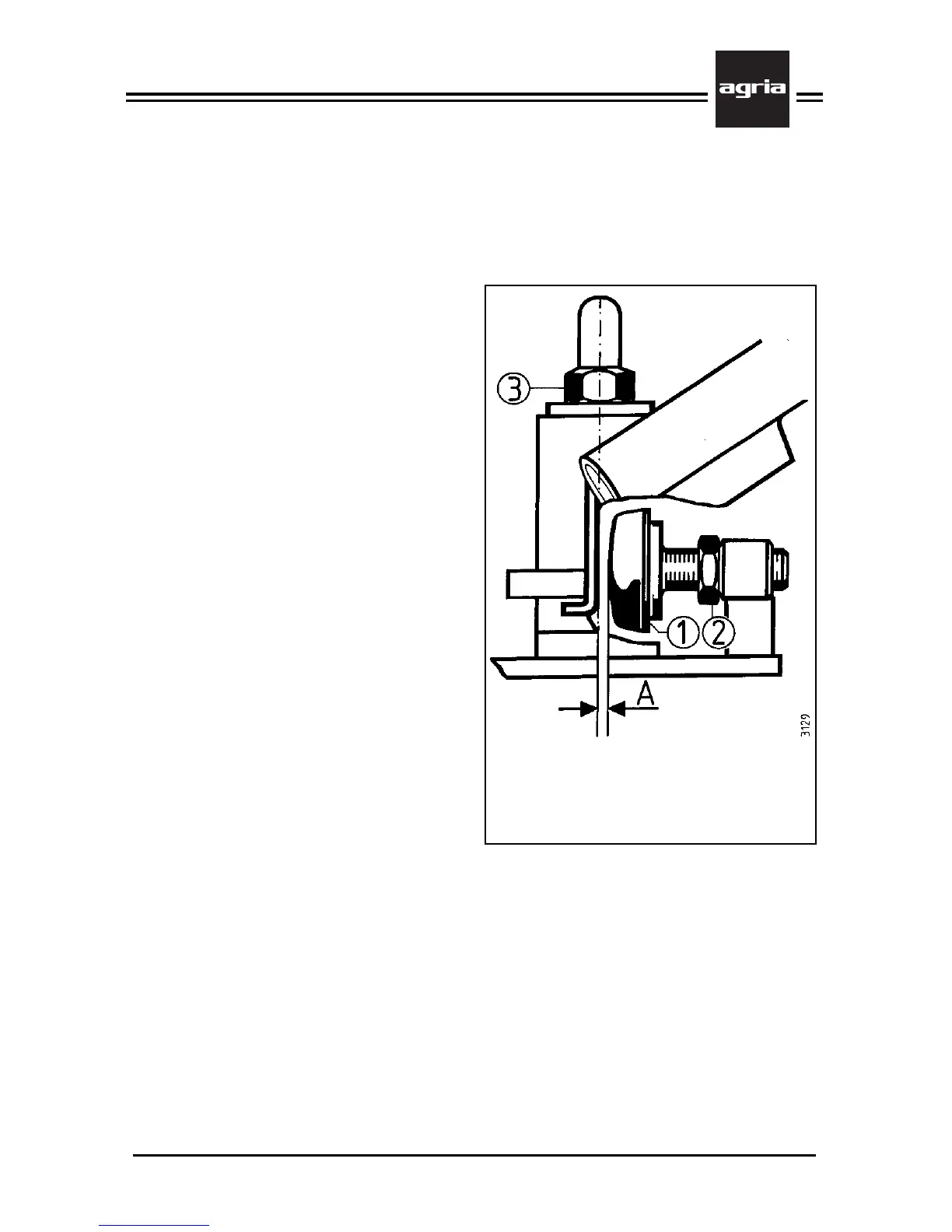

Steering Handle Pendulum Stop
This steering handle bearing provides
optimum dampening, when the two stop
buffers are adjusted to a play of A =
0.5 mm (in position zero, with no load
on steering handle) between stop plate
and buffers.
However, the pendulum stop can also
be set to provide a rigid steering handle
(without play).
Adjustment:
l
Loosen hexagonal nuts (2).
l
Adjust stop buffer (1) by turning it to
the above stated play.
l
Re-tighten hexagonal nut (lock).
5. Maintenance
Steering Handle Central
Mounting
Re-tighten adjustment nut (3) with
20 Nm after the first 4 operating hours,
then after every 50 operating hours.
1 Lock nut for stop buffer
2 Stop buffer
3 Adjustment nut for steering handle central
mounting
