32 Power Mower 5400 Edition 02.97
3. Devices and Operating Elements

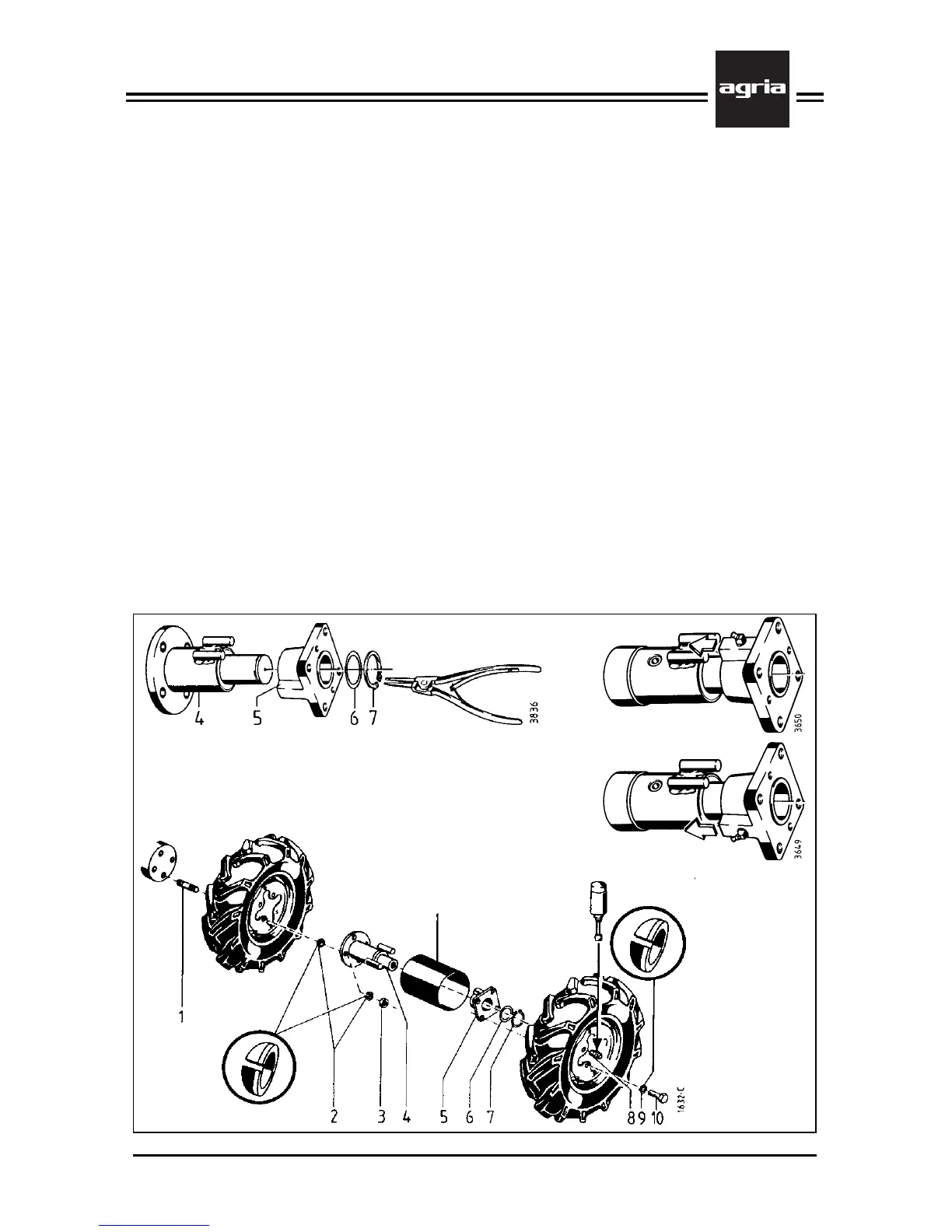

Anti-winding tube
1 Double-end stud
2 Ball spring ring
3 Hex nut
4 Differential hub
5 Wheel flange
6 Thrust washer
7 Snap ring (Seeger circlip ring)
8 Lubrication nipple
Rigid position
Differential position
Twin Wheels
We recommend using twin wheels,
wheel centres or strake wheels for op-
eration on extremely steep slopes.
Differential Hubs with Anti-winding
Tubes
Item no. 5519 011 (without wheels)
Use the wheel attachment bolts, version
B (page 31) to fit the differential hubs to
the machine’s hub adapter.
l
Fit ball spring ring between drive
wheel and differential hub!
Differential Hubs
The machine is supplied with differen-
tial hubs being set to give differential
action.
It is, however, possible to attach the
hubs rigidly:
l
Remove snap ring (7) with a pair of
pliers
l
Remove the washer (6)
l
Pull the wheel flange (5) a bit out and
twist it until the tang nocken is positioned
between both tang pins
l
Push the wheel flange all the way on
the differential hub, fit the washer and
the snap ring.
Lubrication
l
Lubricate the wheel flange lube nip-
ple (8) at intervals of 50 operating hours
or after cleaning with a pressure washer.
Use a grease gun (Bio lubrication
grease).
