Agria 5400 - 4-Stroke-Petrol-Engine, Robin EH 25 Figures

60 Power Mower 5400 Edition 02.97
Designation of Parts
4-Stroke-Petrol-Engine,
Robin EH 25

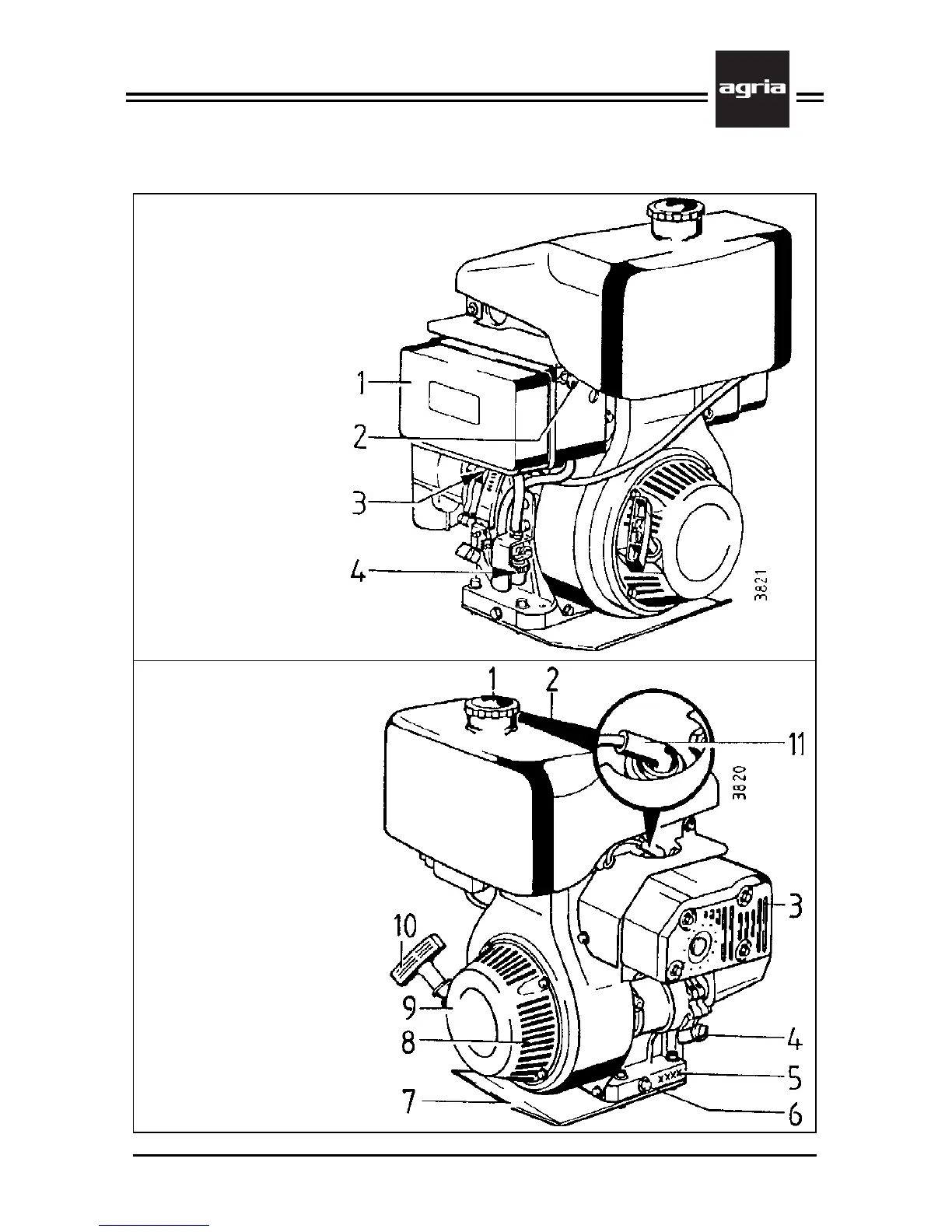

Figure D
1 Air filter
2 Choke pull-out knob
3 Carburetor
4 Fuel tap
Figure E
1 Fuel tank cap
2 Fuel tank
3 Exhaust with
exhaust guard
4 Engine oil filler plug
with dip-stick
5 Engine type and
number
6 Engine drain plug
7 Engine protection base
8 Cooling-air grille
9 Recoil starter
10 Starter handle
11 Spark plug and
spark plug connector
