24 Power Mower 5400 Edition 02.97
Planetary Mowing
Attachment
Centrally driven planetary mowing
drive
Stroke: ..................................... 76 mm
Required cutter bar:
Item no. 2447 061-3447 961 (depend-
ing on version)
Accessories for cutter bar:
Grass distributor, etc. (see page 63)

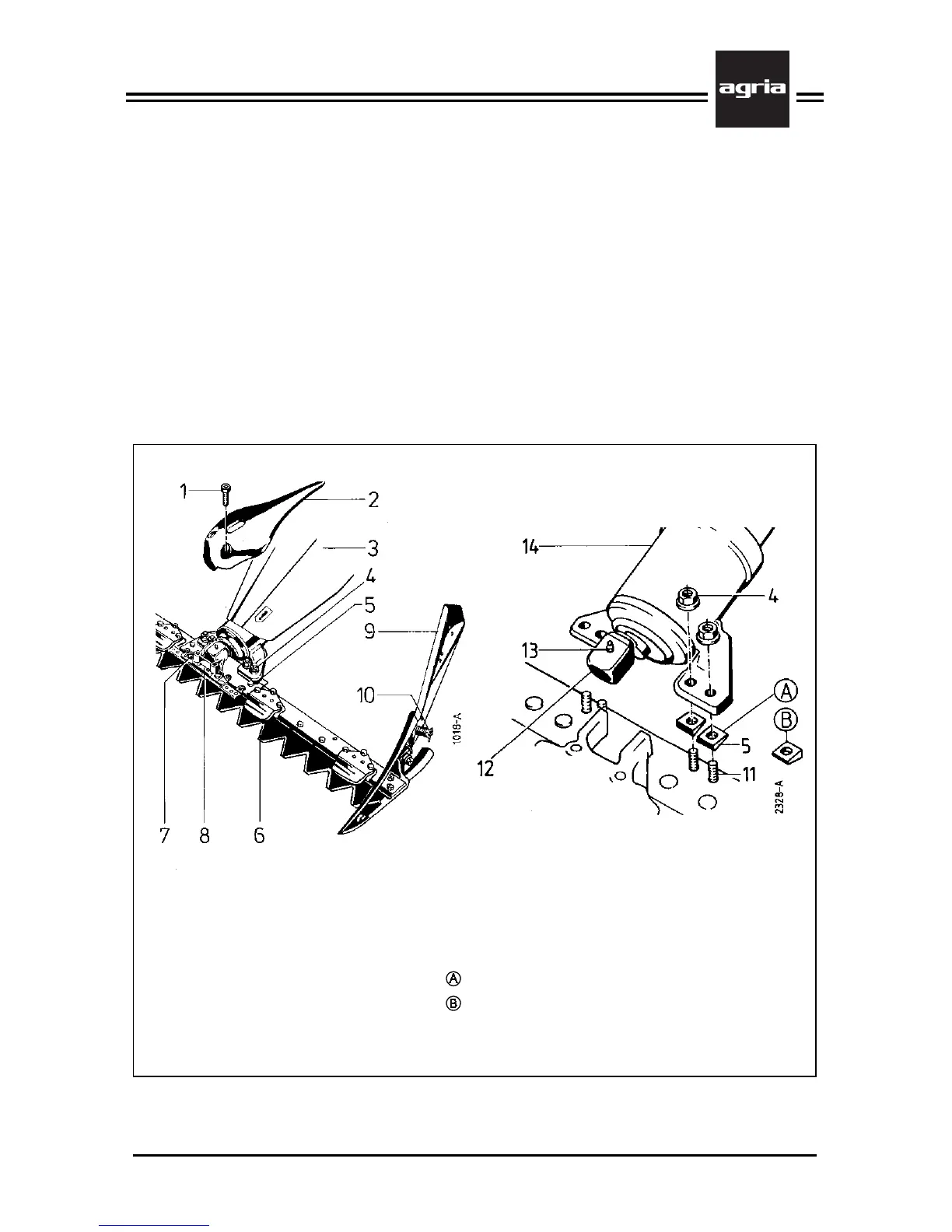

3. Devices and Operating Elements
7
1 Internal hex head bolt
2 Grass distributor
3 Mowing drive hood
4 Flat collar nut
5 Wedge washer
6 Mowing knife
7 Hex head bolt for attaching
knife driver
8 Knife driver
9 Swath board)*
10 Counternut )*
11 Cutter bar screw
12 Crank stone
13 Lubrication nipple
14 Cutter bar carrier tube
Wedge washer position for tyres 4.00-8
Wedge washer position for tyres 5.0-10
)* only for finger cutter bar
