Agria 5400 - 2-Stroke-Petrol-Engine Rotax 232 Figures

64 Power Mower 5400 Edition 02.97

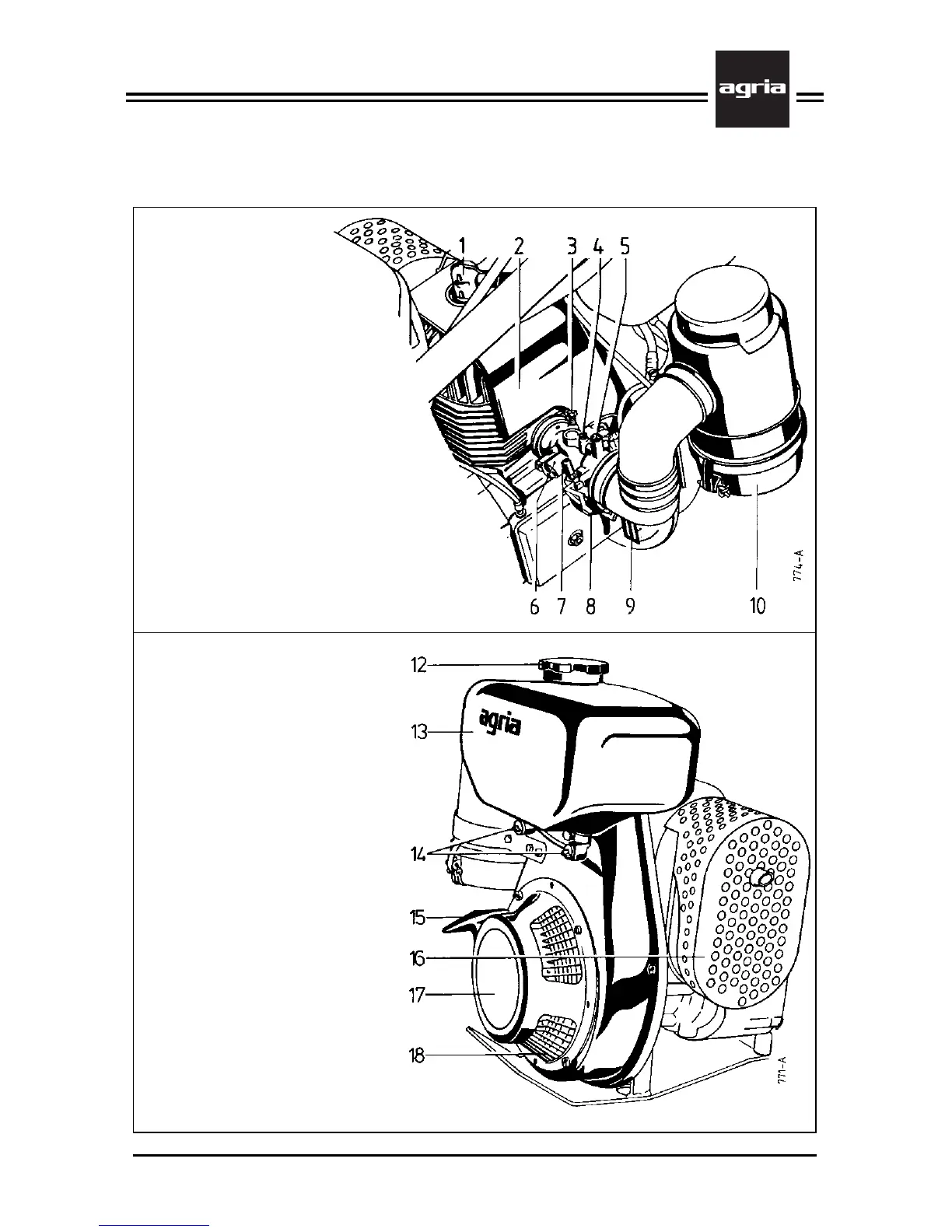

Designation of Parts
Figure F
1 Spark plug,
spark plug connector
2 Fan housing
3 Idling speed control
screw
4 Idling speed jet
5 Air control screw
6 Carburetor
7 Tickler on carburetor
8 Choke lever
9 Engine type plate
10 Oil bath air filter
Figure G
12 Fuel tank cap
13 Fuel tank
14 Fuel taps (2)
15 Starter handle
16 Exhaust with
exhaust guard
17 Recoil starter
18 Cooling-air grille
2-Stroke-Petrol-Engine
Rotax 232
