22 Power Mower 5400 Edition 02.97
Gearbox
FR-Change
The mower is equipped with a 2-gear
reversing transmission. In both gears
F/R drive is possible.
l

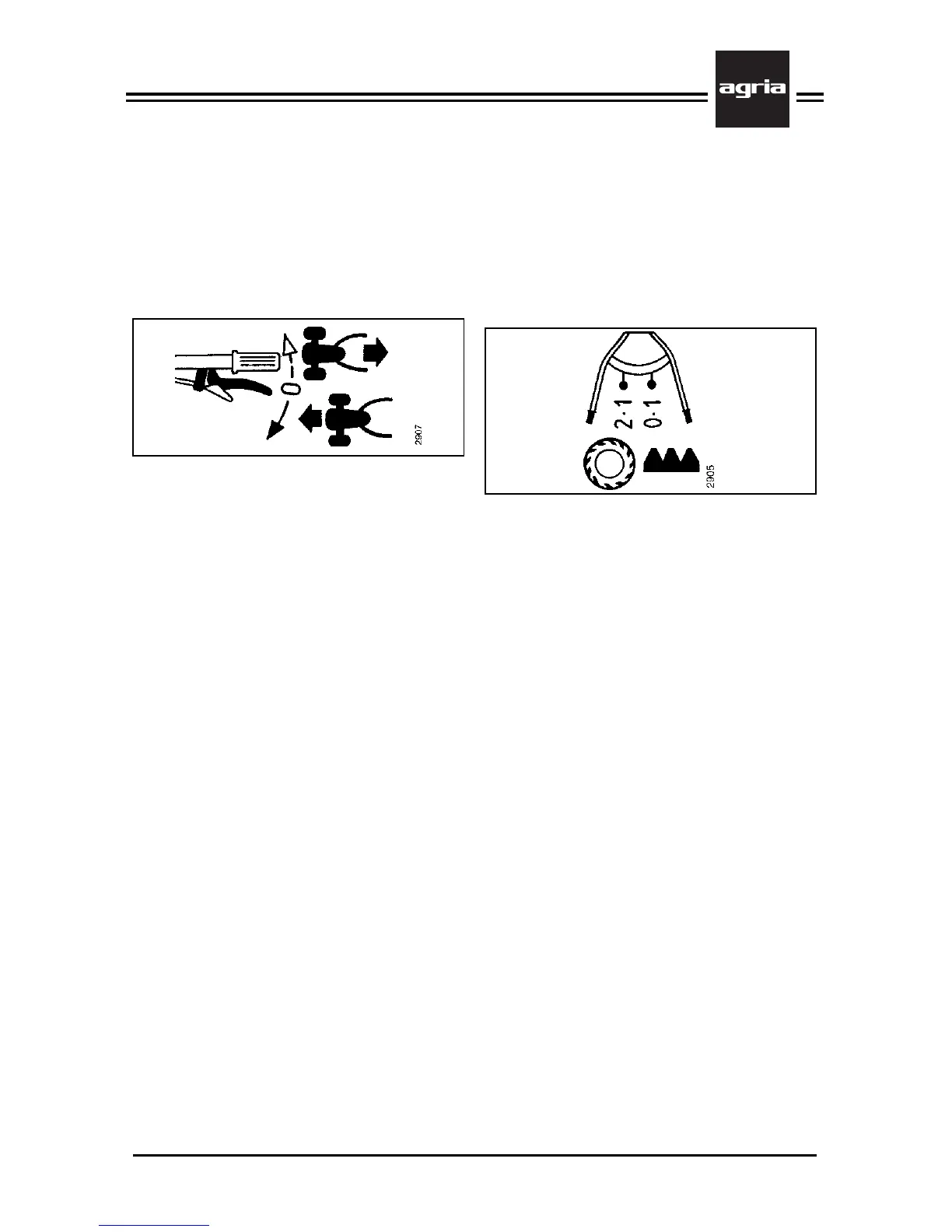

Move F/R-hand lever (B/11) down
(pawl (B/10) is unlocked) – the power
mower travels forward.
l
Move hand lever up – the mower trav-
els reverse.
l
In centre position (pawl is locked) the
machine is in neutral.
Only actuate F/R change with trans-
mission decoupled and machine at a
halt!
The machine can be pushed in F/R
neutral.
3. Devices and Operating Elements
Gear-Change
Change gears 1 – 2 via shifter (B/6).
1st gear = shifter pushed forward
2nd gear = shifter pulled backward
There is no neutral position between
1st and 2nd gear.
Engaging Mowing Drive
The mowing knife drive is engaged via
the shifter (B/8).
Move shifter forward to engage mowing
knife drive. Pull shifter backward to dis-
engage mowing knife drive.
