Edition 02.97 Power Mower 5400 31
Strake Wheels
Item 5417 511 for drive-wheels 4.00-8
Item 5517 521 for drive wheels 5.0-10
l
For use of strake wheels, wheel at-
tachment bolts version B must be fit.
l
Fit drive-wheels, spring-lock washers
(between drive-wheel and flange),
flanges (3), spring lock washers (under
hexagonal nut) and tighten with hexago-
nal nut.
l
Fit strake wheels (5) on hexagonal
full dog points and tighten with tommy
screws (6).
l
Make sure that wheel carriers point
to machine, when looked into travel di-
rection (see fig.).
Snow Chains
When working with snow chains fitted
on wheels, observe manufacturer’s in-
structions, make sure there is sufficient
clearance between chains and machine
parts.

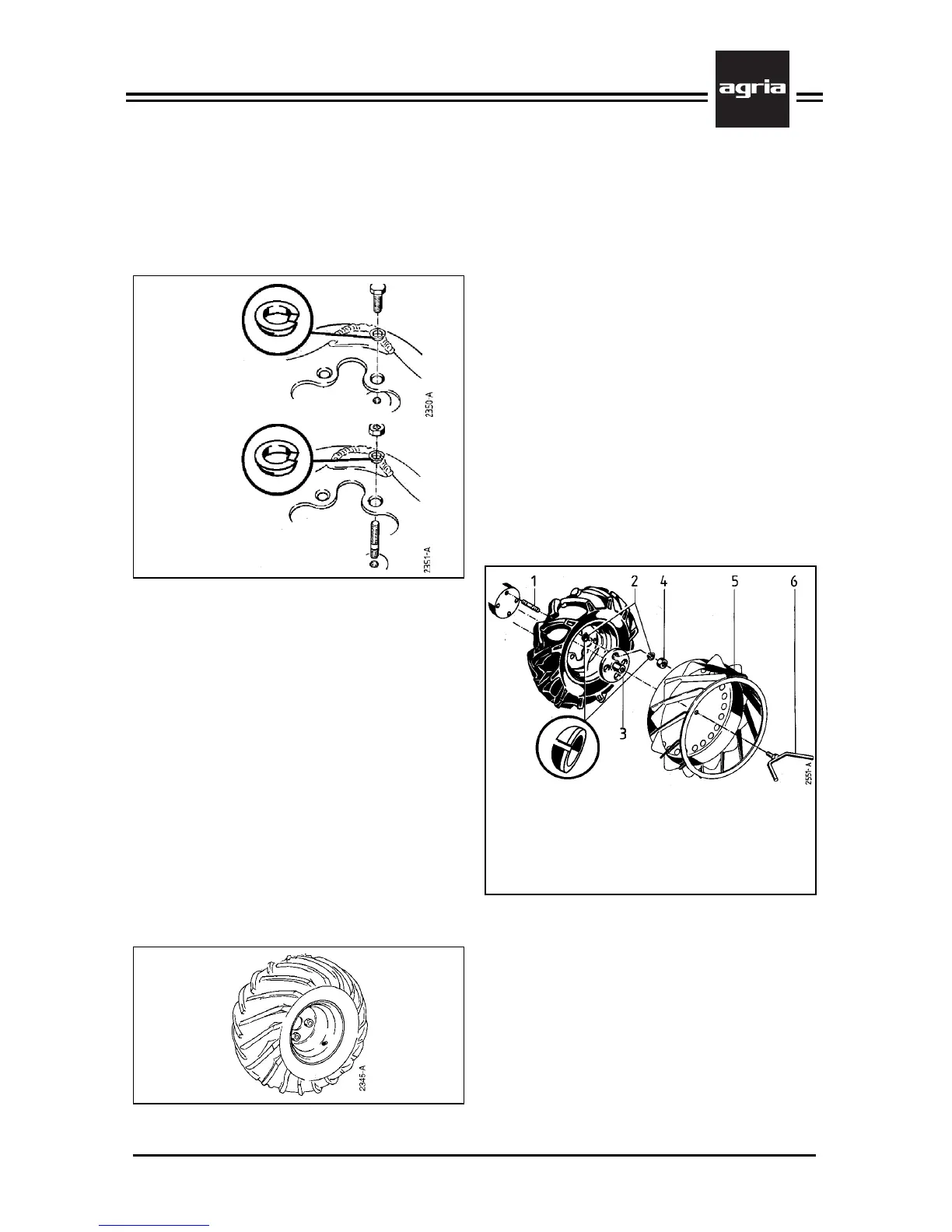

Wheel Attachment Bolts
For version B, screw short threaded end
of double end studs tightly into hub
adapter, if possible, glue with LOCTITE
270 or UHU-Plus.
Drive-Wheels
For full tractive power, mount wheels
with pointed parts of lugs showing in
travel direction (wheels seen from
above). Fit the countersunk side of
spring-lock washer into countersink-
type holes of disk wheel (see fig. “Wheel
Attachment Bolts”).
Extra Wide Drive-Wheels
Item No. 5490 611:
16 x 6.50 - 8 Terra Grip
Usage: Mowing on soft (boggy) ground.
3. Devices and Operating Elements
1 Double-end stud
2 Ball spring ring
3 Flange
4 Hex nut
5 Strake wheel
6 Tommy screw
A
B
