30 Power Mower 5400 Edition 02.97
1 Hex nuts
2 Running bases
3. Devices and Operating Elements
1 Extra weight
2 Hex bolt
3 Hex nut
4 Spring washer

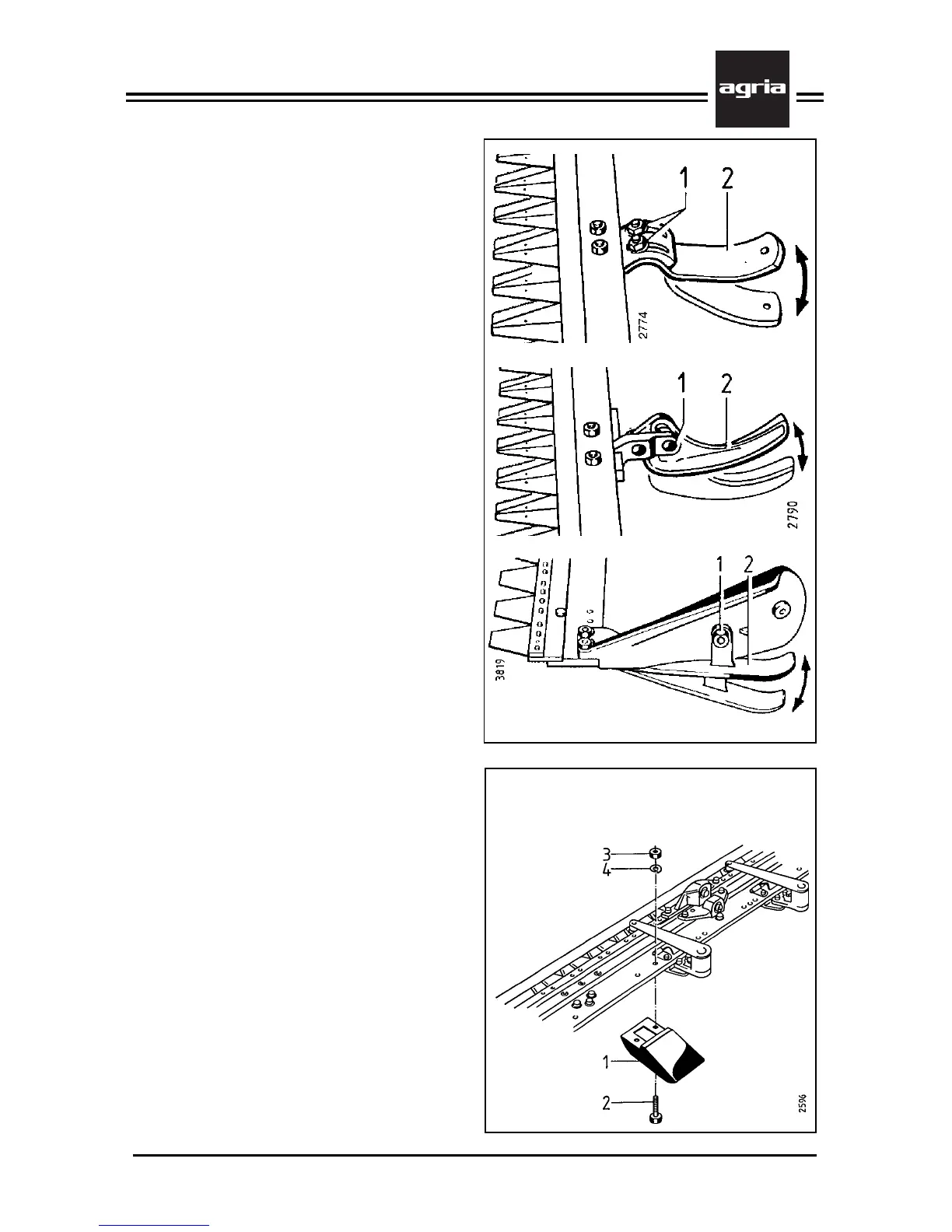

Cutter Bar Running Bases
There are height-adjustable running
bases to prevent the cutter bar from
being damaged by stones, etc. during
operation. This specification depends on
the cutter bar version or is optional
equipment.
Height adjustment:
l
Loosen hex nut (1)
l
Lift the cutter bar off the ground and
adjust the running base (2) to the de-
sired height
l
Retighten hex nut
l
Set all running bases to the same
height
Extra weights for cutter bars
If the cutter bar is not heavy enough for
slope operation (this applies in particu-
lar to the Universal cutter bar), it is pos-
sible to replace the outer skids by extra
weights (item no. 5547 931).
In addition, a second pair of extra
weights can be attached in place of the
running bases. This takes a long hex
head bolt M 8 x 45.
