Agria 5400 - Cutter Bar Assembly

Edition 02.97 Power Mower 5400 27
3. Devices and Operating Elements
1 Mowing knife
2 Knife driver
3 Spring washer
4 Hex head bolt
1 Mowing knife
2 Spring washer
3 Hex nut
4 Running base
5 Truss head screw
1 Mowing knife
2 Outer shoes
3 Hex nut
4 Spring washer
5 Hex head bolt
6 Hex nut
7 Running base
8 Square bolt

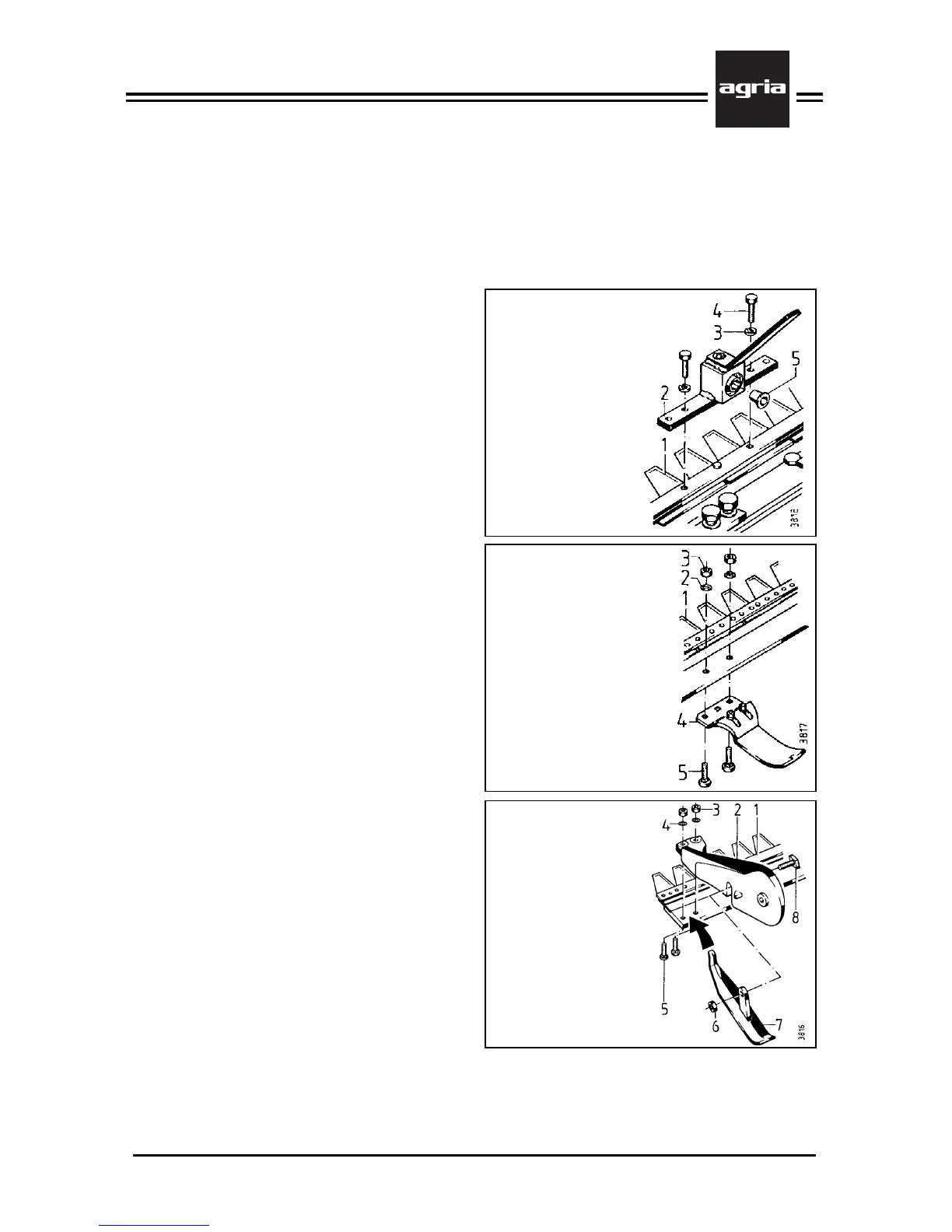

Rocker Arm Mowing Attachment
Cutter Bar Assembly
W
Wear safety gloves when
commissioning the cutter bar
l Attach the knife driver (2) to the mow-
ing knives (1) using bolts (4) and spring
washers (3) (torque = 23 Nm);
Remove plug (5).
l Attach the running bases (4) to the
back of the cutter bar using bolt (5),
washer (2) and nut (3).
l On the municipal cutter bar attach the
outer shoes (2) to both ends of the cut-
ter bar on the back using bolt (5), washer
(4) and nut (3).
Then attach the skids (7) with bolts (8)
and nuts (6). The peg at the front end of
the running base snugs in the recess
between the shoe and the back of the
cutter bar.
l For adjustment of the running bases,
see instructions on page 30.
