13
To refit the fabric neck roll, insert the
pin of the zip into its housing (1), fully
close the zip and attach the Velcro (2)
as shown in the figure.
4) RETENTION SYSTEM
There are three types of retention system:
- DD
- Quick release buckle
- Micrometric adjustment buckle
The instructions for the use of all three types are given below.

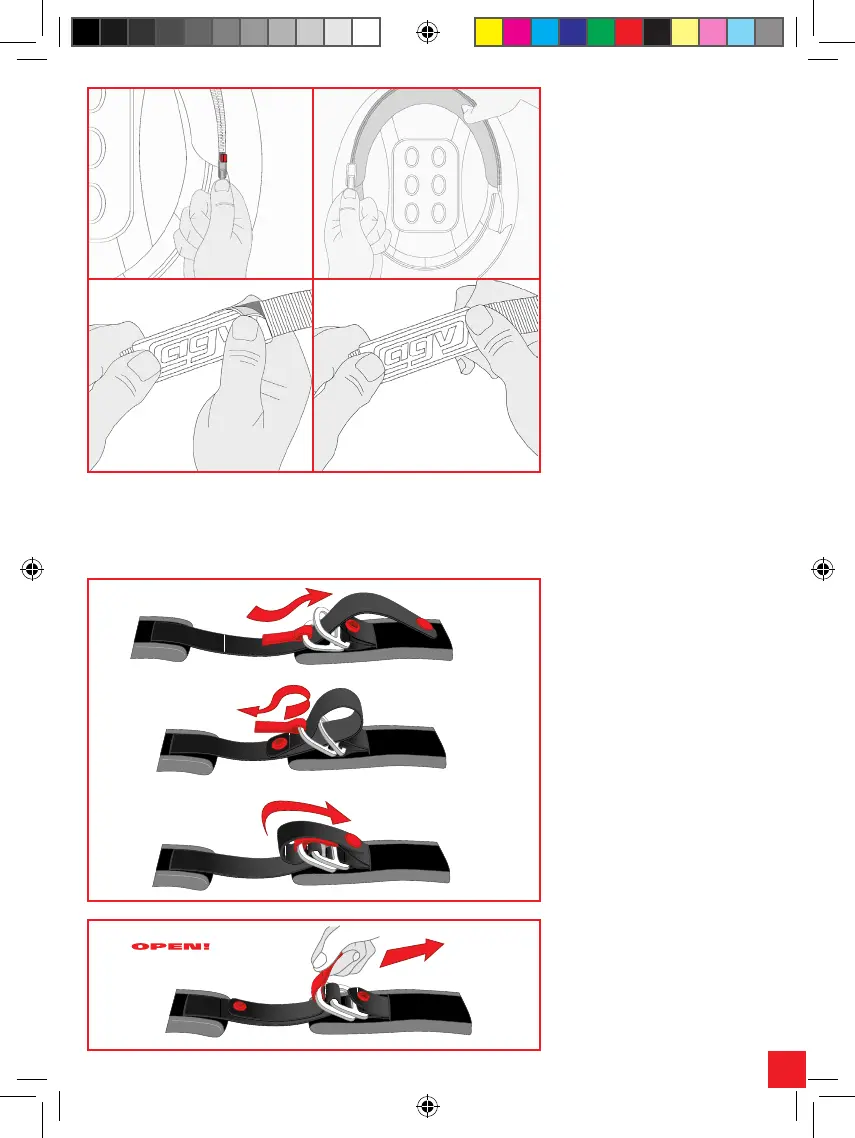

4.1) DD retention system
To fasten the helmet, slot the tape
through the two rings (1), pull the end
of the tape (2) until the strap presses
against the jaw and click the anti-flap-
ping press-stud (3) into place as shown
in the figure.
Check that the helmet fits snugly (see
the paragraph entitled “Choosing the
right helmet” in the “Safety Warning”
booklet).
To remove the helmet, release the
press-stud by pulling the end of the
tape and loosen the tape, pulling it
through the rings, using the red tab as
shown in the figure.
3.5) Removal / Installation of throat
cover
To remove the throat cover, open the
Velcro and remove it as shown in the
figure.
To refit the throat cover, position it
around the strap and close the Velcro,
ensuring that the closure system re-
mains in the lower part of the strap as
shown in the belt.
1
1
2
3
2
