5.2 REMOVAL
Prerequisite: remove the visor from the helmet (see 3.2).

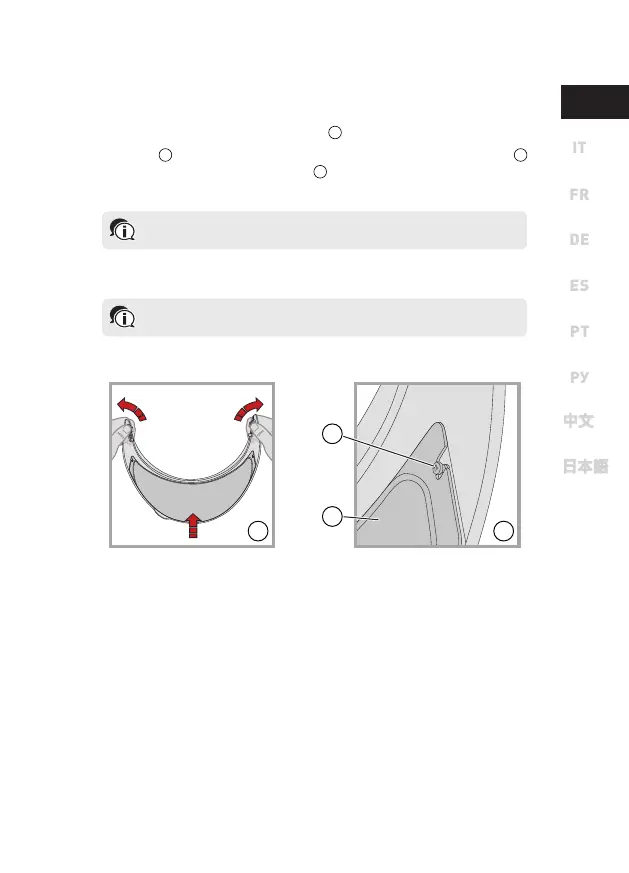

Stretch the visor slightly by grasping it at the ends
3
.
Lift the lens
A
by acting on its lower central part, then release it from the eccentric pawlsi
B
on the visor; first on one side, then on the other
4
.
The lens is now detached. Remove it.
The Pinlock
®
lens should be handled with care and without the use of tools that could
scratch it or abrade its surface.
5.3 TENSIONING
See the illustrative document included in the Pinlock
®
lens packaging.
3 4
A
B
