ahlmann AL 70e - Attachments al 70 E; Buckets

3-10 K65E/K75D/K95D/K95i 3-10 K65E/K75D/K95D/K95i
AA4
°
AA4
°

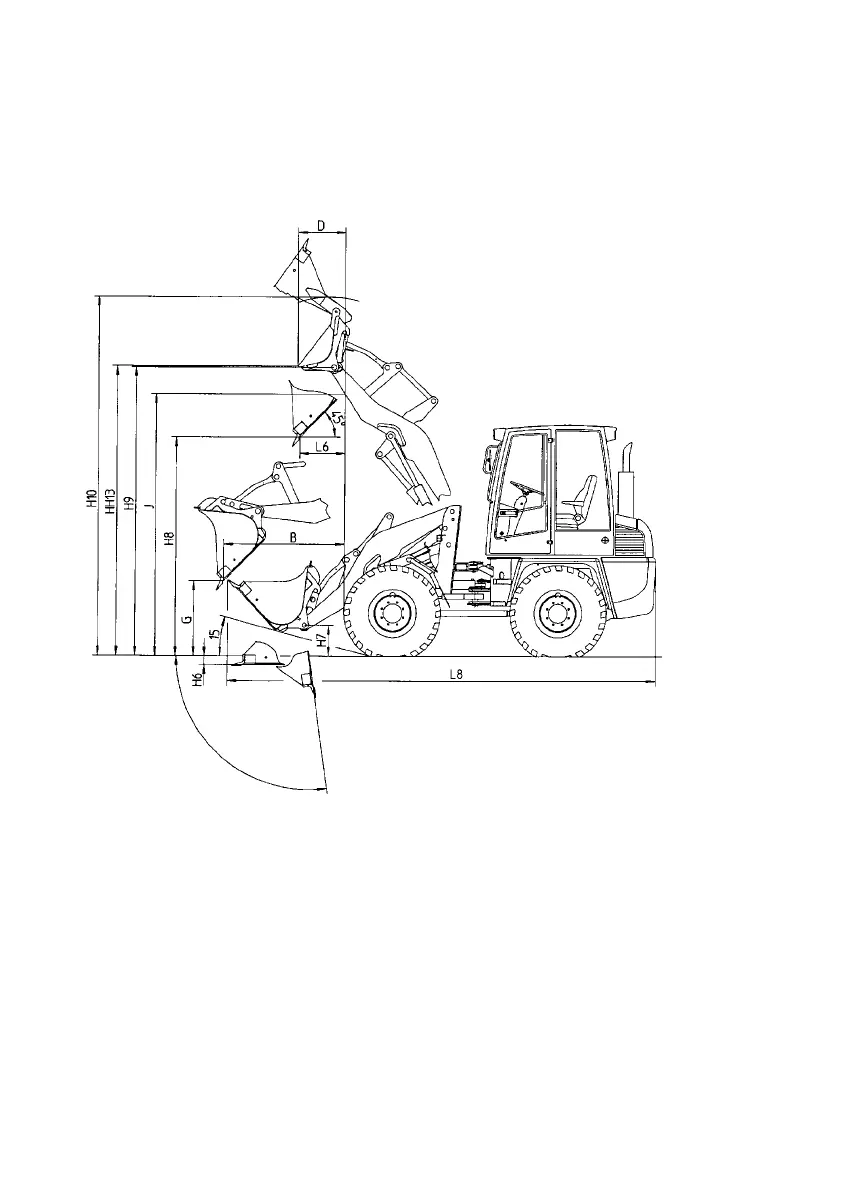

3.4 Attachments AL 70e
NOTE
- The technical data refer to tires of size 335/80 R 18.
3.4.1 Buckets
3.4 Attachments AL 70e
NOTE
- The technical data refer to tires of size 335/80 R 18.
3.4.1 Buckets
Bucket type Standard bucket
Bucket volume m³ 0,7
Bucket width mm 1800
Dead weight kg 260
Loads according to DIN 24094
*
Bulk density t/m³ 2,0
Rated dump load
- frontal kg 3240
- swiveled kg 2840
Rated payload
- frontal kg 1620
- swiveled kg 1420
Operating weight without attachment * kg 4620
* with water in the rear axle wheels
Bucket type Standard bucket
Bucket volume m³ 0,7
Bucket width mm 1800
Dead weight kg 260
Loads according to DIN 24094
*
Bulk density t/m³ 2,0
Rated dump load
- frontal kg 3240
- swiveled kg 2840
Rated payload
- frontal kg 1620
- swiveled kg 1420
Operating weight without attachment * kg 4620
* with water in the rear axle wheels
