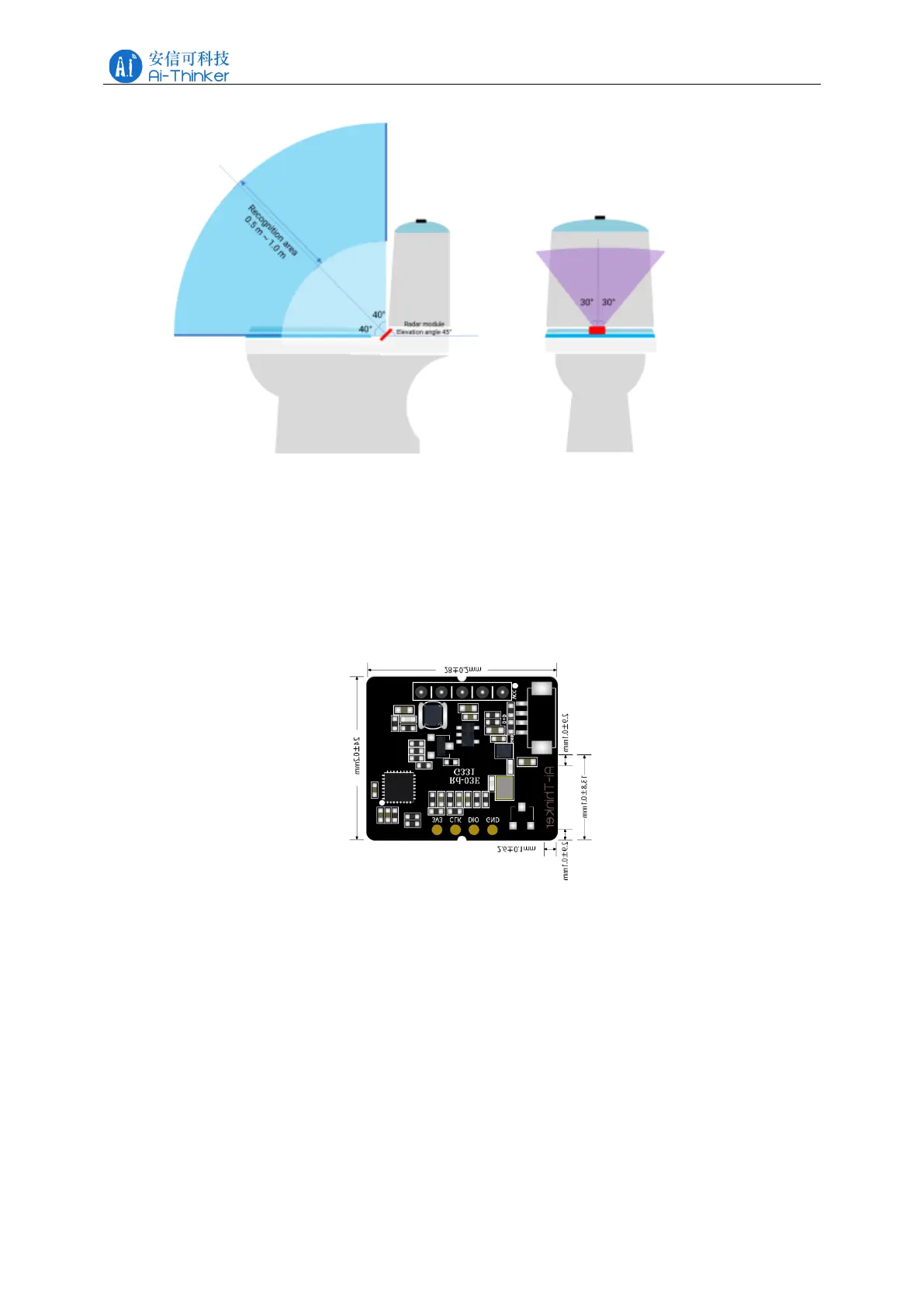

Figure 7-3 Schematic diagram of radar gesture recognition area
8 Rendering
Figure 8-1 shows the mechanical dimensions of the Rd-03E hardware. The figures in the
figure are in mm, with a Rd-03E plate thickness of 1.2mm and a tolerance of 10%.
Figure 8-1 Rd-03E rendering
9 Gesture Description
9.1 Gesture Definition
When sending gesture commands to the radar, the person should stand facing the radar with his
arms as close as possible to the main beam of the radar. Depending on the relative orientation
of the standing position and the radar, the action arm should be adjusted accordingly, as shown
in Figure 9-1.
