Rd-03E Gesture Recognition User Manual V1.0.0
Copyright © 2023 Shenzhen Ai-Thinker Technology Co., Ltd All Rights Reserved

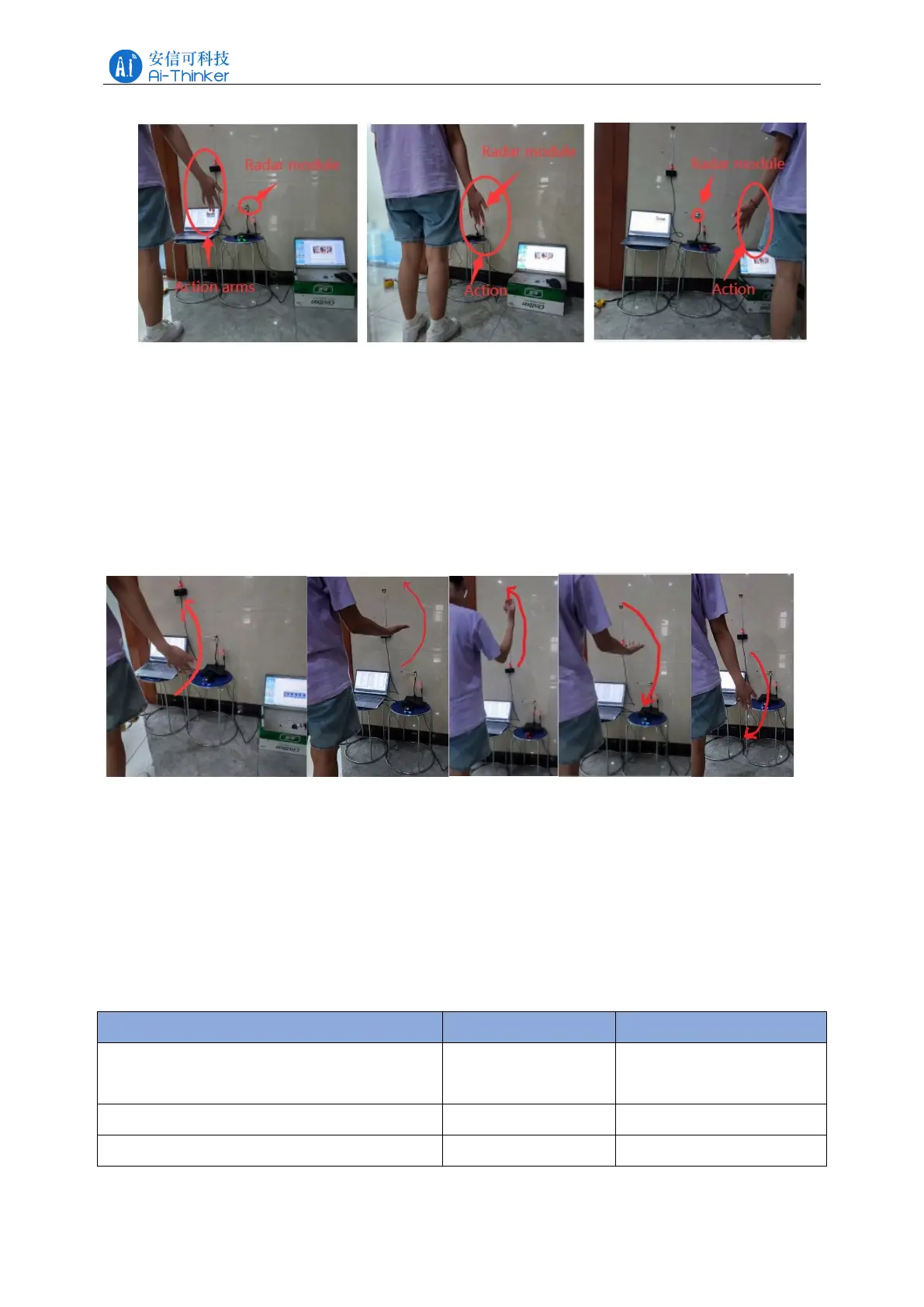

Figure 9-1 Position of Human and Radar When Sending Radar Gestures
Waving the front hand naturally droop, swing the palm up, raise the upper arm to the upper
arm perpendicular to the ground, and then keep the palm up to let the arm naturally fall back,
as shown in Figure 9-2. The arm should naturally move up and down in the vertical direction
during the swing, not oblique to the inside or outside of the body. The two gesture waves
should be more than 1.5 seconds apart. When testing the radar installed on the toilet, the
waving arm should pass above the center of the toilet (ie, the toilet flush hole).
Figure 9-2 Schematic diagram of gesture waving
9.2 gesture speed
The arm swings back and forth from bottom to top at a constant speed in about 1.5s.
9.3 gesture parameters
Table 9-1 lists the configuration and description of gesture parameters.
Table 9-1 Gesture parameter description
