⚫ Gesture flip cover (in open state);
⚫ The cover is closed by people (when the cover is opened);
⚫ Close the cover when the person goes through the closing circle (in the state of opening the
cover circle);

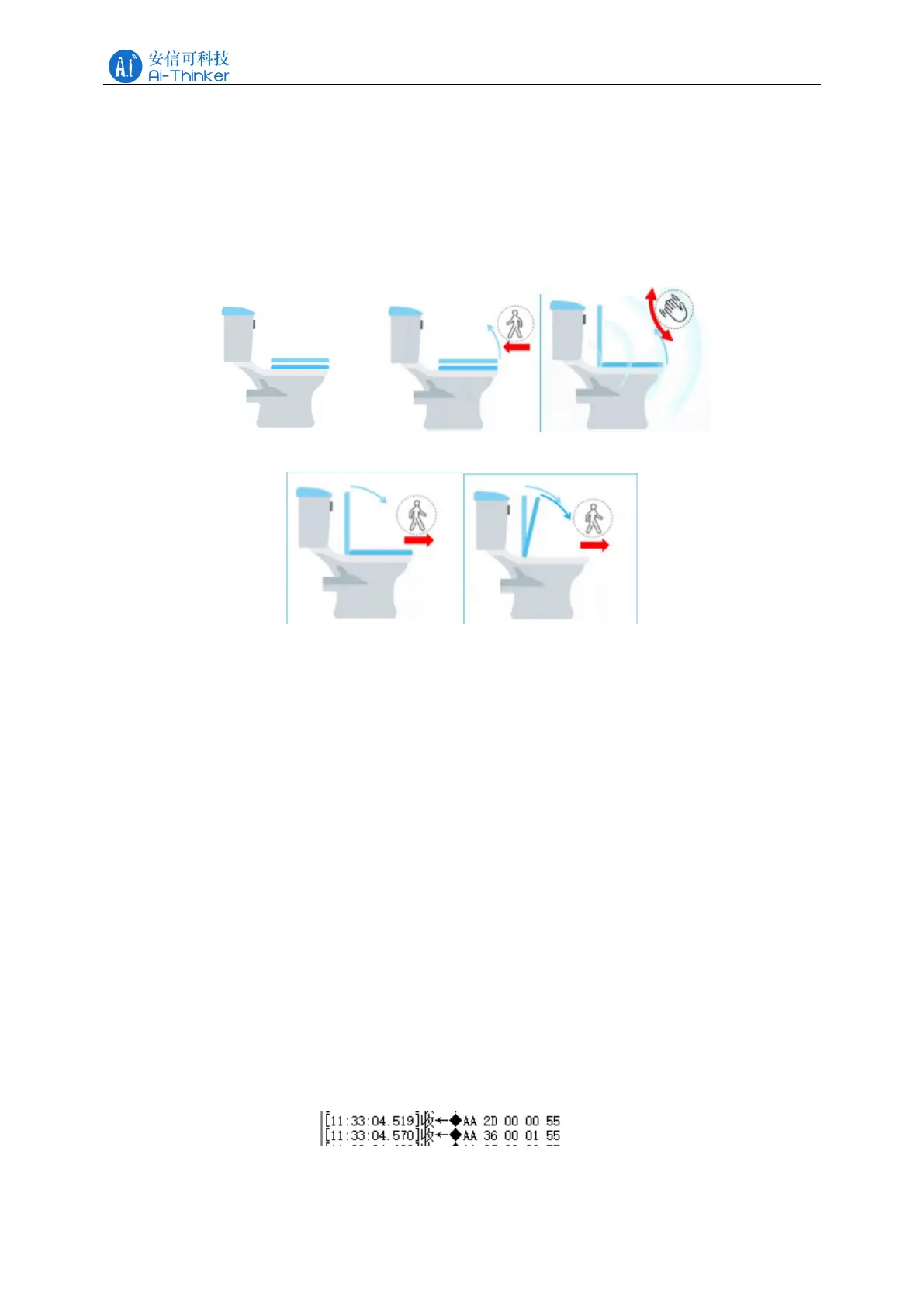

A schematic diagram of the above state is shown in FIG. 4-4.
(a) No one state (b) People come to open the cover (c) Gesture circle turning
(d) people go to close the cover (e) people go to close the cover
Figure 4-4 Schematic Diagram of Toilet Status
The unmanned delay refers to the time interval for delaying the report of the unmanned
result when the radar self-detects the unmanned state. Developers can adjust the parameter by
modifying the parameter NobodyDebounceTime = "1000 ° in the
XenG102STTool/appConfig.xml file under the root directory of the host computer tool, and its
default value is 1000 ms.
5 Communication protocol
This communication protocol is mainly used by developers who need to separate from
visualization tools for secondary development. The Rd-03E hardware communicates with the
outside world through the serial port. The serial port outputs the radar data processed by the
algorithm by frame. The format of a frame of data is:
AA + distance information (two bytes in cm) + gesture information (1 byte) +55
The distance information is in little-end format, and the data example is shown in Figure 5-1.
The output delay of the gesture result is about 0.25s.
Radar serial port data parsing distance is as follows：
