2.6 Mounting and wiring

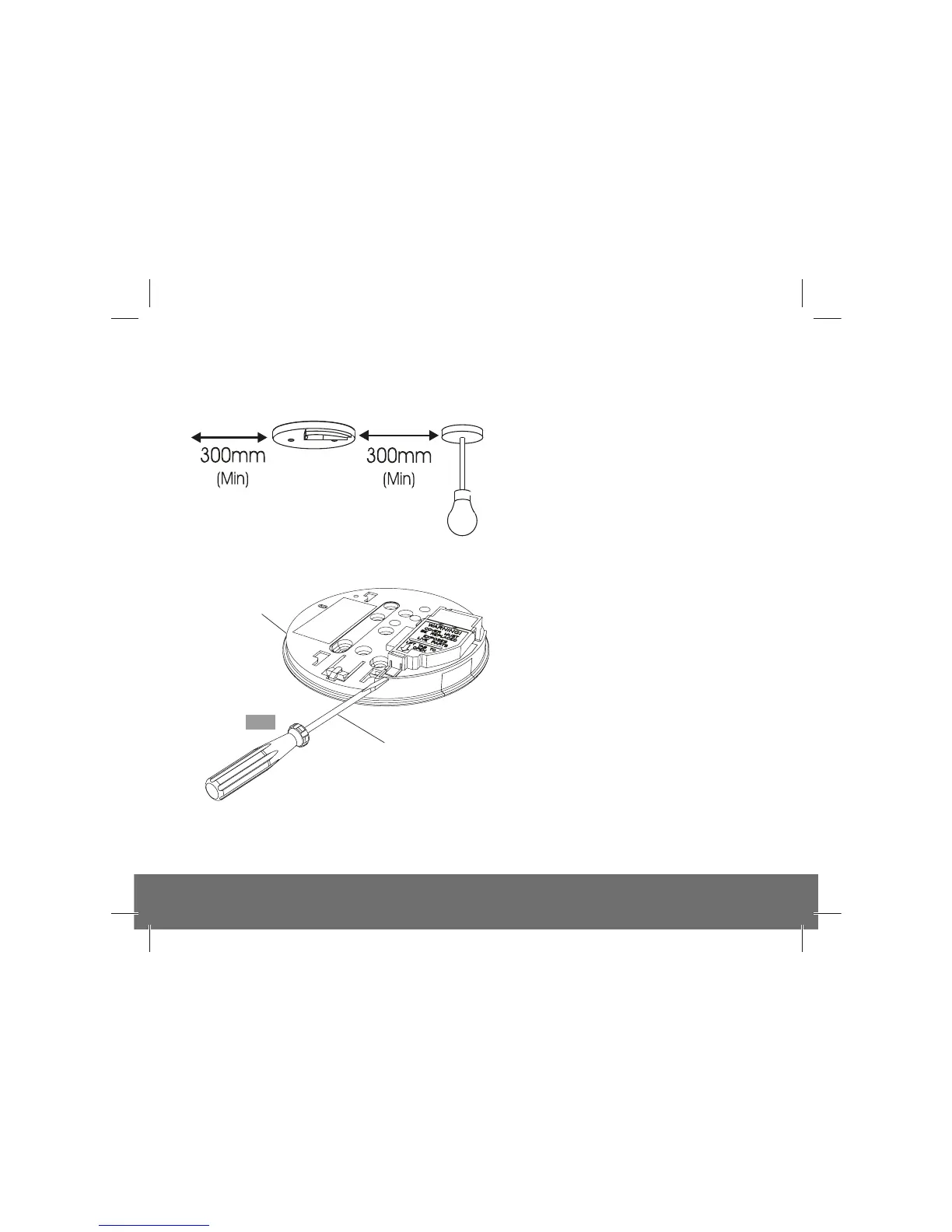

Foam ceiling gasket
(must be in place)
Insert screwdriver
to lift and remove
wiring cover
1. Select a location complying with the advice
in previous sections.
2. Disconnect the AC mains supply from the
circuit that is going to be used.
Fig.4
3. Lift off the wiring cover as shown in Figure 4.
The wiring must be connected to the terminal
block on the mounting plate as follows:
L: Live - connect to the house wires coloured
brown or marked L.
N: Neutral - connect to the house wires
coloured blue or marked N.
IC: Interconnect - see figures 5 and 6 and
further information in Section 2.6.
Note: Wiring must be installed in compliance
with local regulations.
