6

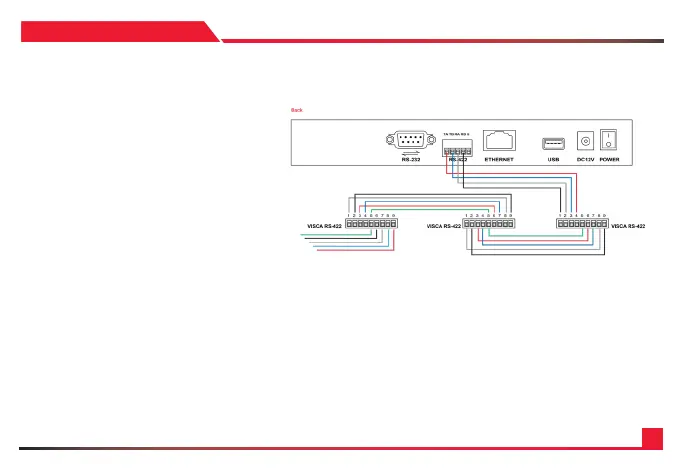

Using RS422 requires the specic connection labeled
above. In order to chain more cameras, please go
out of the rst camera with the following wiring and
into the next with the guide above. Once complete,
please select protocol VISCA, and address and
baudrate to set the camera.
Tip:
Don’t forget to set the ID address for each camera.
SECTION: 2
RS422 Connection:
Ra < --------- > TXD IN-
Rb < --------- > TXD IN+
Ta < --------- > RXD IN-
Tb < --------- > RXD IN+
Joystick Camera#1 Camera#2
TXD OUT+ < --------- > RXD IN+
TXD OUT- < --------- > RXD IN-
RXD OUT+ < --------- > TXD IN+
RXD OUT- < --------- > TXD IN-
< --------- >
