96

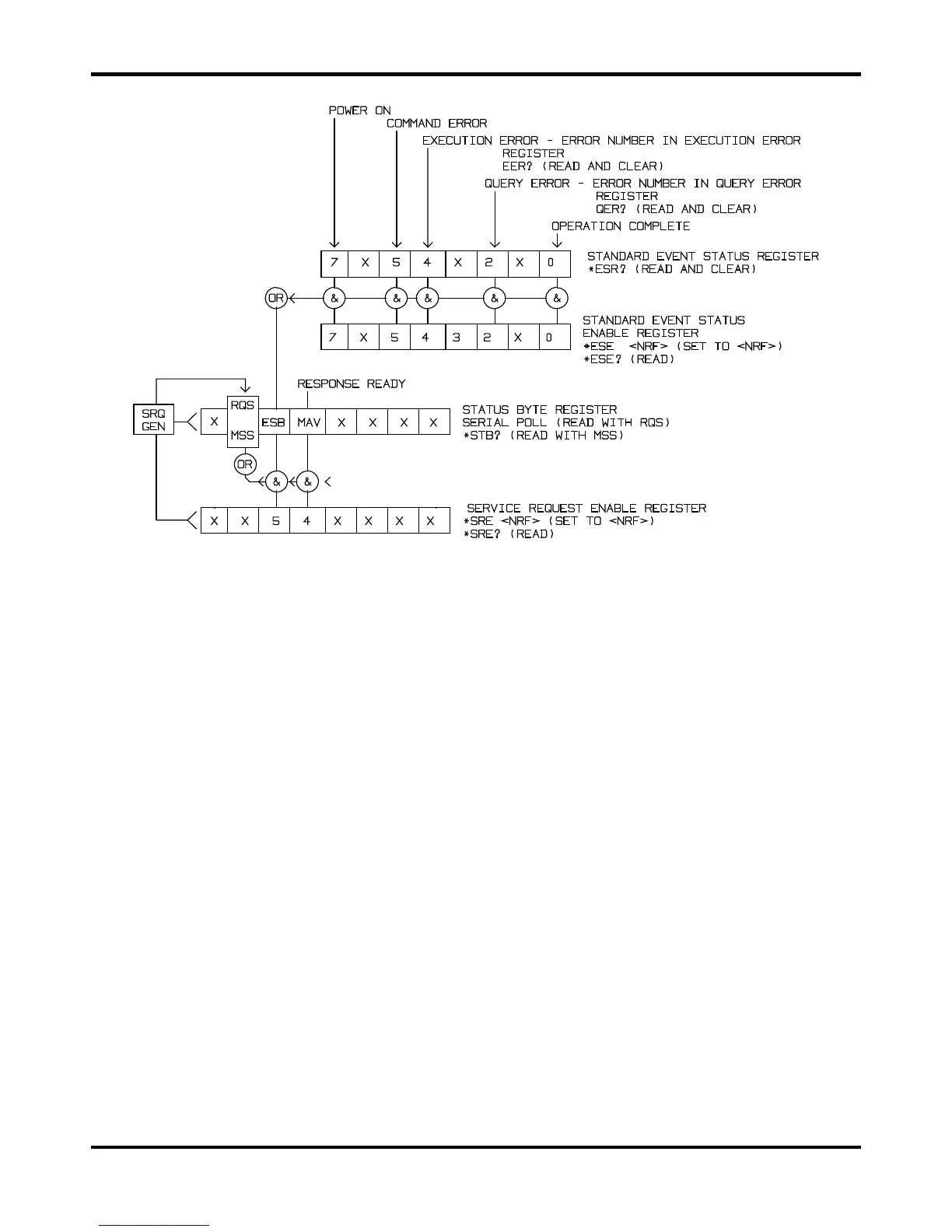

Status Model
Power-on and Remote Operation Default Settings
The following instrument status values are set at power on:
Status Byte Register
= 0
Service Request Enable Register †
= 0
Standard Event Status Register
= 128 (pon bit set)
Standard Event Status Enable Register †
= 0
Execution Error Register
= 0
Query Error Register
= 0
Parallel Poll Enable Register †
= 0
† Registers marked thus are specific to the GPIB section of the instrument and are of limited use
via other interfaces.
The instrument will be in local state with the front panel controls active.
The instrument parameters at power-on are always the same as at last switch off with the exception
of the output status. By default the output is always off at power on but the user may change this
from the front panel to be the same at power on as it was at switch off, see Power On State
paragraph in the Utility Menus - System section.
The *RST (reset) interface command resets the instrument to the Remote Operation Default
settings.
