2.1.2 LEDs

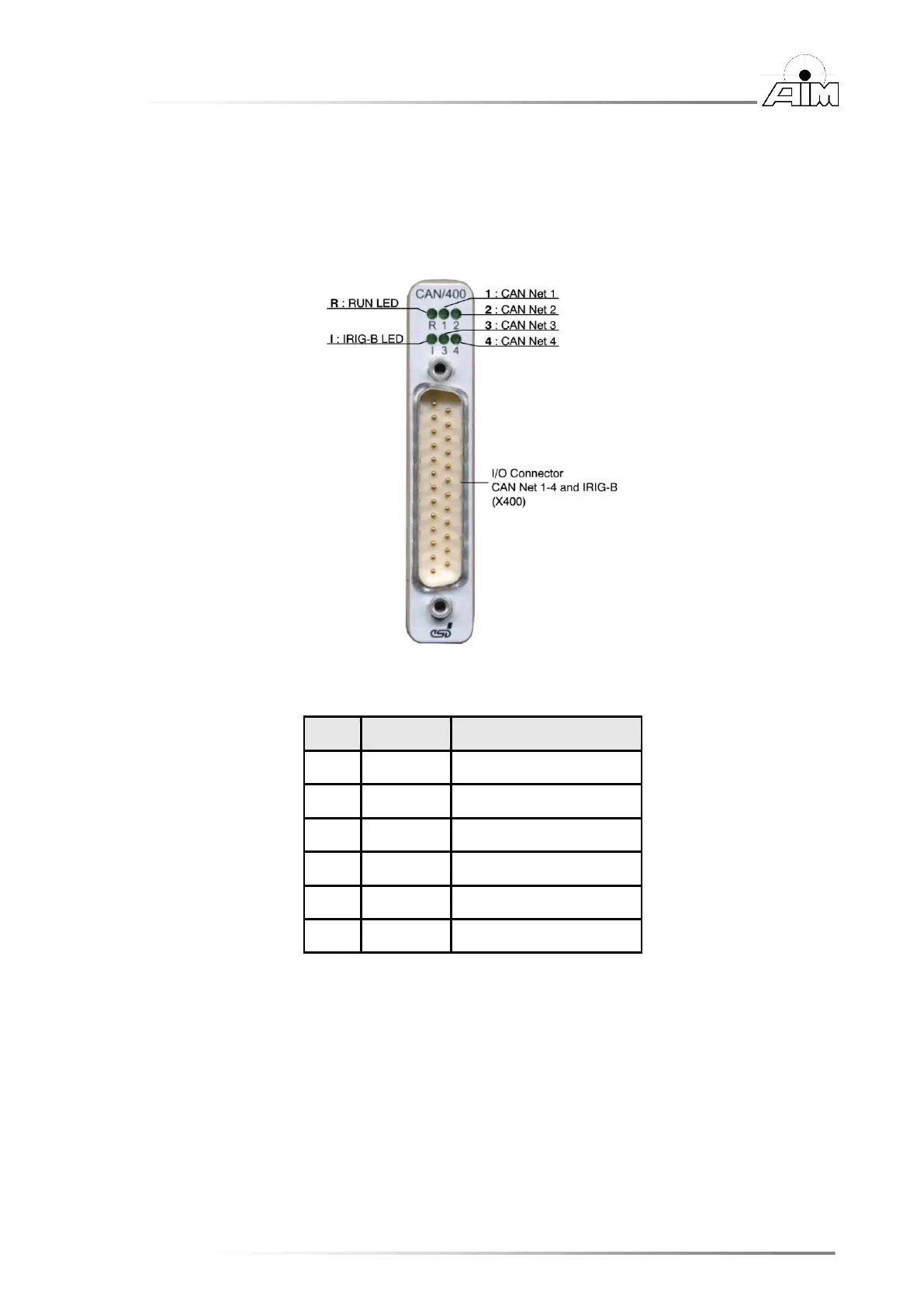

The AMC825-2/4 is equipped with 6 green LEDs in the front panel.
LED
Function
Indication (LED on)
R
RUN
Board (FPGA) booted
I
IRIG-B
IRIG-B Link
1
CAN1
Traffic on CAN-Line 1
2
CAN2
Traffic on CAN-Line 2
3
CAN3
Traffic on CAN-Line 3
4
CAN4
Traffic on CAN-Line 4
