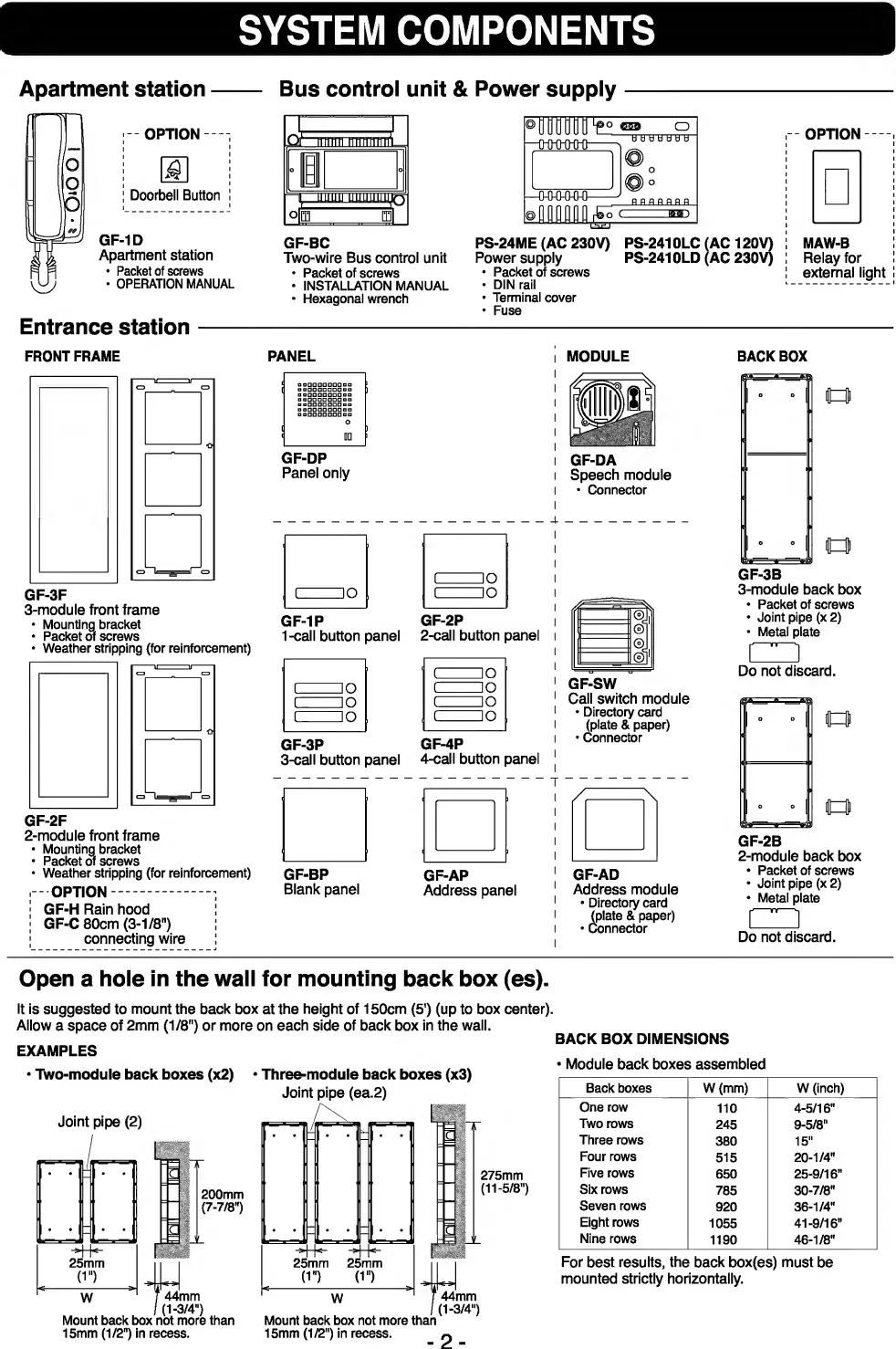

SYSTEM COMPONENTS
Apartment station
OPTION
Doorbell Button
GF-1D
Apartment station
• Packet of screws
• OPERATION MANUAL
Entrance station
Bus control unit & Power supply
1
r
dt
nnnn nnnnnnL
o
H
uuuu iuuuuujg
oim mi
— (HHHHH) -
—u \i u u y a tj
©o
©o
_R R fl fl R R R
—WW-O-O-Q -
©NNMMNN < ■ -E3D
GF-BC
Two-wire Bus control unit
• Packet of screws
• INSTALLATION MANUAL
• Hexagonal wrench
PS-24ME (AC 230V)
Power supply
• Packet of screws
• DIN rail
• Terminal cover
• Fuse
PS-241 OLC (AC 120V)
PS-241 OLD (AC 230V)
OPTION
MAW-B
Relay for
external light
FRONT FRAME
PANEL
MODULE
GF-3F
3-module front frame
• Mounting bracket
• Packet of screws
• Weather stripping {for reinforcement)
2-module front frame
• Mounting bracket
■ Packet of screws
• Weather stripping {for reinforcement)
OPTION
; GF-H Rain hood I
; GF-C 80cm (3-1/8")
connecting wire I
o
<1_M
GF-DP
Panel only
GF-DA
Speech module
• Connector
4-
GF-1P
1-call button panel
1 I Q
C IQ
[ HO
GF-3P
3-call button panel
GF-BP
Blank panel
GF-2P
2-call button panel
C IQ
( IQ
C IQ
( I Q
GF-4P
4-call button panel
GF-AP
Address panel
GF-SW
Call switch module
* Directory card
{plate & paper)
• Connector
GF-AD
Address module
• Directory card
BACK BOX
a
a
GF-3B
3-module back box
• Packet of screws
• Joint pipe (x 2)
• Metal plate
□
Do not discard.
GF-2B
2-module back box
• Packet of screws
• Joint pipe (x 2)
• Metal plate
□
Do not discard.
Open a hole in the wall for mounting back box {es).
It is suggested to mount the back box at the height of 150cm (5') (up to box center).
Allow a space of 2mm (1/8") or more on each side of back box in the wall.
EXAMPLES
‘ Two-module back boxes (x2) • Three-module back boxes (x3)
Joint pipe (ea.2)
15mm (1/2") in recess. 15mm (1/2") in recess.
BACK BOX DIMENSIONS
• Module back boxes assembled
Back boxes W (mm) W (inch)
One row
110 4-5/16"
Two rows
245 9-5/8"
Three rows
380 15"
Four rows
515
20-1/4”
Five rows
650 25-9/16"
Six rows
785 30-7/8"
Seven rows
920 36-1/4"
Eight rows
1055 41-9/16"
Nine rows
1190
46-1/8"
For best results, the back box(es) must be
mounted strictly horizontally.
