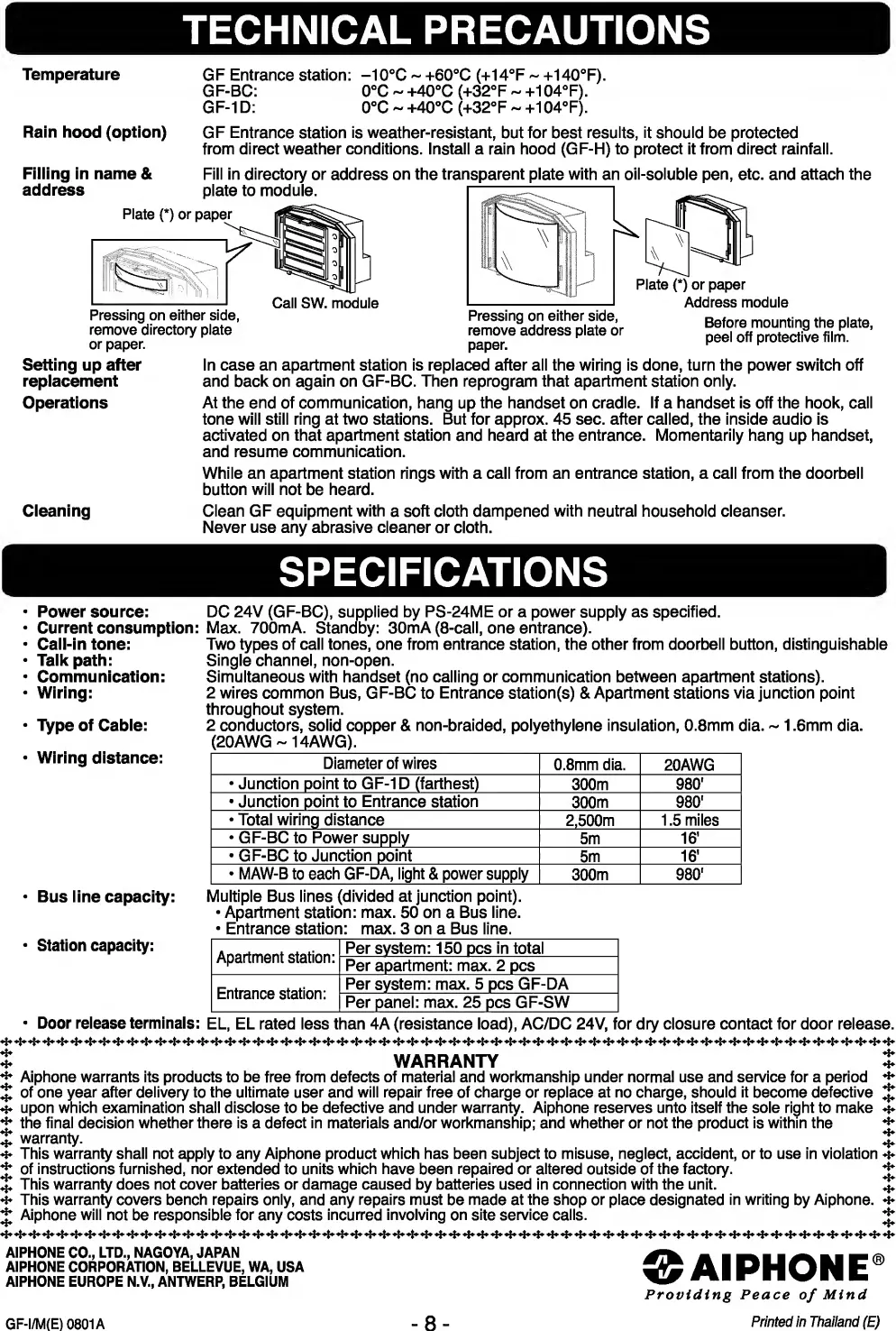

TECHNICAL PRECAUTIONS
1
Temperature
GF Entrance station: -10°C ~ +60°C (+14°F ~ +140°F).
GF-BC: 0°C ~ +40°C (+32°F ~ +104°F).
GF-1D: 0°C ~ +40°C (+32°F ~ +104°F).
Rain hood (option)
GF Entrance station is weather-resistant, but for best results, it should be protected
from direct weather conditions. Install a rain hood (GF-H) to protect it from direct rainfall.
Filling in name &
address
le & Fill in directory or address on the transparent plate with an oil-soluble pen, etc. and attach the
plate to module. | I —
Plate(*)orpaper > h-v, I ^
Pressing on either side
remove directory plate
or paper.
Setting up after
replacement
Operations
Plate n or paper
—J Call SW. module - : -—— --— Address module
hh r occ^i 1+r Before mounting the plate,
P' ate remove address plate or peel off protective film.
In case an apartment station is replaced after all the wiring is done, turn the power switch off
and back on again on GF-BC. Then reprogram that apartment station only.
At the end of communication, hang up the handset on cradle. If a handset is off the hook, call
tone will still ring at two stations. But for approx. 45 sec. after called, the inside audio is
activated on that apartment station and heard at the entrance. Momentarily hang up handset,
and resume communication.
While an apartment station rings with a call from an entrance station, a call from the doorbell
button will not be heard.
Cleaning
Clean GF equipment with a soft cloth dampened with neutral household cleanser.
Never use any abrasive cleaner or cloth.
SPECIFICATIONS
Power source: DC 24V (GF-BC), supplied by PS-24ME or a power supply as specified.
Current consumption: Max. 700mA. Standby: 30mA (8-call, one entrance).
Call-in tone: Two types of call tones, one from entrance station, the other from doorbell button, distinguishable
Talk path: Single channel, non-open.
Communication: Simultaneous with handset (no calling or communication between apartment stations).
Wiring: 2 wires common Bus, GF-BC to Entrance station(s) & Apartment stations via junction point
throughout system.
Type of Cable: 2 conductors, solid copper & non-braided, polyethylene insulation, 0.8mm dia. - 1.6mm dia.
(20AWG ~ 14AWG).
Type of Cable:
Wiring distance:
Diameter of wires
0.8mm dia.
20AWG
Junction point to GF-1D (farthest)
300m
980'
Junction point to Entrance station
300m
980'
Total wiring distance
2,500m
1.5 miles
GF-BC to Power supply
5m
16’
GF-BC to Junction point
5m 16’
MAW-B to each GF-DA, light & power supply
300m 980'
Bus line capacity:
Station capacity:
Multiple Bus lines (divided at junction point).
• Apartment station: max. 50 on a Bus line.
• Entrance station: max. 3 on a Bus line.
* . , . ..
Per svstem: 150 pcs in total
Apartment station:
Per apartment: max. 2 pcs
Entrance station:
Per system: max. 5 pcs GF-DA
Per panel: max. 25 pcs GF-SW
• Door release terminals: EL, EL rated less than 4A (resistance load), AC/DC 24V, for dry closure contact for door release.
WARRANTY
Aiphone warrants its products to be free from defects of material and workmanship under normal use and service for a period
of one year after delivery to the ultimate user and will repair free of charge or replace at no charge, should it become defective
upon which examination shall disclose to be defective and under warranty. Aiphone reserves unto itself the sole right to make
the final decision whether there is a defect in materials and/or workmanship; and whether or not the product is within the
warranty.
This warranty shall not apply to any Aiphone product which has been subject to misuse, neglect, accident, or to use in violation
of instructions furnished, nor extended to units which have been repaired or altered outside of the factory.
This warranty does not cover batteries or damage caused by batteries used in connection with the unit.
This warranty covers bench repairs only, and any repairs must be made at the shop or place designated in writing by Aiphone.
Aiphone will not be responsible for any costs incurred involving on site service calls.
AIPHONE CO., LTD., NAGOYA, JAPAN
AIPHONE CORPORATION, BELLEVUE, WA, USA
AIPHONE EUROPE N.V., ANTWERP, BELGIUM
GF-I/M(E) 0801A
® AIPHONE®
Providing Peace of Mind
Printed in Thailand (E)
