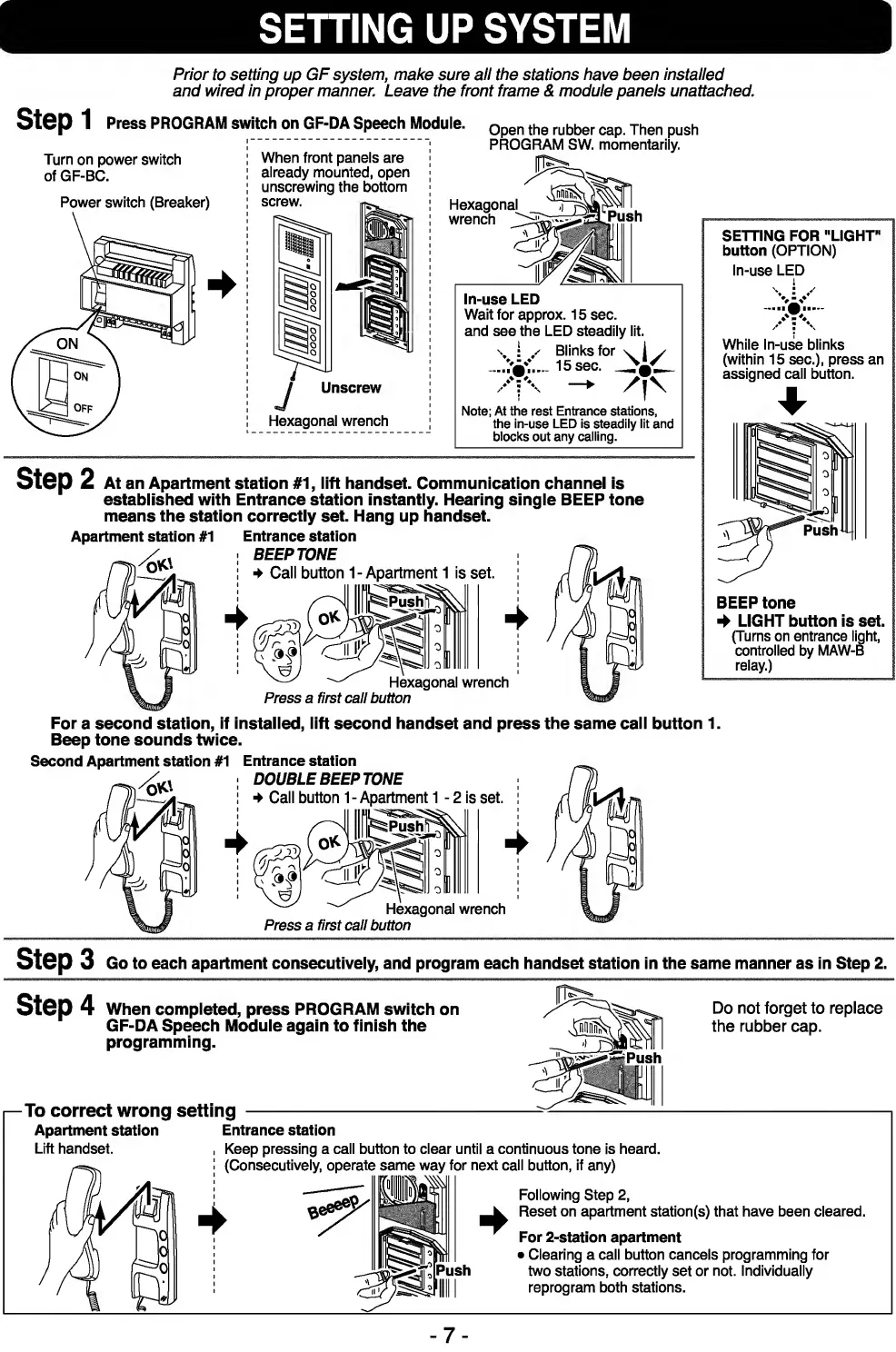

SETTING UP SYSTEM
J
Prior to setting up GF system, make sure all the stations have been installed
and wired in proper manner. Leave the front frame & module panels unattached.
Step 1 Press PROGRAM switch on GF-DA Speech Module.
Turn on power switch
of GF-BC.
Power switch (Breaker)
When front panels are
already mounted, open
unscrewing the bottom
screw.
J Unscrew
Hexagonal wrench
Open the rubber cap. Then push
PROGRAM SW. momentarily.
Hexagonal
wrench
2&>ush
SETTING FOR "LIGHT"
button (OPTION)
In-use LED
In-use LED
Wait for approx. 15 sec.
and see the LED steadily lit.
v s Blinks for v I >
15 sec.
/ 7 \ - ► /|\
Note; At the rest Entrance stations,
the in-use LED is steadily lit and
blocks out any calling.
While In-use blinks
(within 15 sec.), press an
assigned call button.
Step 2 At an Apartment station #1, lift handset. Communication channel is
established with Entrance station instantly. Hearing single BEEP tone
means the station correctly set. Hang up handset.
Apartment station #1 Entrance station
_ X... ! BEEP TONE : Ol
4 Call button 1-Apartment 1 is set.
■ x?) ° K ) w!^ToPn
Hexagonal wrench
Press a first call button
BEEP tone
4 LIGHT button is set.
(Turns on entrance light,
controlled by MAW-B
relay.)
For a second station, if installed, lift second handset and press the same call button 1.
Beep tone sounds twice.
Second Apartment station #1 Entrance station
DOUBLE BEEP TONE /l)
4 Call button 1 - Apartment 1 - 2 is set.
I^SPush
Hexagonal wrench
Press a first call button
Step 3 Go to each apartment consecutively, and program each handset station in the same manner as in Step 2.
Step 4 When completed, press PROGRAM switch on
GF-DA Speech Module again to finish the
programming.
Do not forget to replace
the rubber cap.
To correct wrong setting -^-
Apartment station Entrance station
Lift handset. , Keep pressing a call button to clear until a continuous tone is heard.
I (Consecutively, operate same way for next call button, if any)
Following Step 2,
Reset on apartment station(s) that have been cleared.
jt'fPush
For 2-station apartment
• Clearing a call button cancels programming for
two stations, correctly set or not. Individually
reprogram both stations.
