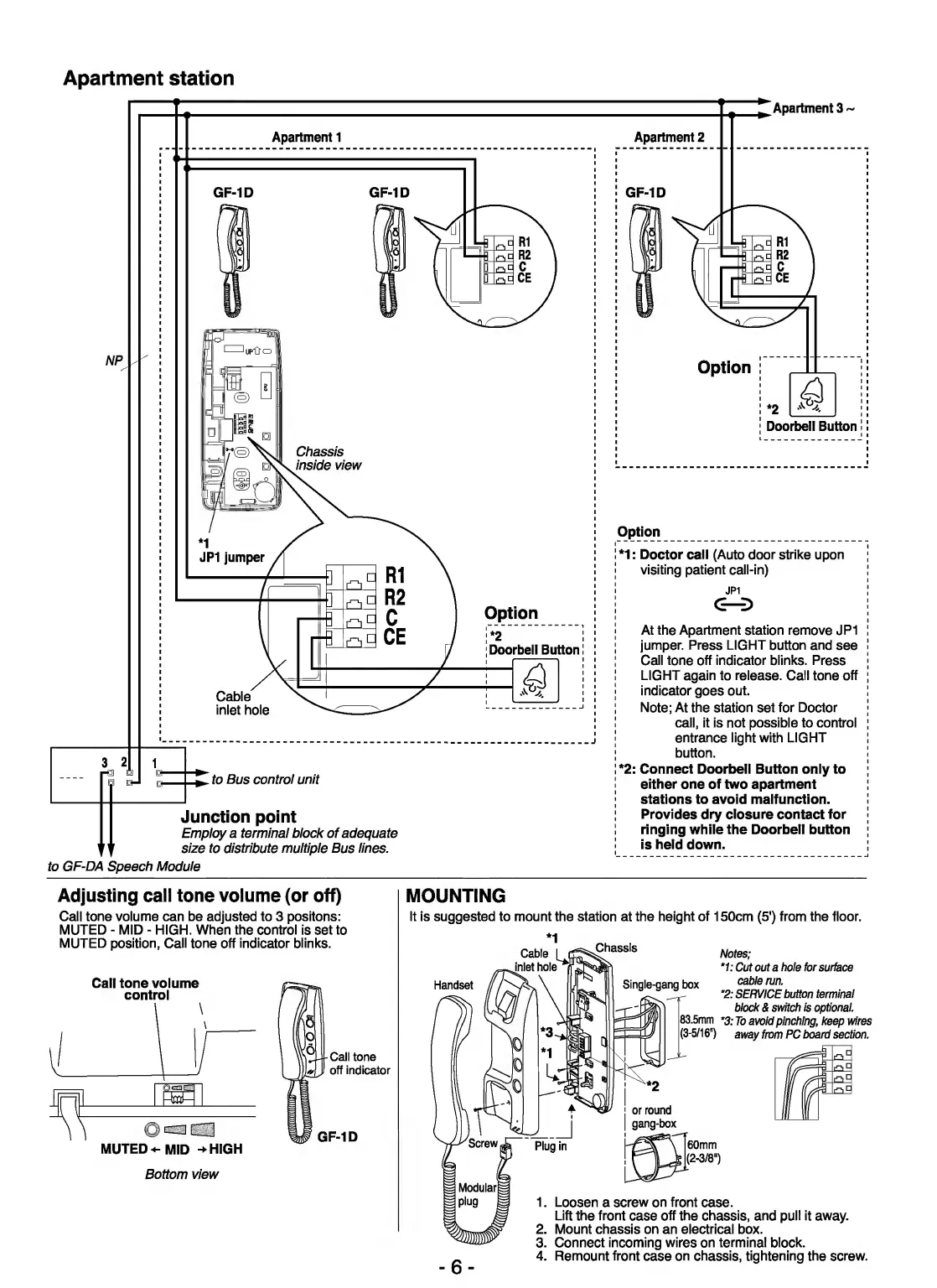

Apartment station
Junction point
Employ a terminal block of adequate
tt size to distribute multiple Bus lines,
to GF-DA Speech Module
Option
&
Doorbell Button
Option
*1: Doctor call (Auto door strike upon
visiting patient call-in)
jpi
At the Apartment station remove JPI
jumper. Press LIGHT button and see
Call tone off indicator blinks. Press
LIGHT again to release. Call tone off
indicator goes out.
Note; At the station set for Doctor
call, it is not possible to control
entrance light with LIGHT
button.
*2: Connect Doorbell Button only to
either one of two apartment
stations to avoid malfunction.
Provides dry closure contact for
ringing while the Doorbell button
is held down.
Adjusting call tone volume (or off)
Call tone volume can be adjusted to 3 positons:
MUTED - MID - HIGH. When the control is set to
MUTED position, Call tone off indicator blinks.
Call tone volume
control
MUTED<- MID - ► H I G H
Bottom view
MOUNTING
It is suggested to mount the station at the height of 150cm (5') from the floor.
Handset
Chassis
Single-gang box
83.5mm
(3-5/16")
Notes;
*1: Cut out a hole for surface
cable run.
*2: SERVICE button terminal
block & switch is optional.
*3: To avoid pinching, keep wires
away from PC board section.
6 -
60mm
(2-3/8")
1. Loosen a screw on front case.
Lift the front case off the chassis, and pull it away.
2. Mount chassis on an electrical box.
3. Connect incoming wires on terminal block.
4. Remount front case on chassis, tightening the screw.
