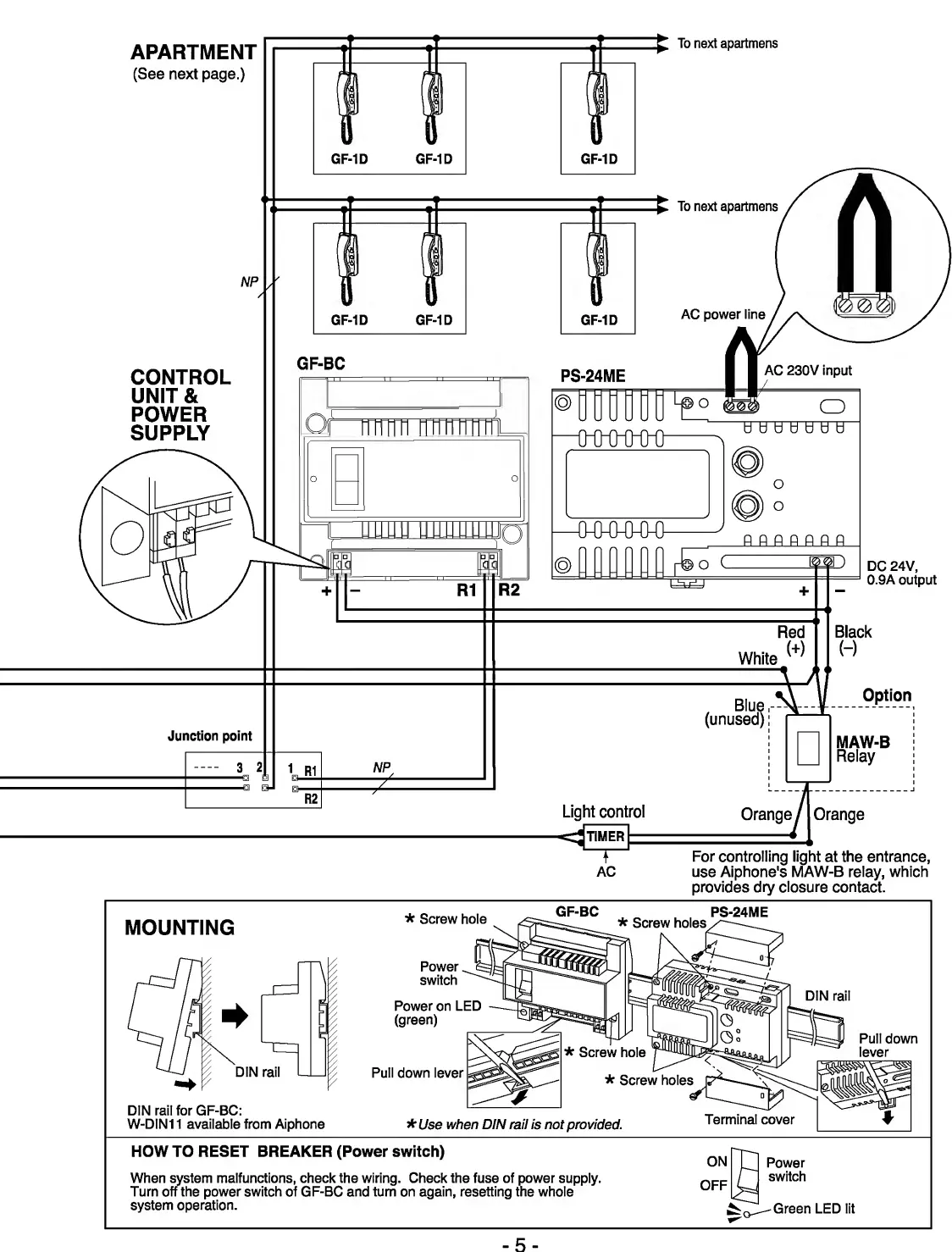

Aiphone GF-BC User Manual

APARTMENT
(See next page.)
To next apartmens
GF-1D GF-1D
CONTROL
UNIT &
POWER
SUPPLY
GF-1D
GF-BC
‘If—
+ ■ -
R1
Junction point
K 2 I Ui
MOUNTING
* Screw hole
Power on LED
(green)
DIN rail
DIN rail for GF-BC:
W-DIN11 available from Aiphone *Use when DIN rail is not provided.
HOW TO RESET BREAKER (Power switch)
When system malfunctions, check the wiring. Check the fuse of power supply.
Turn off the power switch of GF-BC and turn on again, resetting the whole
system operation.
Pull down lever
PS-24ME
Light control
timer 1
To next apartmens
AC power line
AC 230V input
' o
o
+ -
Red Black
White (+)
DC 24V,
0.9A output
Blue
(unused)
^ y Option
ied): p—
PI MAW-B
] |_| Relay
Orang e j Orange
For controlling light at the entrance,
use Aiphone's MAW-B relay, which
provides dry closure contact.
GF-BC PS-24ME
* Screw holes
* Screw hole
Pull down
lever
* Screw holes
Terminal cover
Green LED lit
