6 | IX Series Quick Start Programming Guide
Step 3: Association
Programming a New System
Manual
Manual Association allows the selection of a station by MAC address to pair with a station of the same type from the top
Station Setting List and the Station List below it. This method is only recommended for stations that have already been
deployed and their MAC Addresses noted. If IX-SOFT is installed on the programming PC, it must be closed to search
for and associate physical stations. Refer to the notes below for steps on searching and associating IX-SOFT.
IX-SOFT: Ensure that the IX-SOFT application is installed and open on all PCs before continuing. Once all instances of
IX-SOFT are installed and open, place a check mark next to Search for IX-SOFT on this PC (found above the Station List) and
click
Station Search
to search again. Click
Apply
to associate IX-SOFT in the same way as the physical stations.

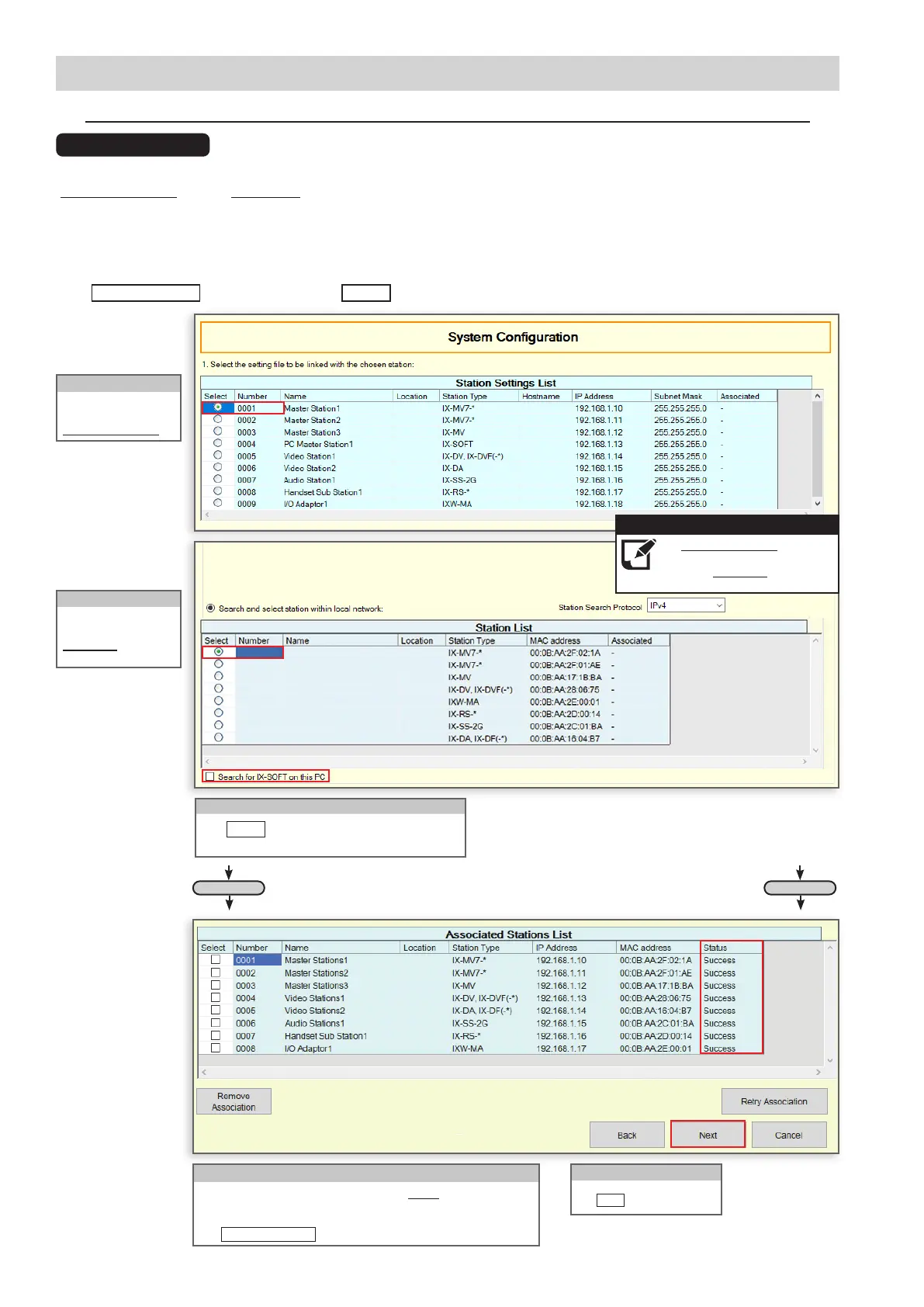

Select
Select a discovered
station from the
Station List to associate
to.
Associate
Click
Apply
to associate the selected station with the
selected le. Repeat until all stations are associated.
Select
Select a station
conguration from the
Station Settings List.
Scroll DownScroll Down
The Station Settings List is the list
of stations created by the previous
steps. The Station List is the list of
stations found on the network.
Note:
Conrming Status
Scroll down and conrm each station in the Status column says
Success. If any status shows as Failed, conrm their network
connection and refer to their status light, then select the station and
click Retry Association .
If all stations show Success,
click Next .
Continue
To Next Page
