Aiphone IX SERIES Quick Start Programming Guide

5

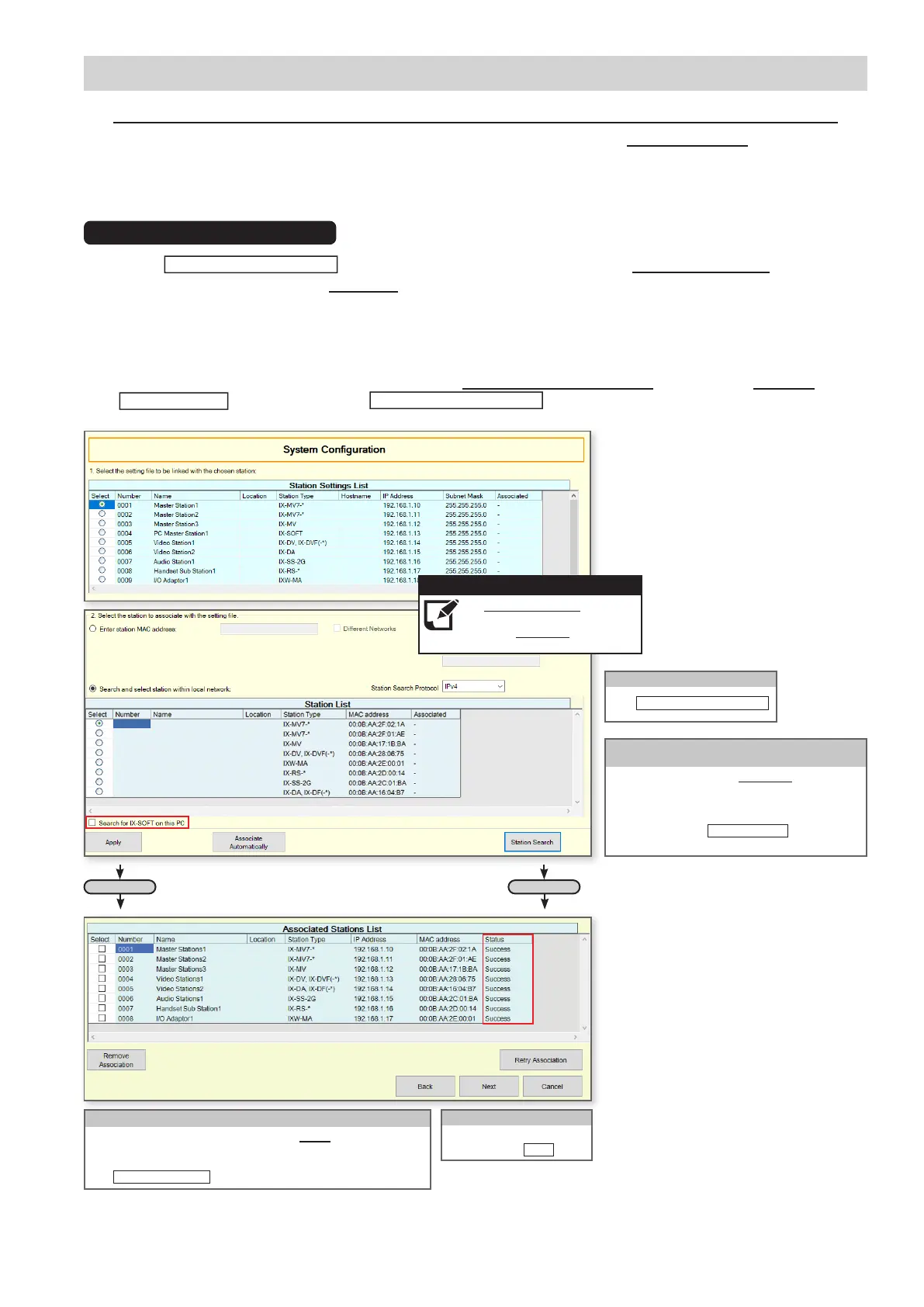

Step 3: Association
Programming a New System
Automatic (Recommended)
Scroll Down
The association process is where the station information created in the previous steps (Station Setting List) is associated with
a station found on the network (Station List). Choose one of two methods, Automatic (recommended) or Manual.
Clicking the
Associate Automatically
button will pair station congurations from the Station Settings List to physical
stations of the same type found on the Station List below. If IX-SOFT is installed on the programming PC, it must be
closed to search for and associate physical stations. Refer to the notes below for steps on searching and associating IX-
SOFT.
IX-SOFT: Ensure that the IX-SOFT application is installed and open on all PCs before continuing. Once all instances of
IX-SOFT are installed and open, place a check mark next to Search for IX-SOFT on this PC (foundbelowtheStation List) and
click
Station Search
to search again. Click
Associate Automatically
a nal time to associate IX-SOFT.
Skip to Page 7 "Setting File Upload"
Scroll Down
Click
Associate Automatically
.
Associate
Station List
Stations not shown on the Station List cannot
be found by Support Tool. Verify their physical
connection, that they have power (PoE), and refer
to Page 2 for more information as to why they may
not be shown. Click
Station Search
to search the
network again.
When all stations show
Success, click Next .
Continue
The Station Settings List is the list
of stations created by the previous
steps. The Station List is the list of
stations found on the network.
Note:
Once associated, the station will receive its Station Name and network information after a short power cycle, but a nal upload
of the setting le will be needed before the stations are functional.
Conrming Status
Scroll down and conrm each station in the Status column says
Success. If any status shows as Failed, conrm their network
connection and refer to their status light, then select the station and
click Retry Association .
